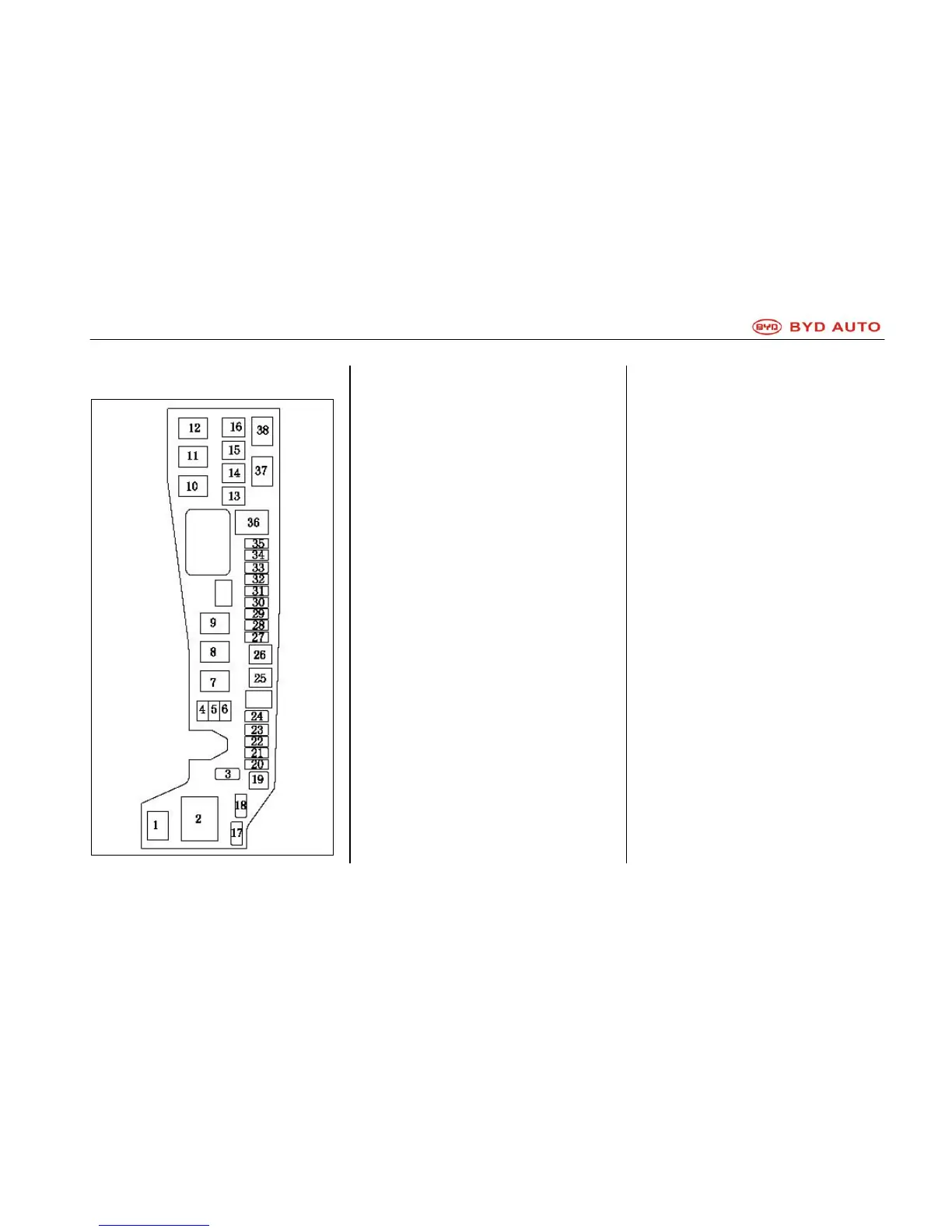

Fuse and Relay Engine Compartment
Relay:
1. A/C relay magnet clutch
2. Front headlight
7. No. 3 fan
8. Reserved
9. Electric horn
10. No. 2 fan
11. Reserved
12. No. 1 fan
37. Reserved
38. Electric fuel Injection main relay
Fuse:
3. Spare fuse (10A)
4. Spare fuse (15A)
5. Spare fuse (20A)
6. Spare fuse (25A)
13. Reserved
14. Electronic fan (30A)
15. Reserved
16. ABS (60A)
17. Spare fuse (30A)
18. Spare fuse (7.5A)
19. Puller
20. Left high beam (10A)
21. Right high beam (10A)
22. Right low beam (10A)
23. Left low beam (10A)
24. Reserved
25. Reserved
26. Headlight fuse (40A)
27. Reserved
28. EFI (15A) -MT20U/2 or (30A)
-M7.9.7.1
29. Interior light (15A)
30. Ignition switch No. 2 power supply
(30A)
31. Reserved
32. Electric horn (10A)
33. Warning light (10A)
34. Reserved
35. Reserved
36. Main power supply (100A)
