If the battery is connected in reverse, the output of the controller will have the same
polarity as the battery. Please do not connect any load to the controller at this time,
otherwise the load and the controller will be damaged.
As shown in the figure, correctly connect the solar panel and the controller. If the
connection is successful and there is sufficient sunlight, the LCD will display the sun's
graphic and the arrow from the sun to the battery will be displayed.
The voltage of the solar panel in the sun is very high, and the high voltage can cause
injury or damage the controller. As shown in the figure, the load is correctly connected
to the controller. In the 48V system, the reverse connection of the solar panel will
destroy the solar charge controller.
In order to avoid the load voltage damage, please use the button to approach the output
of the controller first, and then connect the load to the controller. The controller does
not provide load reverse connection protection please be careful, the load reverse
connection will damage the bulb.
About the connection between the solar system and the ground
Please note that the negative pole of the solar charge controller battery is connected to
the shell, which can be used for the negative-to-ground connection system of the device.
Warning: For some equipment positive-to-ground connection systems, such as solar
communication systems and portable solar systems, please do not connect the
equipment ground wire to the control system casing directly at this time, otherwise it
will cause a short circuit.
Operation and instructions
Main interface

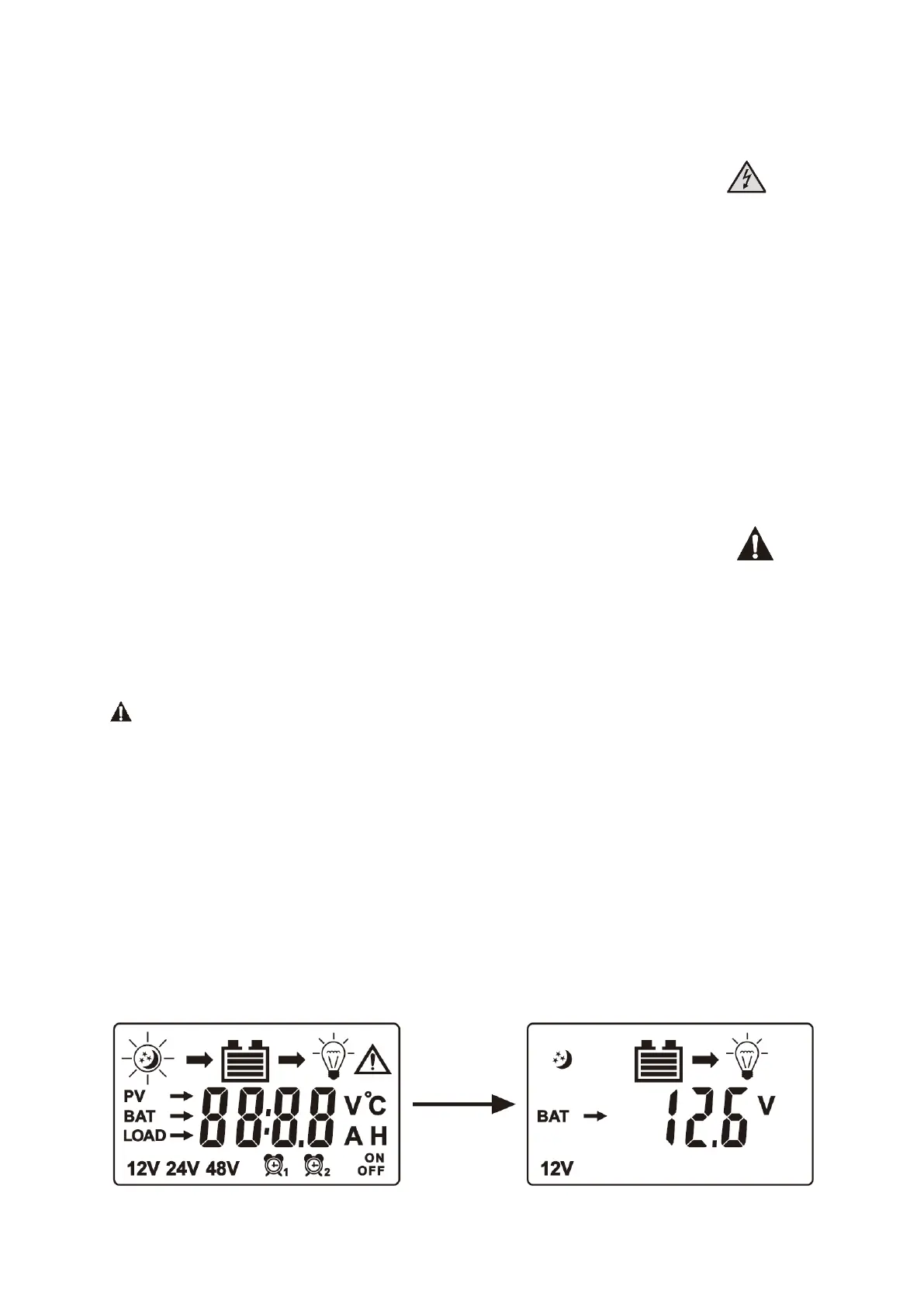

After the controller is powered on, there will be a 1s initialization interface, enter the
main interface.
