7

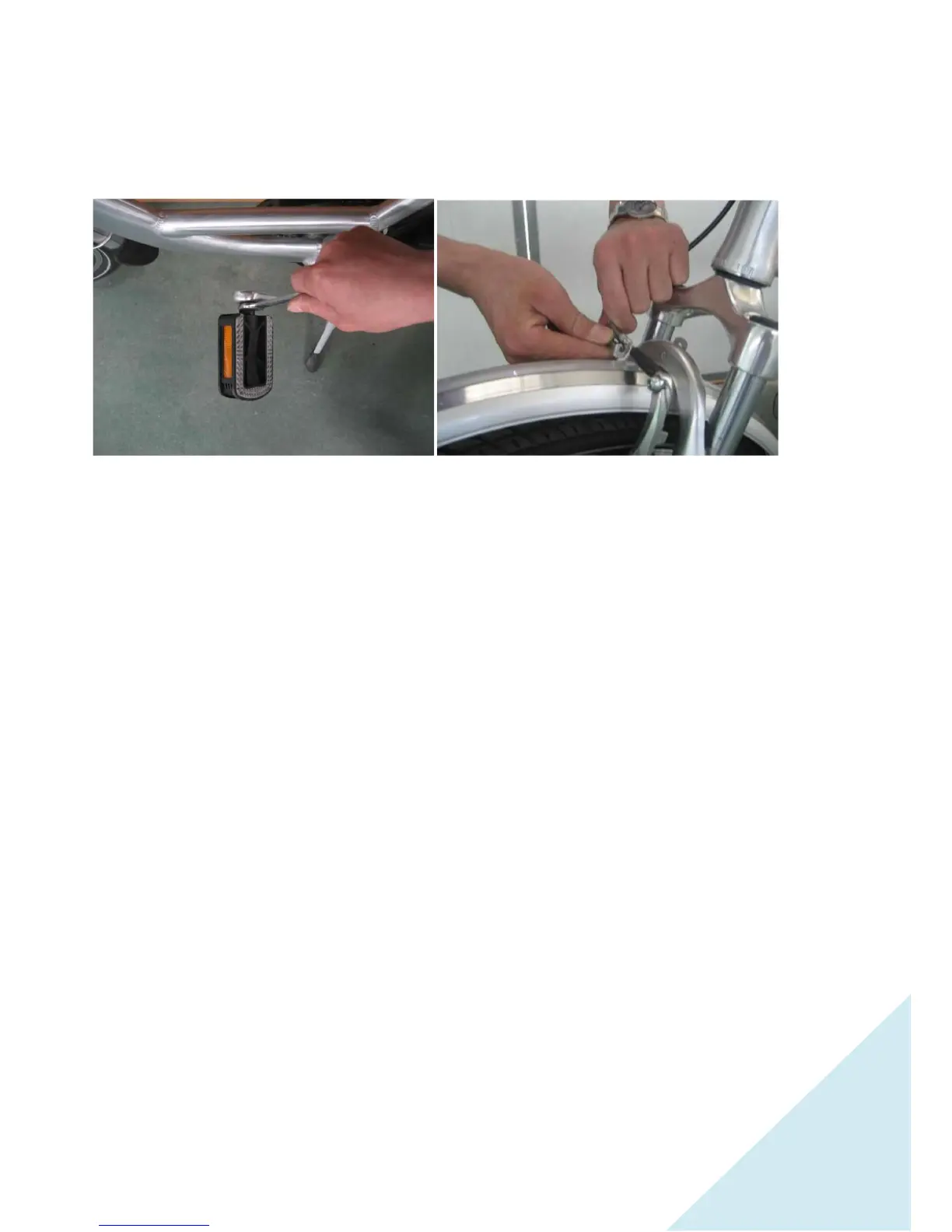

Install Pedals and Tighten Crank.
Use a small amount of grease on the shaft before installing. Right and left pedals are marked because the thread differs on each.
Tighten with the pedal spanner or 15mm spanner. Remember bicycle pedals tighten in a clock wise direction.
Remove Plastic chrome cap on the crank and tighten with 14mm socket. Both Left and right-hand sides.
Front Brake Set Up
V-Type brake. Clip Cable Guide through black support holder as shown. Loosen the 5 mm Allen key cable
holder and pull the cable through until the pads are just touching the rim. Ensure you have removed the rubber
band from the lever. Adjust as necessary, so brake shoes are square with wheel surface and are not rubbing
on wheel during rotation. Around 1-2 mm clearance is ideal.
