C-TEC QT601-2 Guide

Approved Document No: DNSQ100101 Rev 6 • Page 13 of 16

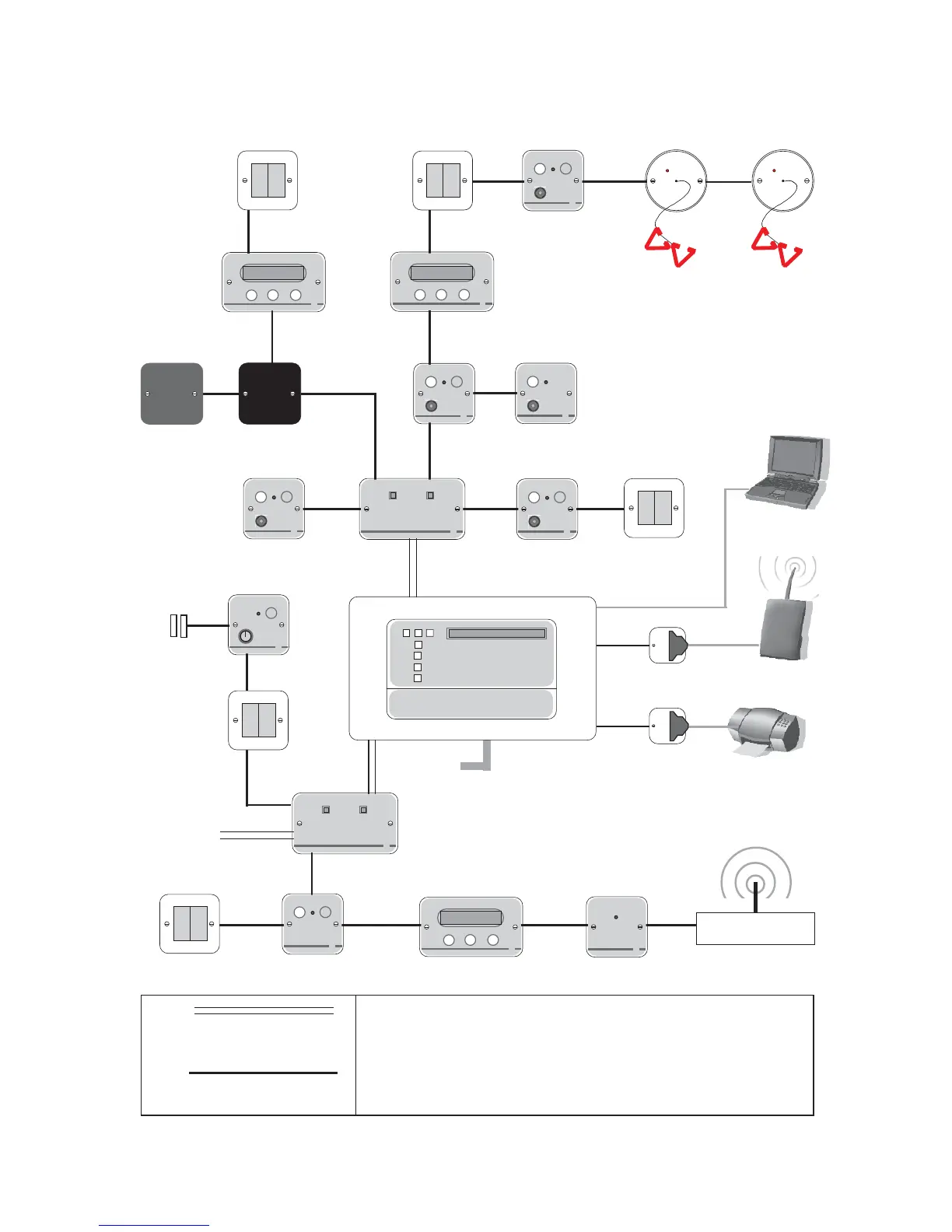

EXAMPLE WIRING OVERVIEW
QT601-2
QT606
QT604
door
contacts
QT422RX
QT421QT608C
QT609
QT603
to next
QT603
QT603 QT606QT602QT602
QT602 QT602D
QT608C
QT608C
Max. 3 x QT602Ds
per master call point,
ceiling receiver or
monitoring point
Max. 3 x QT607s
per master call point
QT606A
Max. 32 x
QT606As
per system
QT606 QT602 QT607 QT607
QT302RXQT302RXS
SPINE
100m = 1.0mm
2
twin and earth
150m = 1.5mm
2
twin and earth
250m = 2.5mm
2
twin and earth
LIMB
40m = 4 core stranded alarm cable
60m = 8 core stranded alarm cable
Max. 3 x
QT302RXs
per master
ceiling
receiver
A maximum of 10 network
devices can be connected to
each of the QT603s 6 outputs
240V a.c.
QT600P Printer Kit
(wall socket, lead & pre-tested printer)
QT600S Wall socket
QT601-2 Quantec controller
QT602 Master call point (with remote)
QT603 Network splitter
QT604 Monitoring point
QT609 Master call point (no remote)
QT606 Slave overdoor light
QT606A Addressable overdoor light
QT606
QT607 Ceiling pull
QT608C Display
QT302RX Master ceiling receiver
QT302RXS Slave ceiling receiver
QT421 Radio ‘heartbeat’ plate
QT422RX Radio receiver
QT412RXA Dual action transmitter
Other devices are available
DP874QA Radio Paging Transmitter
(wall socket, lead & transmitter)
Programming
PC
