REASSEMBLY OF THE COMPONENTS
Pic. 43
Pic. 42
CORRECT INCORRECT

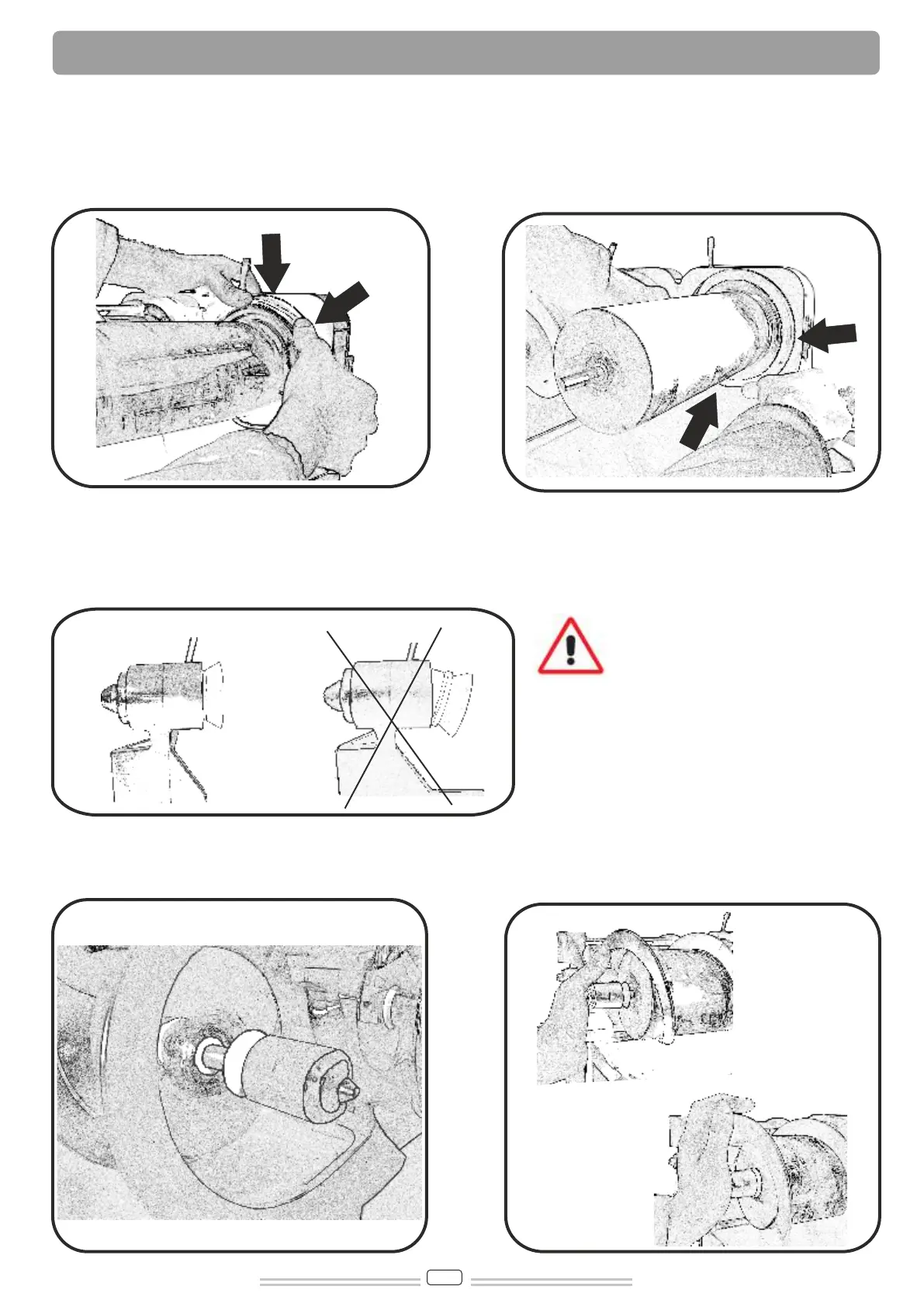

Reassembly of the parts removed during the cleaning.
Before reassebling of parts, clean the evaporapor tube and drip trays & grids without using abrasive
cleaners. Before reassemblyng the bowl gasket rinse it with water in order to facilitate the assembly of
the bowl.
Insert the spiral blade by pushing it gently and deeply as indicated in Pict. 44a & 44b. After this it is
important to lubricate the head of the spiral (see Pict. 43).
Put the bowl gasket in its position on the back part of the evaporator tube.
Once the bowl gasket is in its right position press it with your thumbs first in the lower part and then
progressively towards its upper part (marking a circle with your fingers); until it is correctly fixed in its site
(see Pict. 40 & 41).
Insert the suction cap gasket into the spiral
blade by pushing it deeply (see Pict. 42).
Lubricate with water.
Pic. 40
Pic. 41
Pic. 44a
Pic. 44b
