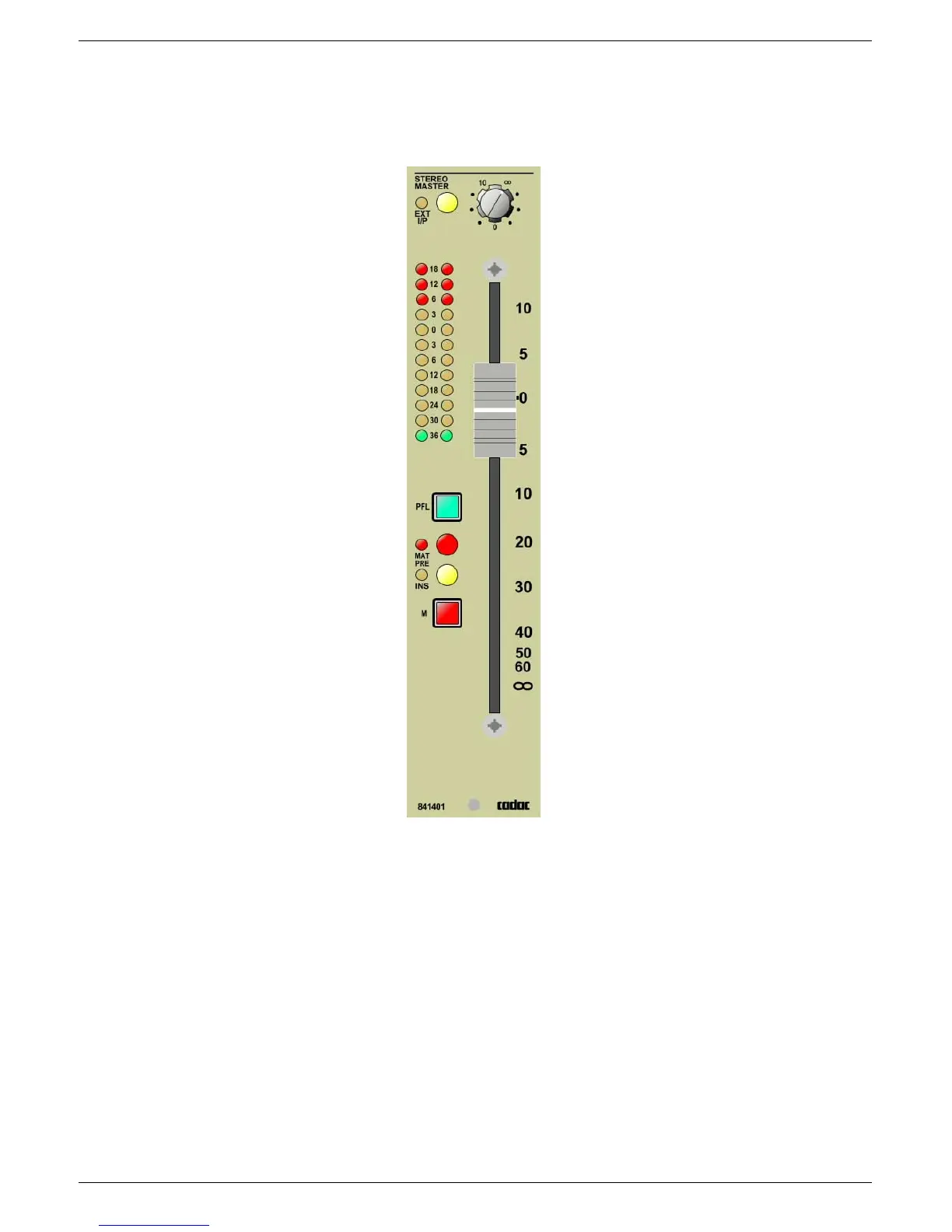

7-8 Stereo output, Comms, Osc and Talkback module 8414
S-Type Revision S2005-6
)URQW#SDQH O#6WHUHR#RX WSXW/#&R PPV/#2VF#DQG#7DONEDFN
PR GXOH #;747
:14175 ([WHUQDO#LQSXW
Press this button to route the external input source to the main stereo bus.
:14176 ([WHUQDO#LQSXW#OHYHO#FRQWURO
Use this rotary control to adjust the input level of the external input signal. Level con-
trol gain range from infinity to +10dB.
:14177 450VHJPHQW#RXWSXW#OHY H O#PHWHU
This dual 12 segment LED meter indicates the signal level of the stereo master.
Meter source is post Stereo master fader.
7.1.39 External input level control
7.1.41 Fader
7.1.38 External input
7.1.40 12-segment output level meter
7.1.42 PFL
7.1.43 Matrix Pre
7.1.44 Insert
7.1.45 Mute
