34

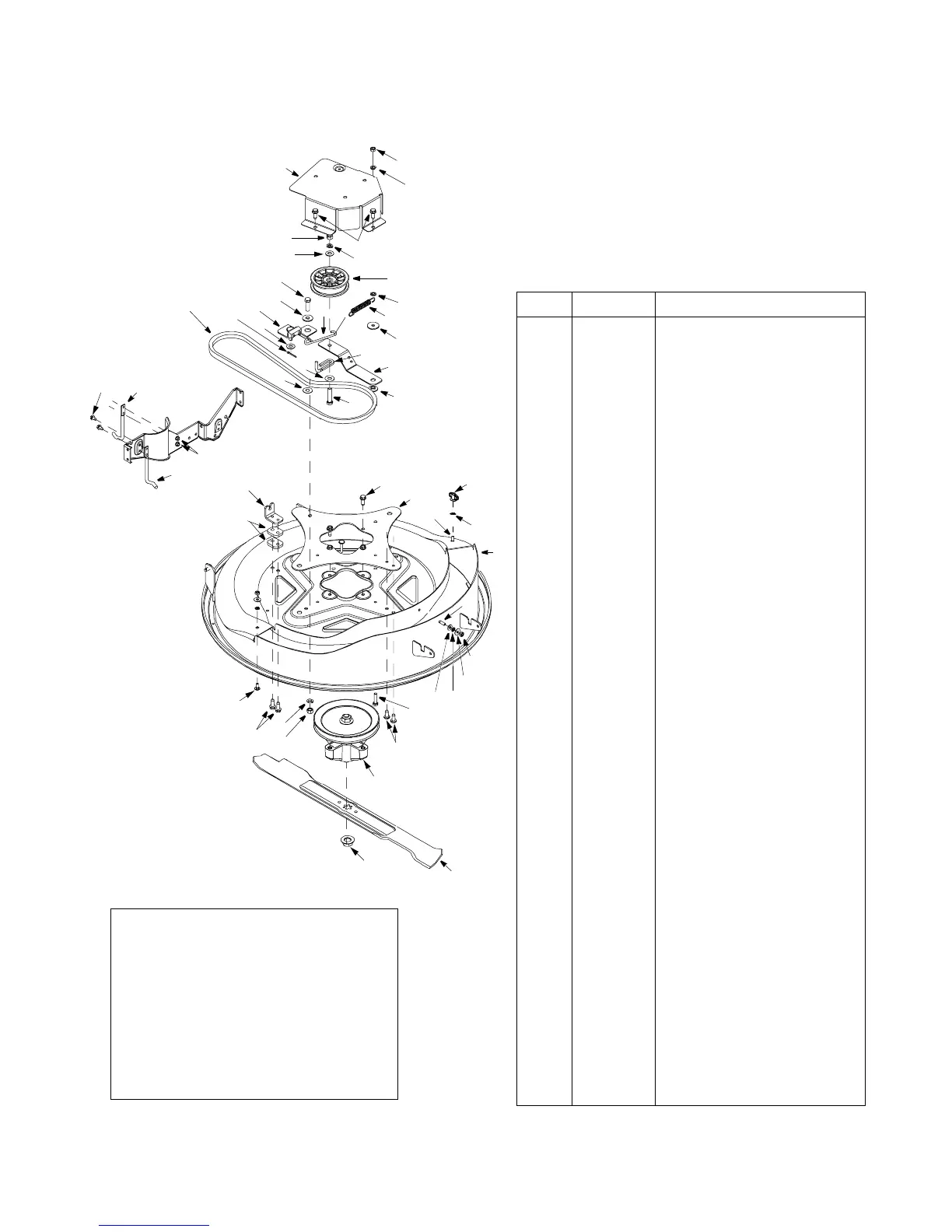

Model 1027
Ref. No. Part No. Description
1.
618-0250 Spindle Assembly
2.
683-0150D Deck Assembly
3.
683-0159 Brake Bracket Assembly
4.
683-0173 Deck Belt Cover
5.
710-0134 Carriage Screw 1/4-20 x .62”
6.
710-0191 Hex Bolt 3/8-24 x 1.25”
7.
710-0347 Hex Screw 3/8-16 x 1.75 “
8.
710-0599 Self-Tapp. Screw 1/4-20 x .5”
9.
710-0650 Self-Tapp. Screw 5/16-18 x .75”
10.
710-0672 Hex Cap Scr. 5/16-24 x 1.25”
11.
710-0932 Carriage Screw
12.
710-1611B Torx Screw 5/16-18 x .75”
13.
712-0241 Hex Nut 3/8-24
14.
712-0397 Wing Nut
15.
712-0417A Flange Nut 5/8-18
16.
712-3017 Hex Nut 3/8-16
17.
712-3057 Hex Nut 5/16-24
18.
714-0115 Cotter Pin
19.
726-0201 Speed Nut
20.
726-0233 Push Nut
21.
732-0429A Extension Spring
22.
736-0101 Flat Washer 3/8 x 1.00 x .030”
23.
736-0119 Lock Washer 5/16
24.
736-0169 Lock Washer 3/8
26.
736-0289 Bushing
27.
736-0300 Flat Washer .406 x .875 x .059”
28.
736-0343 Flat Washer .330 x 1.25 x .120”
29.
736-3020 Flat Washer
30.
738-0968 Spacer
32.
742-0651 Three-in-one Blade
33.
747-0957 Link Rod
34.
747-0972 Belt Keeper
35.
747-1172 Belt Keeper
36.
754-0754 V Belt
37.
756-0627 Flat Idler Pulley
38.
783-0463A Idler Bracket
39.
783-0529 Cable Bracket
40.
783-0569B Deck Plate
41.
783-0594 Deck Cable Plate
22
7
22
28
26
38
34
19
9
27
24
16
37
6
30
3
27
18
8
35
35
8
23
17
4
39
41
9
40
14
20
5
2
11
14
25
20
29
12
10
24
13
9
5
1
32
15
36
33
21
NOTE: For painted parts, please refer to
the list of color codes below. Please add the
applicable color code, wherever needed, to
the part number to order a replacement part.
For instance, if a part, numbered 700-xxxx,
is painted Cub Yellow, the part number to
order would be 700-xxxx-0716.
Cub Yellow: 0716
Cub Beige: 0499
Cub Blue: 0685
Powder Black: 0637
