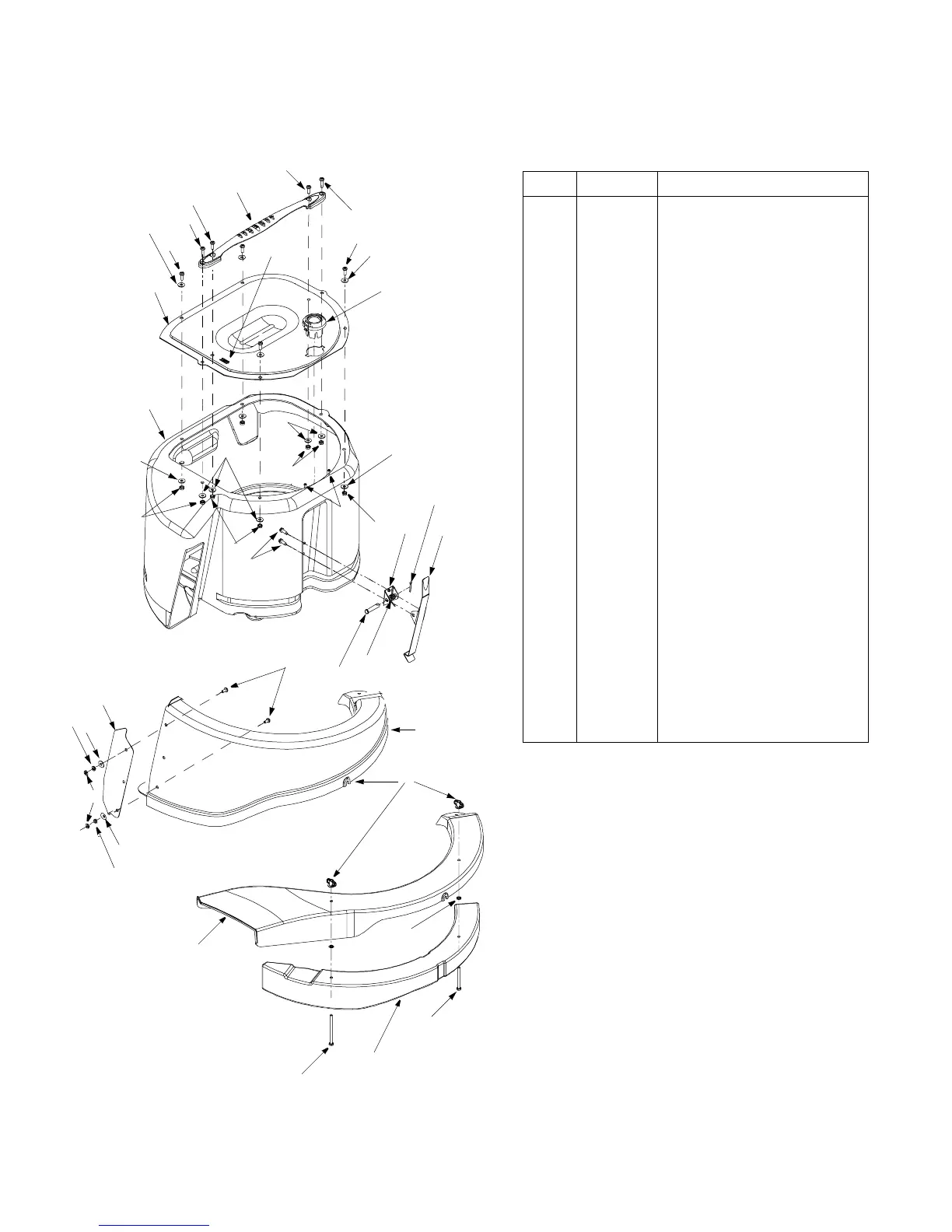

Cadet 1027 - Page 35

35
Model 1027
Ref. No. Part No. Description
1.
631-0060 Flow Indicator Assembly
2.
631-0080 Grass Bag Assembly
3.
710-0166 Machine Screw 1/4-20 x 1.0
4.
710-0286
Machine Screw 1/4-20 x 0.5”
5.
710-0456 Hex Screw #10-16 x 0.5”
6.
710-0564 Hex Screw 1/4-20 x 2.75”
7.
710-0642 Self-Tapping Screw 1/4-20 x 0.75”
8.
710-0825 Hex Screw 1/4-20 x 3.75”
9.
710-0924 Machine Screw 1/4-20 x 0.75”
10.
711-0415 Clevis Pin
11.
712-0271 Hex Sems Nut 1/4-20
12.
712-0298 Jam Nut
13.
712-0397 Wing Nut
14.
714-0115 Cotter Pin
15.
726-0271 Speed Nut
16.
731-1441 Bag Handle
17.
731-1743A Discharge Chute: Grass Bag
18.
731-1744 Side-Discharge Chute
19.
731-1745A Mulching Plug
20.
732-0839
Bag Release Lever
21.
732-0841 Torsion Spring
22.
732-0854 Clip Spring
23.
736-0173
Flat Washer
24.
736-0329
Lock Washer
25.
783-0544A Grass Bag Screen
26.
783-0575A Pivot Bracket
27.
783-0645 Deflector Plate
