Cadex TRI - Toolkit Removal; Toolkit Installation

|ENGLISH| CADEX TRI USER MANUAL
10

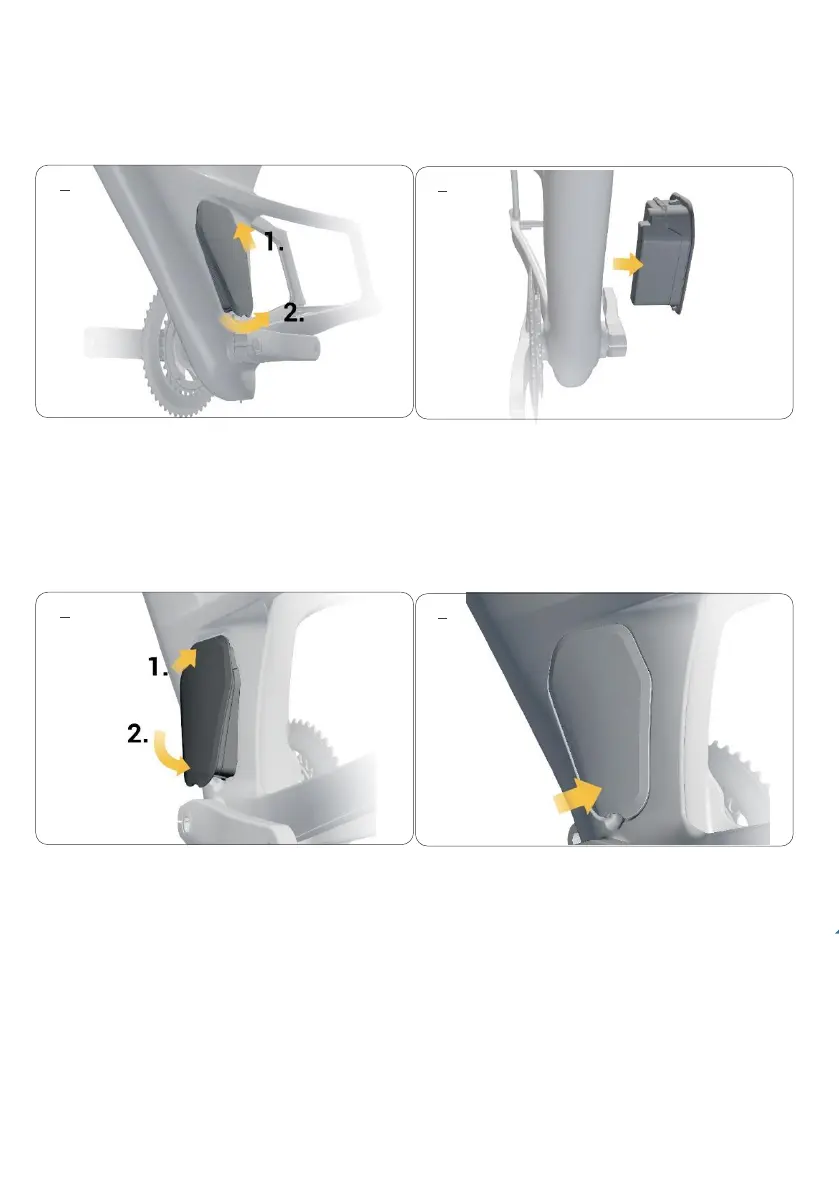

TOOLKIT REMOVAL
1. Hold the lower end firmly and push upwards (A).
2. Pivot the toolkit sideways to remove (B).
TOOLKIT INSTALLATION
1. Insert and firmly push upper latch into the frame recess (A).
2. Push tool box into the frame until it fits snugly. (B).
A
B
A
B
