6-64

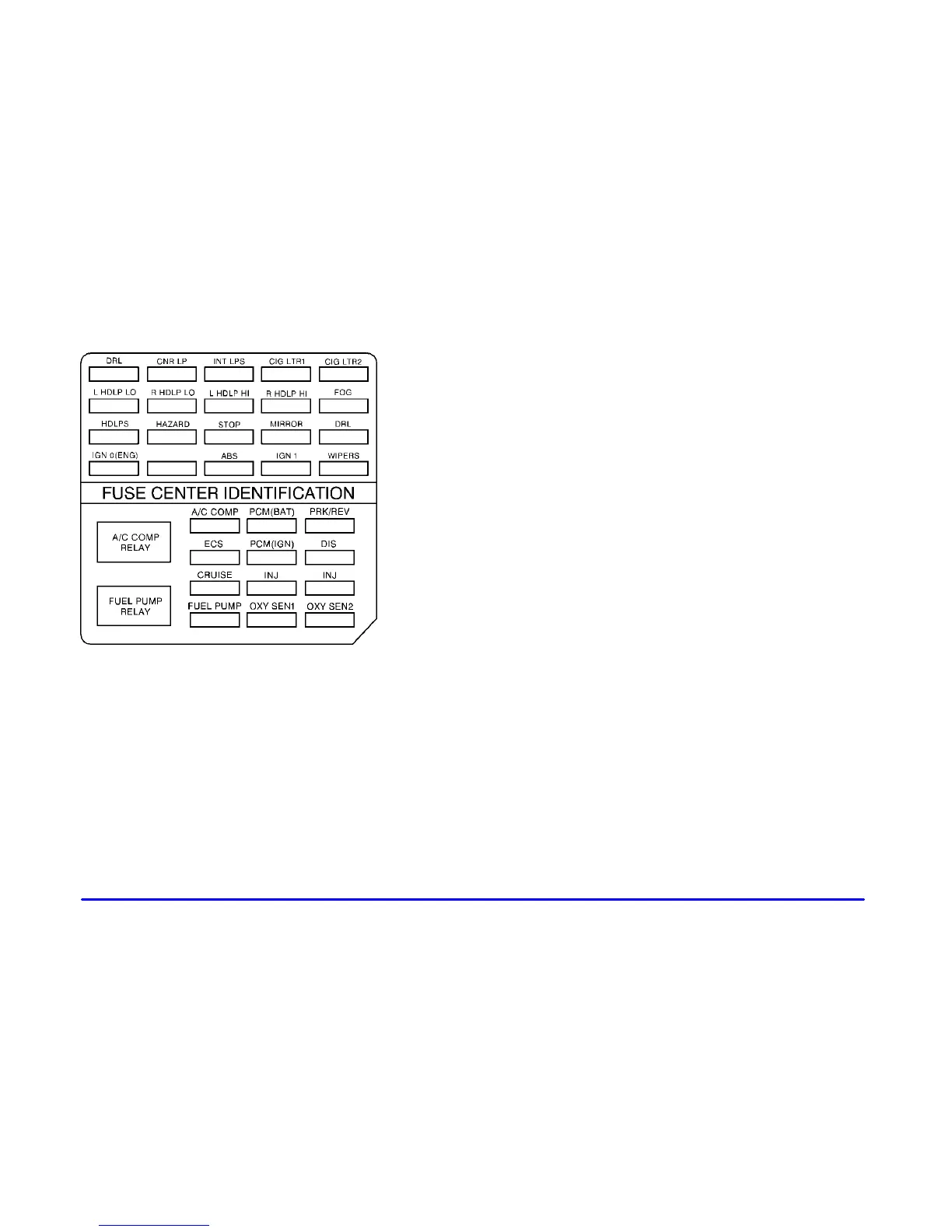

Fuse Usage
DRL Daytime Running Lamps (DRL)
CNR LPS Cornering Lamp Switch, Right and
Left Cornering Lamps, Right and
Left Position Lamp Relays (Export)
Fuse Usage
INT LPS Trunk Lamp, Courtesy Lamps, Front
Vanity Lamps, Glove Box Lamp,
Garage Door Opener, Courtesy
Lamp Relay, Front Reading Lamps,
Rear Vanity Lamps and Reading
Lamps (DeVille
Concours/d’Elegance Only)
CIG LTR1 Front Cigarette Lighter,
Rear Cigarette Lighter
(DeVille Concours Only)
CIG LTR 2 Right and Left Rear
Cigarette Lighters
L HDLP LO Left Low
-Beam Headlamp
R HDLP LO Right Low
-Beam Headlamp
L HDLP HI Left High
-Beam Headlamp
R HDLP HI Right High
-Beam Headlamp
FOG Fog Lamp Relay (DeVille Concours
Only), Right and Left Fog Lamps
(DeVille Concours Only)
