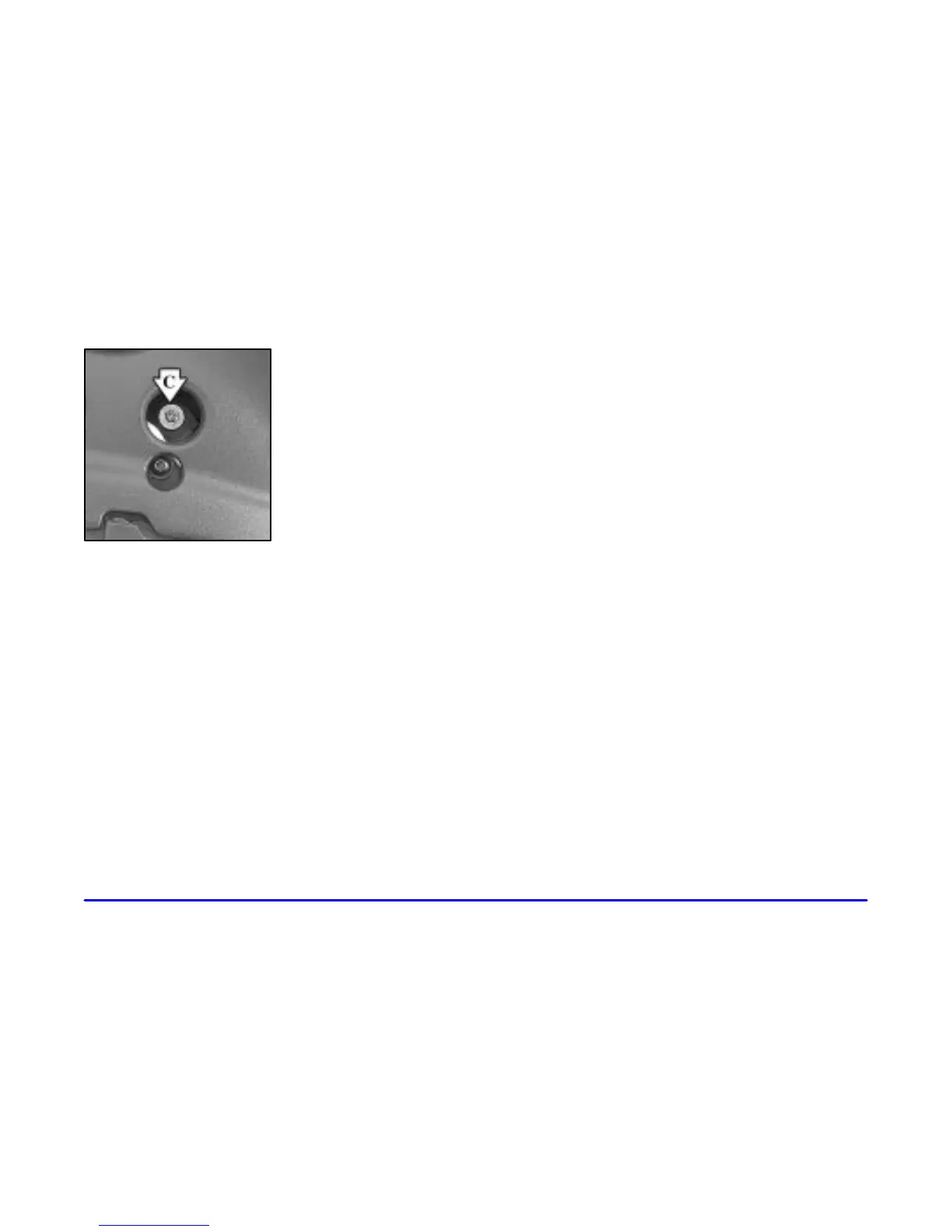

6-45
6. Repeat Steps 4
and 5 for the
opposite headlamp.
Front Cornering Lamps
1. Follow Steps 1 through 6 in “Headlamps”
described previously.
2. Disconnect the cornering lamp bulb by pulling the
bulb out of the socket. Do not twist or turn the bulb.
3. Replace cornering lamp bulb by pushing the new
bulb directly into the socket.
4. Reinstall the cornering lamp housing socket into the
headlamp assembly.
5. Reverse Steps 1 through 6 in “Headlamps”
described previously.
