Tire and Loading Information Label
A vehicle specific Tire and Loading Information label is
attached to the vehicle’s center pillar (B-pillar). With
the driver’s door open, you will find the label attached
below the door lock post (striker). The tire and
loading information label shows the number of occupant
seating positions (A), and the maximum vehicle
capacity weight (B) in kilograms and pounds.
The Tire and Loading Information label also shows the
tire size of the original equipment tires (C) and the
recommended cold tire inflation pressures (D). For more
information on tires and inflation see Tires on page 5-57
and Inflation - Tire Pressure on page 5-65.
There is also important loading information on the
Certification label. It tells you the Gross Vehicle Weight
Rating (GVWR) and the Gross Axle Weight Rating
(GAWR) for the front and rear axle; see “Certification
Label” later in this section.
If you have a Professional Vehicle, a Tire and Loading
Information label specific to your vehicle will be
provided and installed by the final body manufacturer.
The Tire and Loading Information label, should be
attached to the B-pillar of your vehicle. See the final
stage manufacturer’s manual or contact them directly.
The label shows the original tires installed on your
professional vehicle and the recommended cold
tire inflation pressures for those tires. The label also
tells you the professional vehicle’s capacity weight.

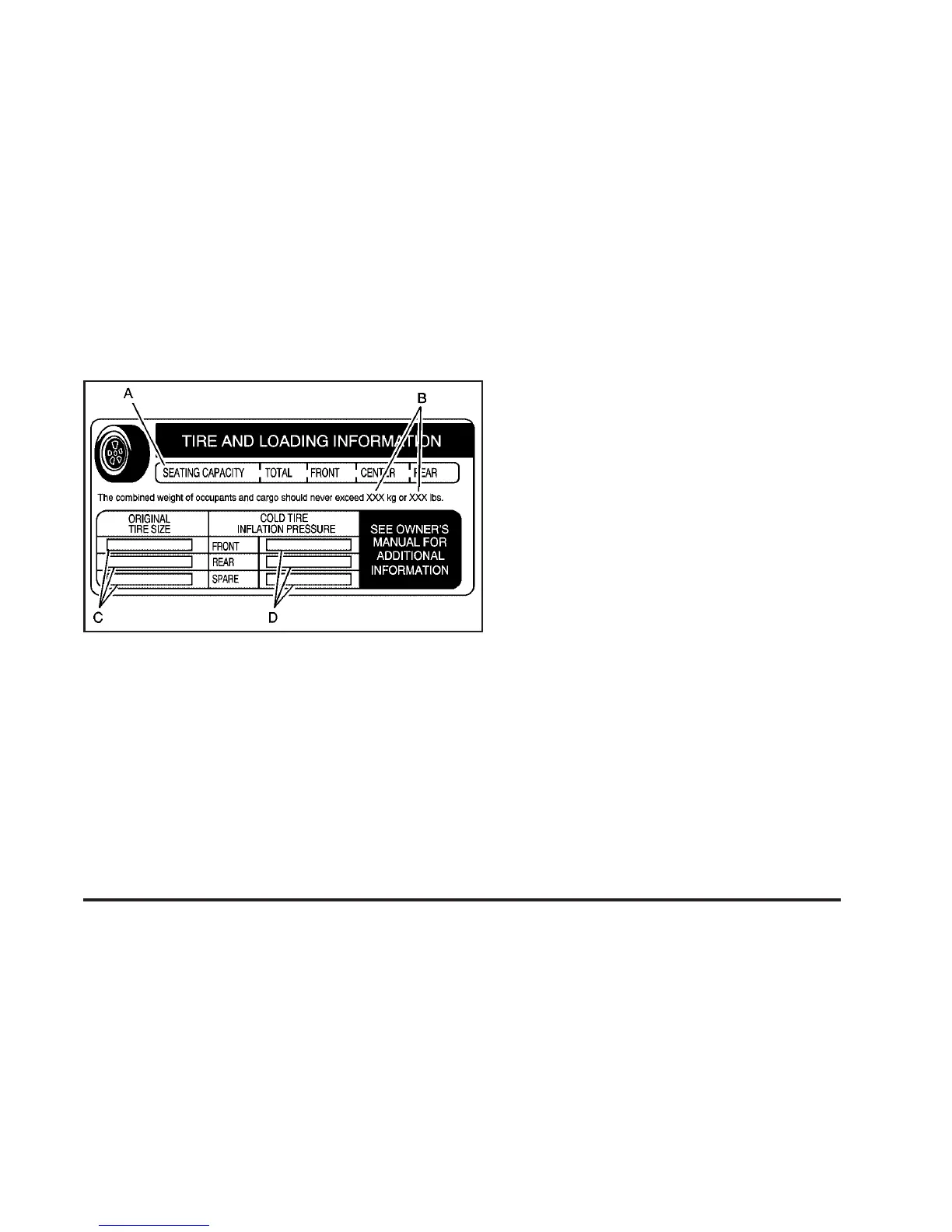

Label Example
4-31
