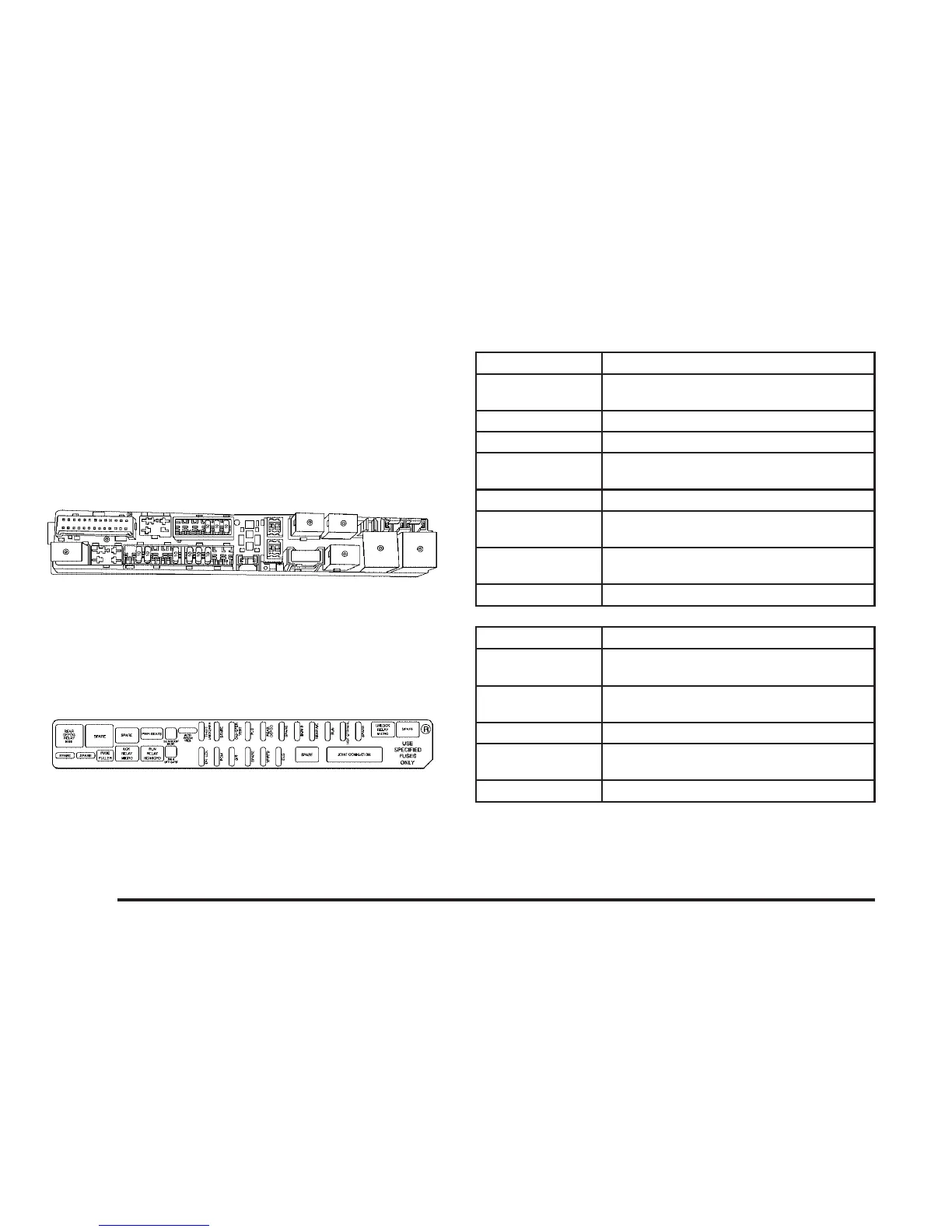

Rear Underseat Fuse Block
(Right Side)
The right side rear fuse block is located under the
rear seat on the right side of the vehicle. The carpet
must be lifted up to access the rear fuse block.
To access the fuse block, push in the two tabs
located at each end of the fuse block cover.
Then lift the cover off.
Relays Usage
REAR DEFOG
RELAY MINI
Rear Window Defogger
SPARE Spare
SPARE Spare
UNLOCK
RELAY MICRO
Rear Door Locks
SPARE Spare
LCK RELAY
MICRO
Rear Door Locks
RUN RELAY
HC MICRO
Rear Air Conditioning Blower Motor,
Climate Control Ignition
SPARE Spare
Mini Fuses Usage
WPR ISRVM
VICS
Rear Wiper Switch, Inside
Rearview Mirror
THEFT
UGDO/RFA
Garage Door Opener, Keyless
Entry System
SPARE Spare
CANISTER
VENT
Canister Vent Solenoid
PLG Power Liftgate Module
462
