36 Safety

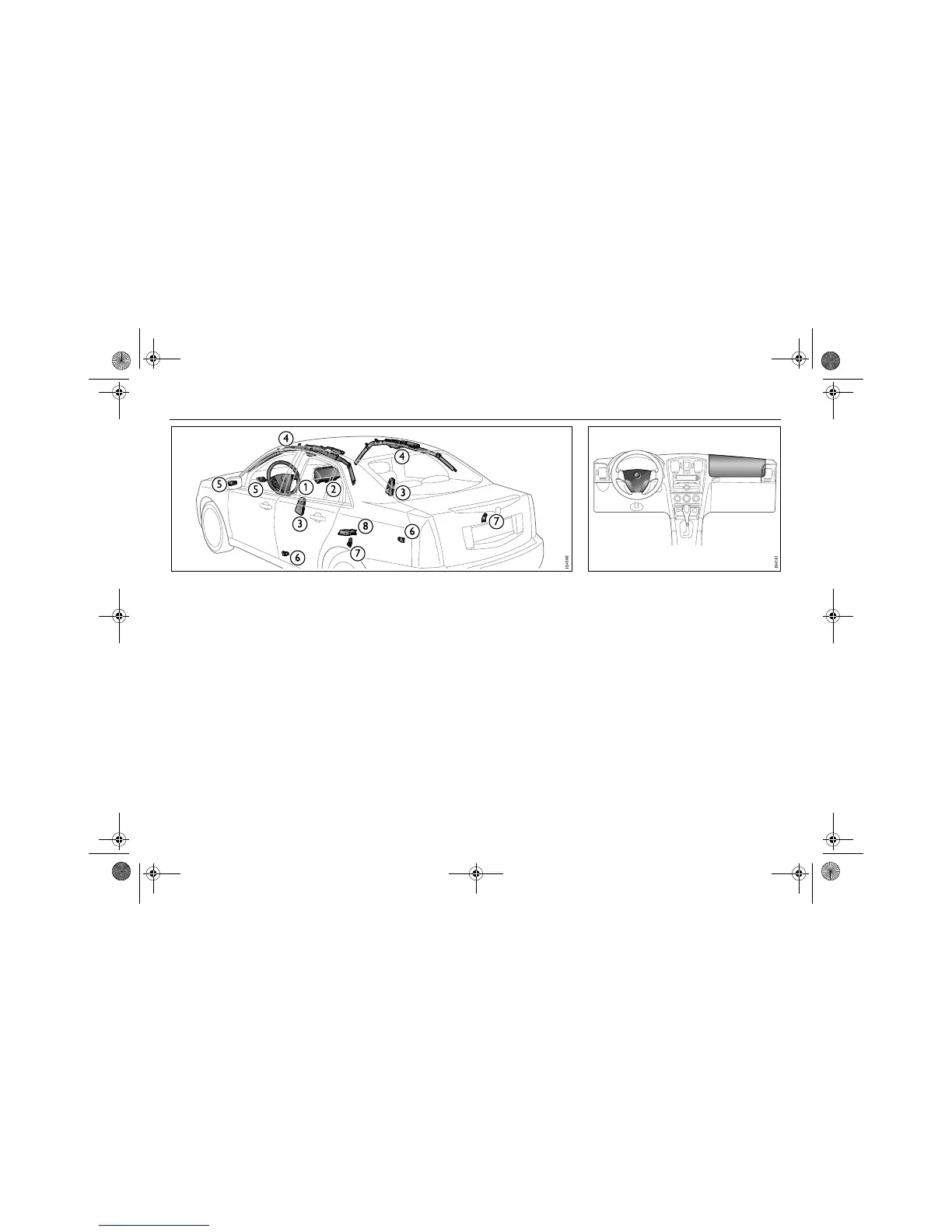

Airbag system
1 Steering wheel with integral airbag
2 Passenger airbag
3 Side airbags
4 Inflatable curtain
5 Front sensor, in front bumper
6 Side impact sensor
7 Side impact sensor
8 Electronic control module with central sensor
Accessories and other equipment must
not be fitted to the surfaces marked as
these are where the airbags inflate in the
event of a collision
