10-36 Vehicle Care
Back-Up Lamps
To replace this bulb:
1. Open the liftgate. See Liftgate
(Power) on page 2‑9 or Liftgate
(Manual) on page 2‑12 for more
information.

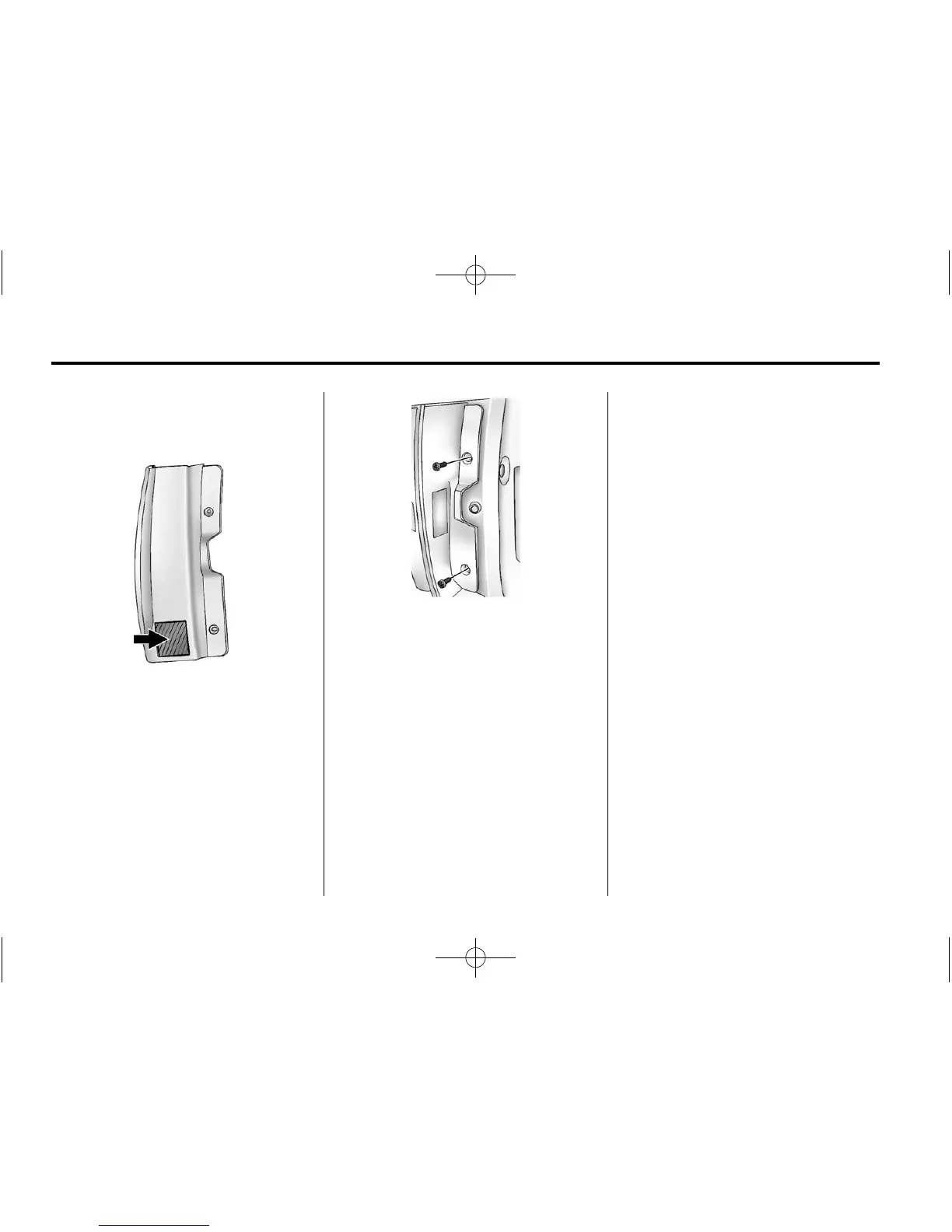

2. Remove the two screws from the
taillamp assembly.
3. Pull the taillamp assembly
rearward until the inner pins on
the taillamp assembly disengage
from the vehicle.
4. Press the release tab, if the bulb
socket has one, and turn the
socket counterclockwise to
remove it from the taillamp
assembly.
5. Pull the old bulb straight out
from the socket.
6. Press a new bulb into the
socket, insert the socket into the
taillamp assembly and turn the
socket clockwise into the
taillamp assembly until it clicks.
7. Reinstall the taillamp assembly.
When reinstalling, make sure to
line up the pins on the taillamp
assembly with the vehicle. If the
pins do not line up correctly, the
taillamp assembly will not be
able to be installed properly.
If the taillamp, stoplamp, or turn
signal need to be replaced, see your
dealer for service.
