Fuses Usage
17 Interior Lamps
18
Power Door Lock 1
(Unlock Feature)
19
Rear Seat
Entertainment
20
Ultrasonic Rear
Parking Assist, Power
Liftgate
21
Power Door Lock 1
(Lock Feature)
22
Driver Information
Center (DIC)
23 Rear Wiper
24 Cooled Seats
25
Driver Seat Module,
Remote Keyless Entry
System
26
Driver Power Door
Lock (Unlock Feature)
Circuit
Breaker
Usage
LT DR
Driver Side Power
Window Circuit
Breaker
Harness
Connector Usage
LT DR
Driver Door
Harness
Connection
BODY Harness Connector
BODY Harness Connector

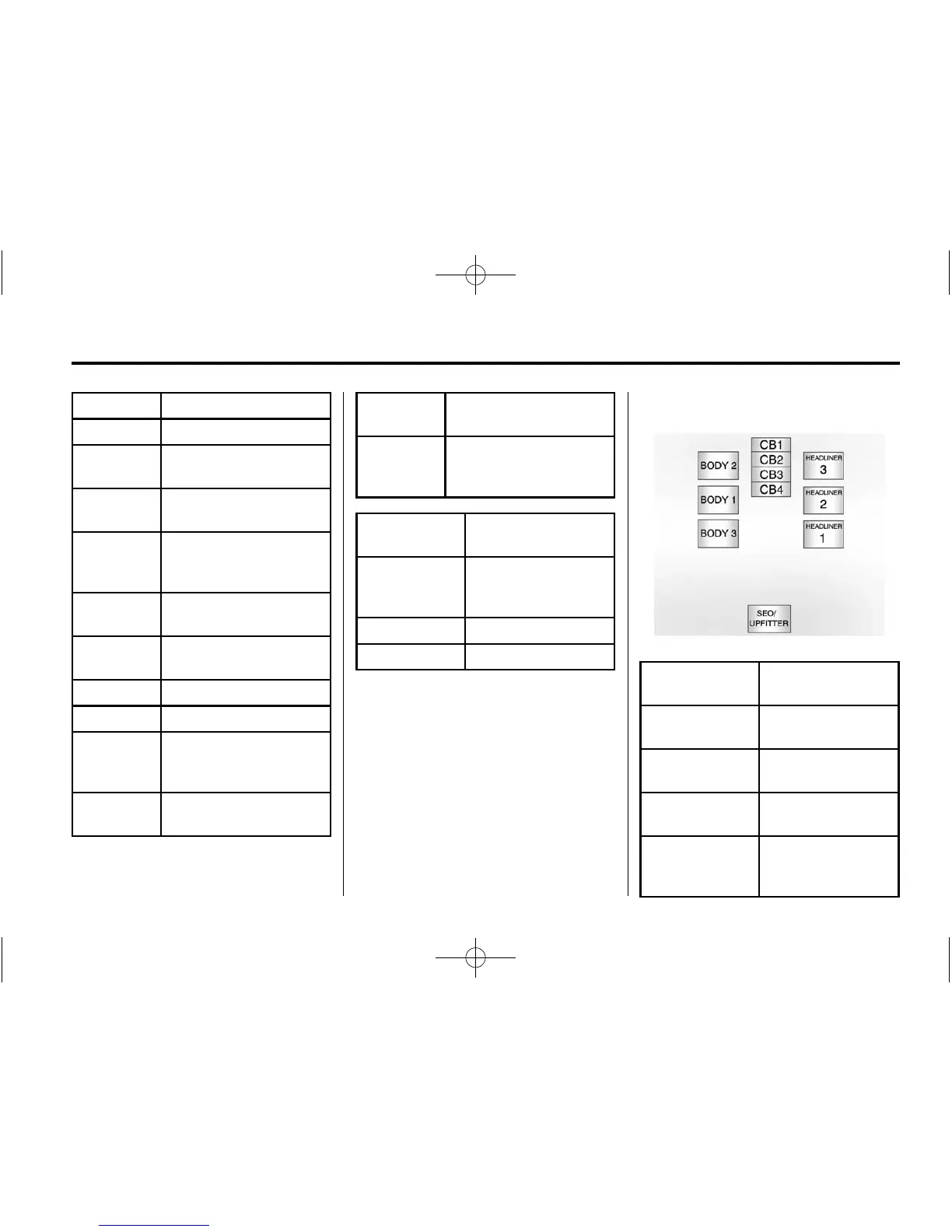

Center Instrument Panel Fuse
Block
The center instrument panel fuse
block is located underneath the
instrument panel, to the left of the
steering column.
Top View
Harness
Connector Usage
BODY 2
Body Harness
Connector 2
BODY 1
Body Harness
Connector 1
BODY 3
Body Harness
Connector 3
HEADLINER 3
Headliner
Harness
Connector 3
