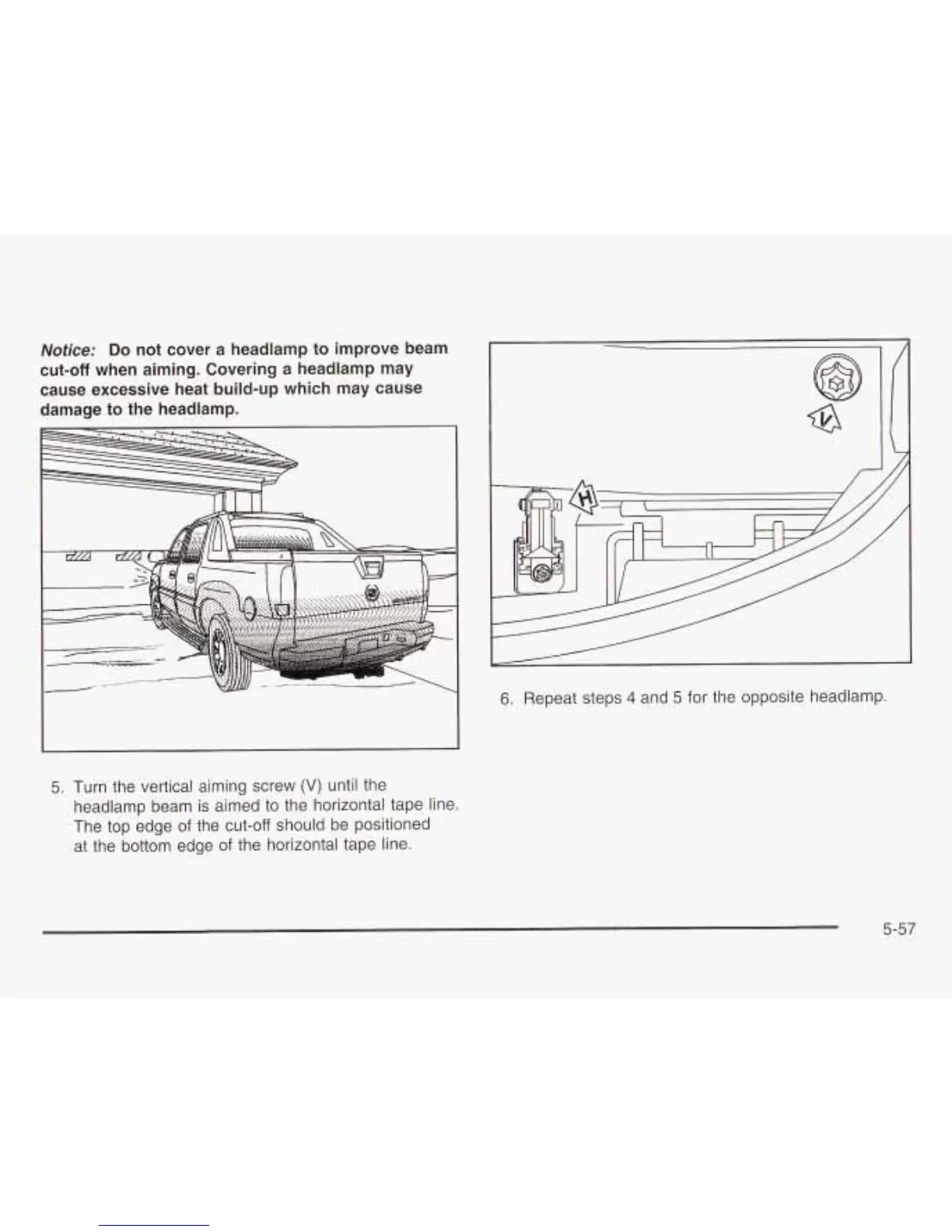

Notice:
Do
not cover a headlamp
to
improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage
to
the headlamp.
5.
Turn the vertical aiming screw
(V)
until the
headlamp beam is aimed to the horizontal tape line.
The top edge of the cut-off should be positioned
at the bottom edge of the horizontal tape line.
I,
6.
Repeat steps 4 and
5
for the opposite headlamp.
5-57
