Instrument Panel Fuse
Block

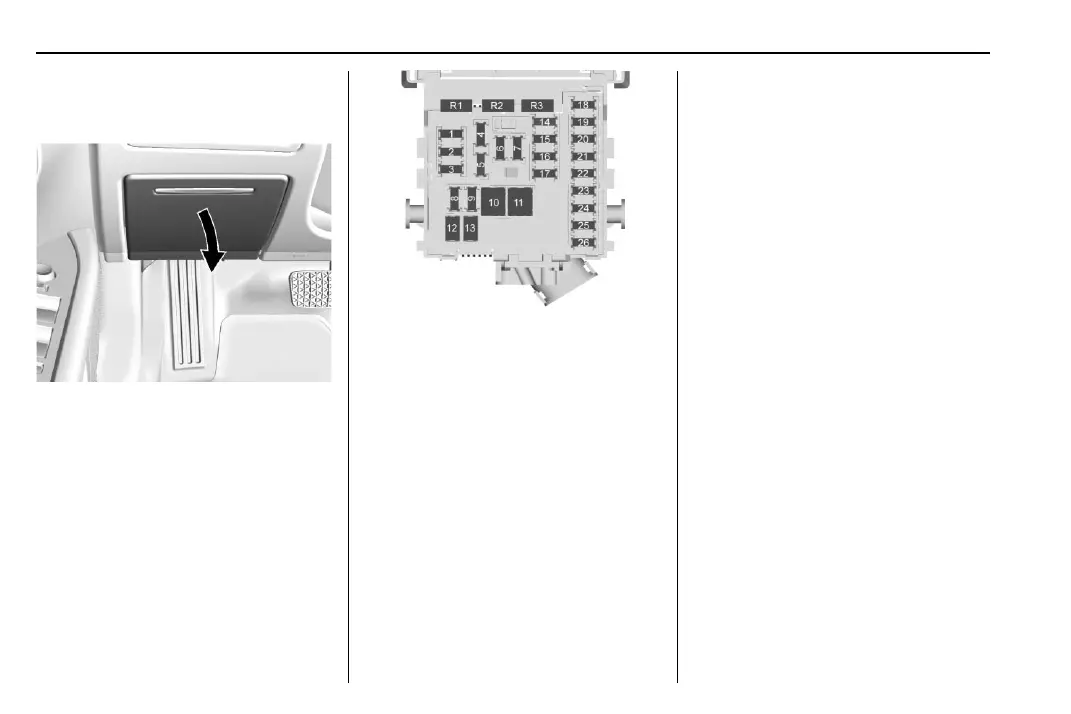

The instrument panel fuse block is in
the instrument panel, on the driver
side of the vehicle. To access the
fuses, open the fuse panel door by
pulling down at the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release it
from the hinge.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
Fuses Usage
1 Wireless charger/USB
charge module
2 Body control
module 7
3 Body control
module 5
4 Radio
5 Infotainment display/
Head-up display/
Instrument cluster
6 Power outlet 1
Fuses Usage
7 Power outlet 2
8 Body control
module 1
9 Body control
module 4
10 Body control
module 8
11 Front HVAC blower
12 Passenger seat
13 Driver seat
14 Diagnostic link
connector
15 Airbag AOS
16 Glove box
17 HVAC controller
18 Logistics
19 –
20 Telematics (OnStar)
21 CGM
22 Steering wheel
controls/Backlight
