2

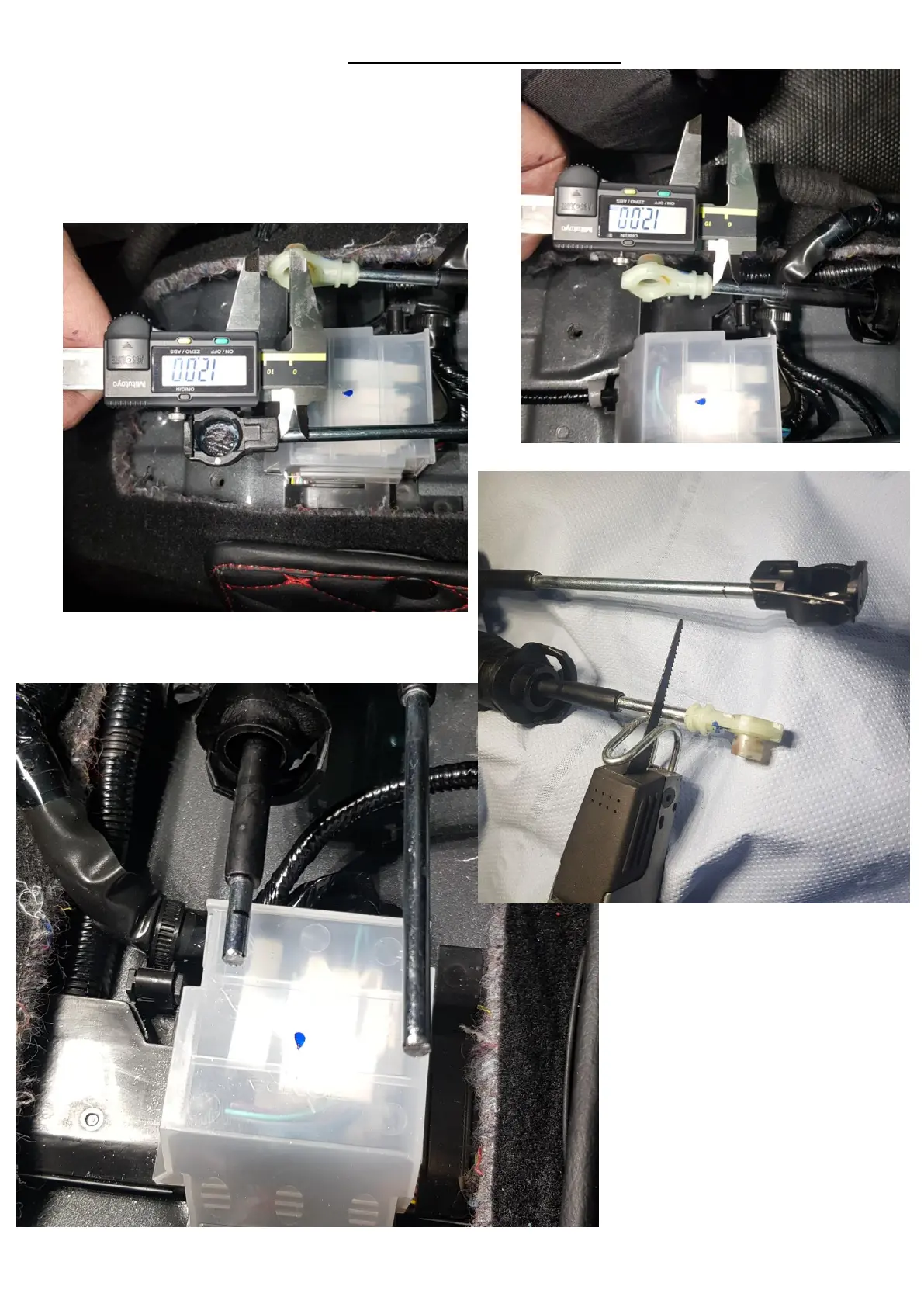

Machining the shift cables
• The original ball sockets of the shift
cables must be sawn / separated
exactly 12mm away from the plastic
part.
• Deburr the 6mm core of the shift
cables.
