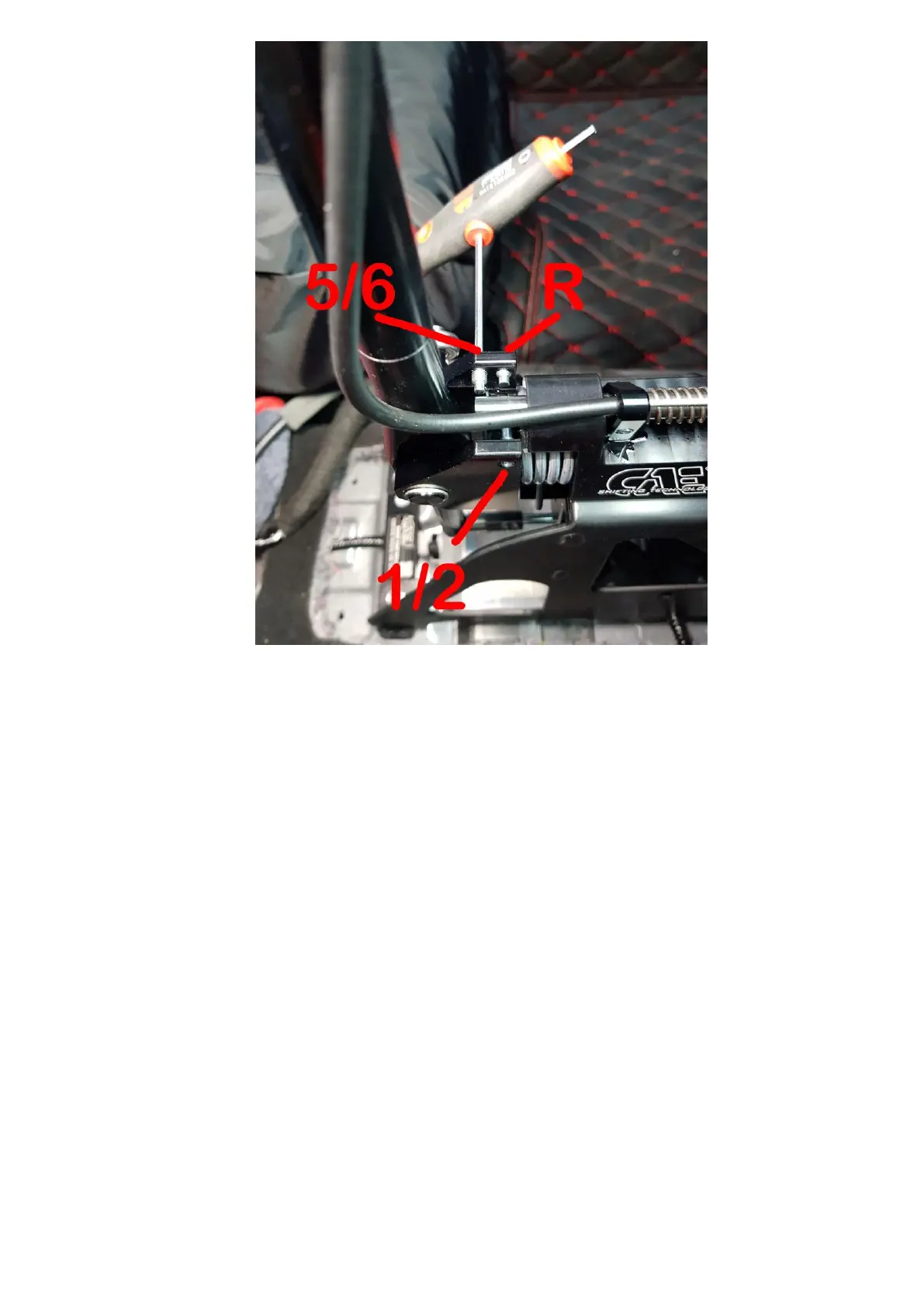

• Now use the gear lever to shift gear in level 1/2 and adjust the stop screw
until the gears in level 1/2 can be changed cleanly.
(When the gear is engaged, the screw has no contact with the bolt (approx.
0.5 mm play)
• Now use the gear lever to shift in 5
th
/ 6
th
level and screw in the stop
screw until 5
th
/ 6
th
gear can be engaged properly.
(The screw has no contact with the bolt when the gear is engaged, the
shifter largely resets in ¾)
• Operate the reverse gear locking pin by pulling and shift the gearbox to
the reverse gear level. ( rightmost )
Screw in the appropriate stop screw until the reverse gear can be engaged
properly.
(Screw has no contact with the bolt when the gear is engaged (approx.
0.5mm play)
