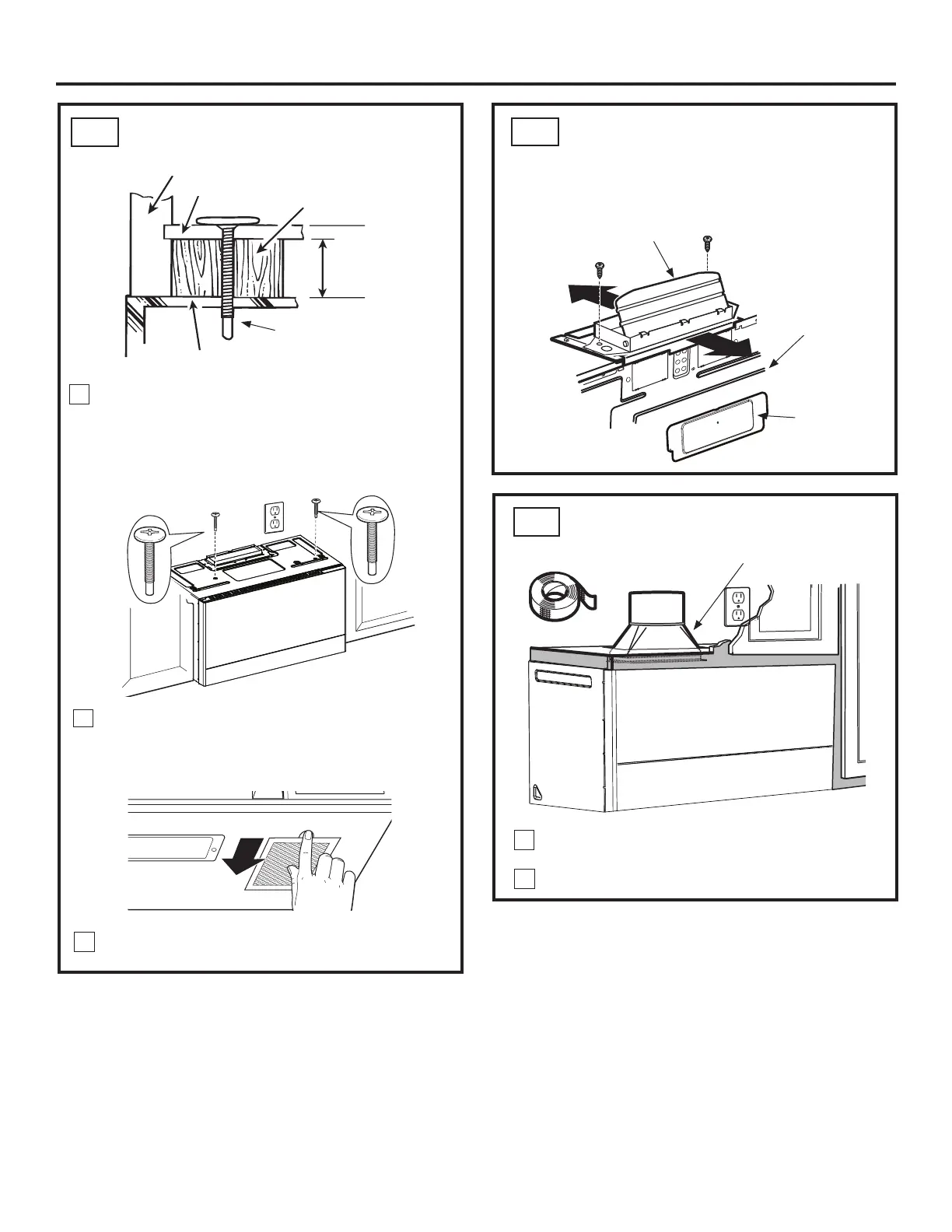

Attach the oven to the top cabinet by inserting
2 self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be sure
to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush
to bottom of cabinet.
3
5
4
Tighten the two screws to the top of the oven
completely. (While tightening screws, hold
the oven in place against the wall and the top
cabinet.)
Install grease filters. See the Owner’s Manual
packed with the oven.
ADJUST THE EXHAUST
ADAPTOR
B7.
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
B8.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
MOUNT THE OVEN (continued)
B6.
Back of
Oven
Damper
Cover Plate
House Duct
