Cafe CVM721M2NS5 - Mounting Plate Placement; Removing the Microwave Oven from Carton; Finding Wall Studs

31-7000112 Rev. 2 7
Find the studs, using one of the following
methods:
A. Stud finder – a magnetic device which
locates nails.
OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs
VKRXOGEHƎRUƎIURPWKLVPDUN
Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.
1
Remove the installation instructions, filters, glass
tray, mounting plate, and the small hardware bag.
Do not remove the foam protecting the front of the
oven.
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the foam.

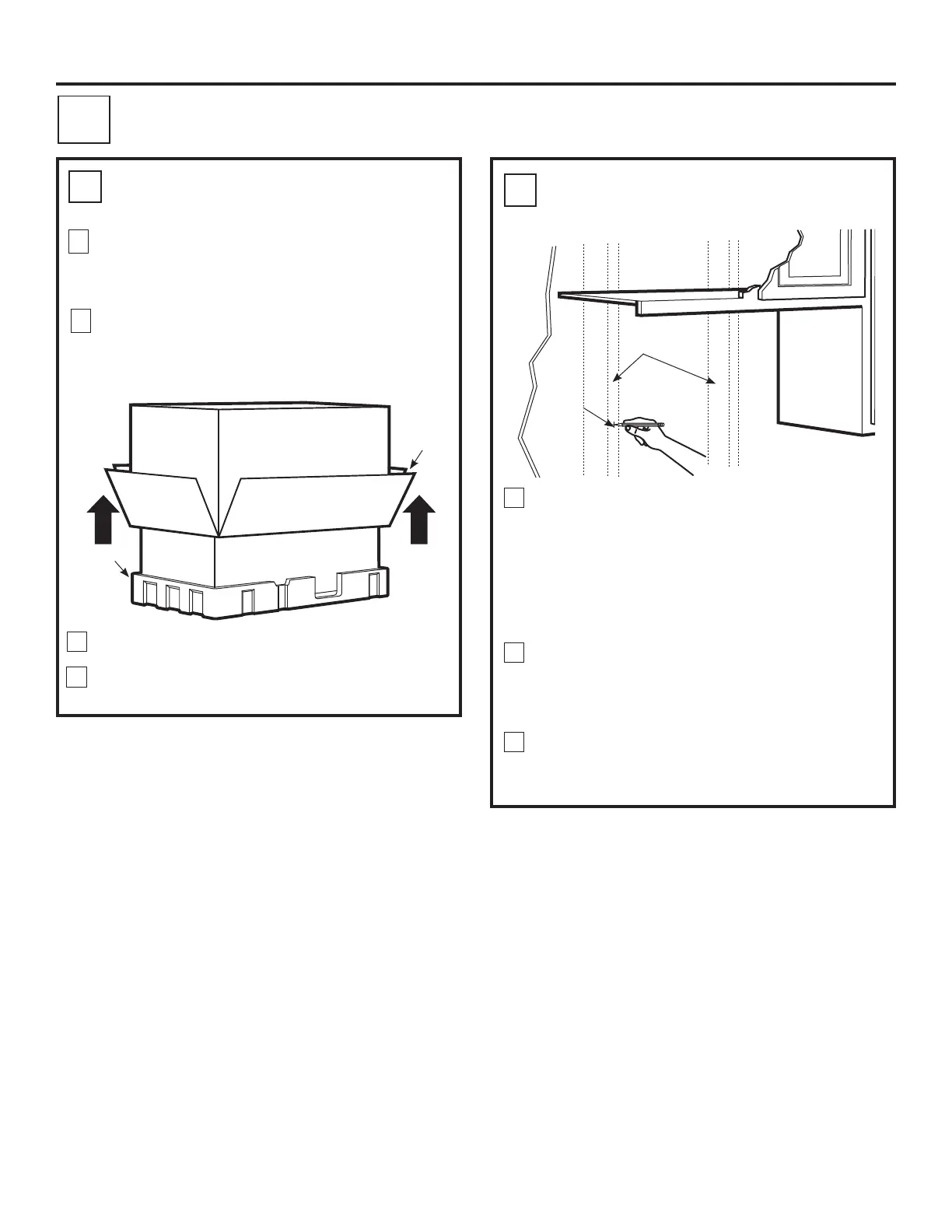

REMOVING THE MICROWAVE
OVEN FROM THE CARTON
FINDING THE WALL STUDS
B
.
A
.
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Pull the carton up and off the oven.
Carton
Foam
2
3
Set the oven upright. Remove and properly discard
plastic bags and foam packing.
4
1
Installation Instructions
