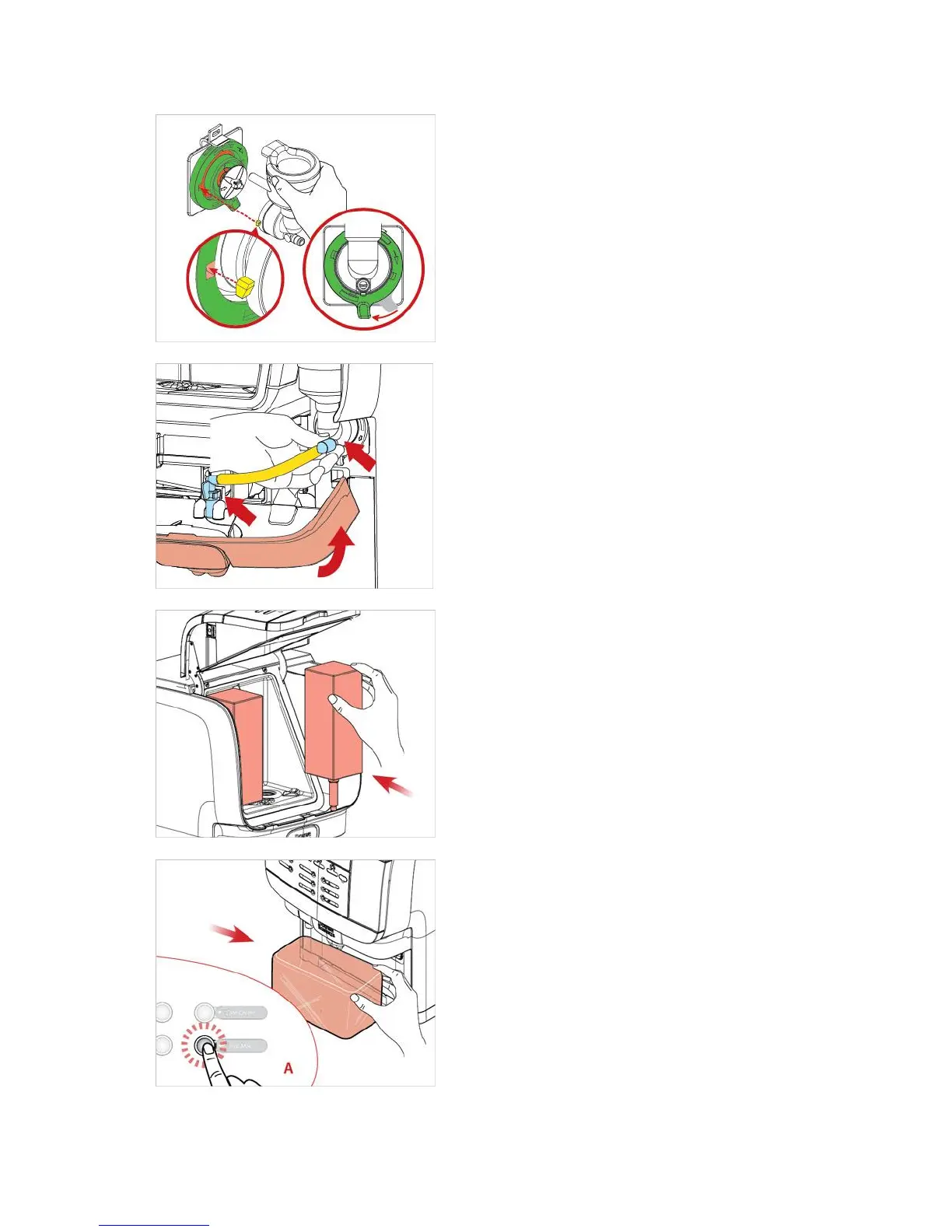

J. Turn the mounting plate clockwise until the holes are
in position 9 and 3. Align the guide hooks on the mixer
bowl and then push it all the way into position. Finally
lock the mixer bowl by turning the mounting plate
clockwise until complete stop.
K. Place back the tube to the mixer bowl, snap in the
outlet nozzle on the mixing tray.
12. Display will show: REINSTALL WATER TREATMENT
PANEL
13. Display will now show:
PLACE BACK PRODUCT PACKS
Place the product packs back if they have not passed the
expiry date. Else, place new product packs.
14. When both packs have been placed the display will
automatically continue and show:
PLACE BIN MIN 1L PRESS ENTER TO CONFIRM
15. Follow the instruction on the display:
PLACE BIN MIN 1L PRESS ENTER TO CONFIRM
Place the flush bin under the product outlets and
press ENTER button (A).
