CAIROX
General information

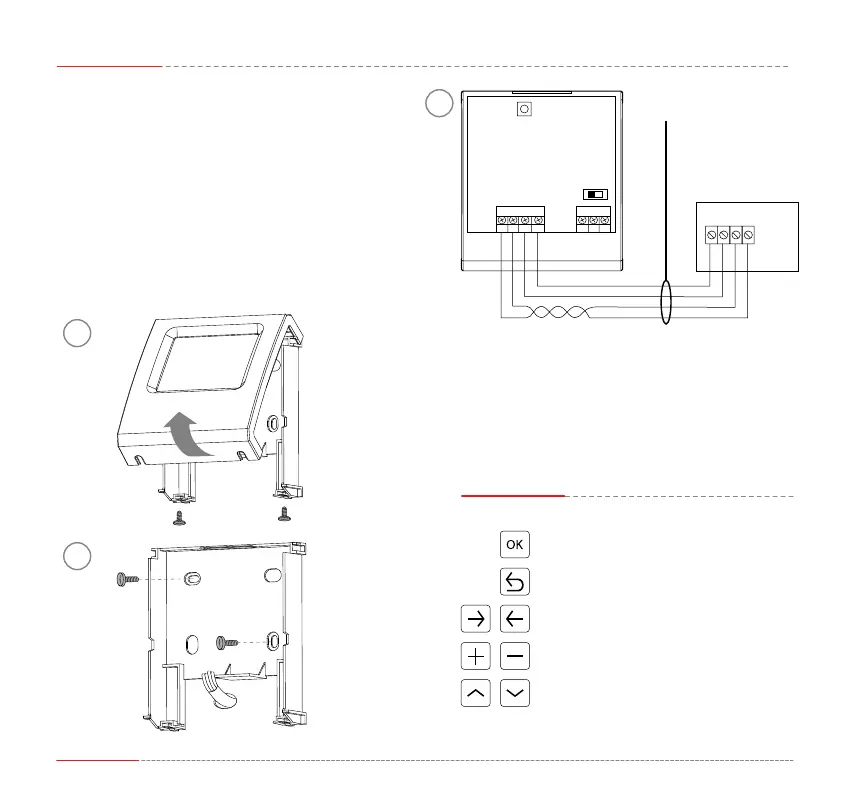

S-TOUCH controller has a built-in sensor for measuring
air temperature in the room. To ensure proper measure-
ments, the controller should be installed at a height of
approx. 1.5 m above the ground in a place with good air
circulation. Do not place it near heat sources, lighting, air
inlets, windows and door openings, etc.
If temperature sensor was chosen in a S-TOUCH menu
as „installed in unit” (p.32), S-TOUCH controller can be
mounted out of area i.e. technical room.
BMS
GND
B A
SW1
RESET
SW1
T120
T-box
GND
B A
VCC
max. 50 m
VCC
GND
A
T- bo
x
B
DRV
min. LICY 4x0,5 mm
2
screenedy
A and B braided wire pair
In the case, when S-TOUCH in BMS network is the last
device, SW1 switch should be set in T120 position.
return to previous screen with
save of changes
change of parameter value
change of unit group
return to previous screen without
save of changes
menu navigation
Installation
Navigation
1
3
2
