5
Evaporative air cooler
!
If in a fault operation, it may cause the electric
shock to harm the people
Please not inset any object into the air inlet
and air outlet. Please keep the children away
from the operating machine and prevent the child
use their hands or objects inset the machine
protection net.
Ban
The fan is running in high speed, if the child put their
hands inset to the air inlet or outlet is very danger.
This machine is suitable for operation indoor.
It not allow use this machine in some place with inflammable and explosive gas, prevent
direct sunshine on this machine.
Do not place the machine on a slope it may cause the machine to topple and damage the
equipment inside.
Please do not place air inlet of this machine near the wall or window curtain, otherwise it
may blocking the air flow, influence the effective cooling and ventilation.
When the water container is full, please do not place this machine on a slope or crash
it. If want to move it, please push it on flank to prevent the water spill.
Only the qualified professional person can take charge the maintain of this machine.
Evaporative air cooler
6

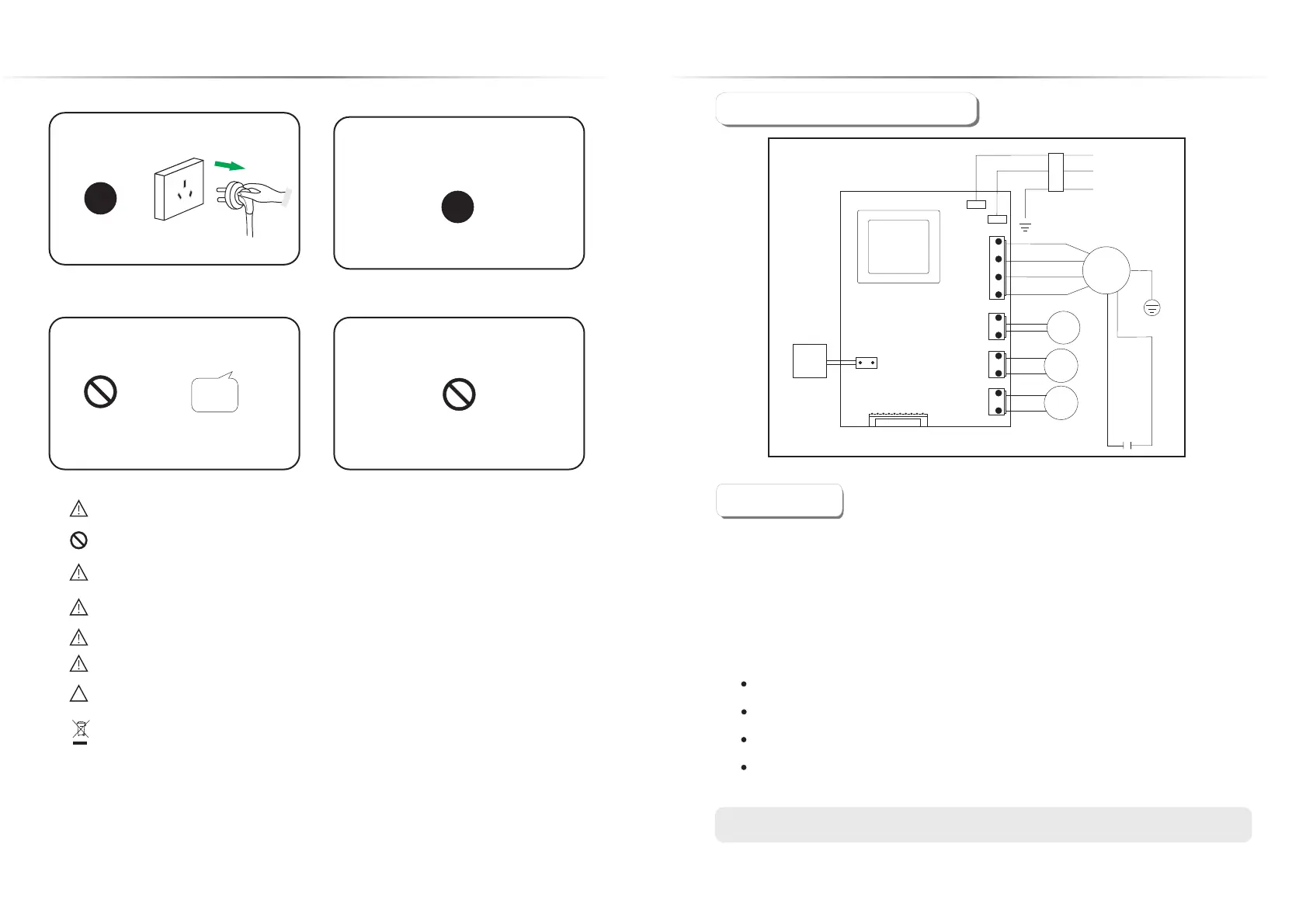

IX Schematic diagram of circuit、
X Installation、
1.Open the package and take out the air cooler, place it on horizontal floor.
2.Check the parts in the packing case if the same as the package content.
3.Open the cover of water inlet, add the clean tap water, and please pay attention
do not let the water level higher then the sign “H” on the water container.
4.Check the power supply if the same as the parameter on the nameplate of this machine.
5.Connect with the power supply, press the “power” button on the control panel,
choosing the suitable wind speed, then the air cooler is operating.
Notice:
Pull out the power plug before moving this machine.
Do not pull out the power plug with wet hand to prevent cause dangerous of electric shock.
Inset the plug into the power socket, and keep good connect.
Warm prompt: Please keep this product manual and package well after installation
for using in future.
!
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
When cleaning the water container and Pads
or not use this machine for a long period of
time please remove the plug from the socket.
Please k eep use water su ppl y pressure
of 0 . 1 5－0 . 6 MPa. Please keep the wat er
temperature lower tha n 45℃.
B a n
≤45℃
If the water supply pressure and temperature
are too high, it may cause the cooling pads melt,
plastic parts transformation. It may influence the
performance of machine.
!
If in a fault operation, it may cause some
negative effect.
If the power supply wire is damage, please
contact a professional to repair who is specified
by the manufacturer.
Please keep the water away from the electric leakage protection device. If it was splashed
wet, please clear away the water and check over before continue operation.
swing
water
pump
yellow-green
blue
wat er
level
sensor
swing
motor
water
pump
motor
connect to the signal wire
High wind speed
Medium wind speed
Low wind speed
transformer
red
orange
brown
N
L
fan
-μF/5 00 V
UV
UV
All parts of this machine can not discard casually, not allow throw them into dustbin.
