Evaporative air cooler
4
Please grasp the plug pull out the power
supply plug, do not grasp the power supply
wire! Not allow operate with wet hands.
!
If in a fault operation, it easy to cause electric
shock or on fire.
Please do not damage, curve, pull, twine or tie the power
supply wire. Please do not place any heavy object on the
power supply wire. If the electric leakage protection was
damage, the power supply wire was burn-in, tie a knot, plug
was damage, please disuse this product immediately.
Ban
If in a fault operation, it is easy to cause the fire
disaster and electric shock.
VIII Matters Need Attention、
This sign means not be allow to do—“Ban”
This sign means please make sure to do—“Enforcement”
This sign means please be careful—“Reminding”
!
Please use the rated current more than 5A socket
independently.
!
Rated current
≥5A
Please review and follow all instructions below to prevent damage asset and
people safety.
!
Use only AC110V-127V 10% Voltage.±
Ban
If the voltage is not AC110V it may cause
damage or electrical shock.
It may cause fire disaster or unusual movement
to harm the people.
Not allow to disconnect
this machine
Only the qualified servicemen can maintain
or refit this machine!
If share the socket with other appliance, it may cause
socket become heat, even on fire.
This machine should use single phase two-stage
with earth wire socket, and should make sure it is
connect with the earth wire reliably! If not connect
with the earth wire, it may cause the cabinet and
metal parts with electrostatic induction.
If the fault and electric leakage happened, it
may cause the electric shock.
Ensure connect with earth wire
Evaporative air cooler

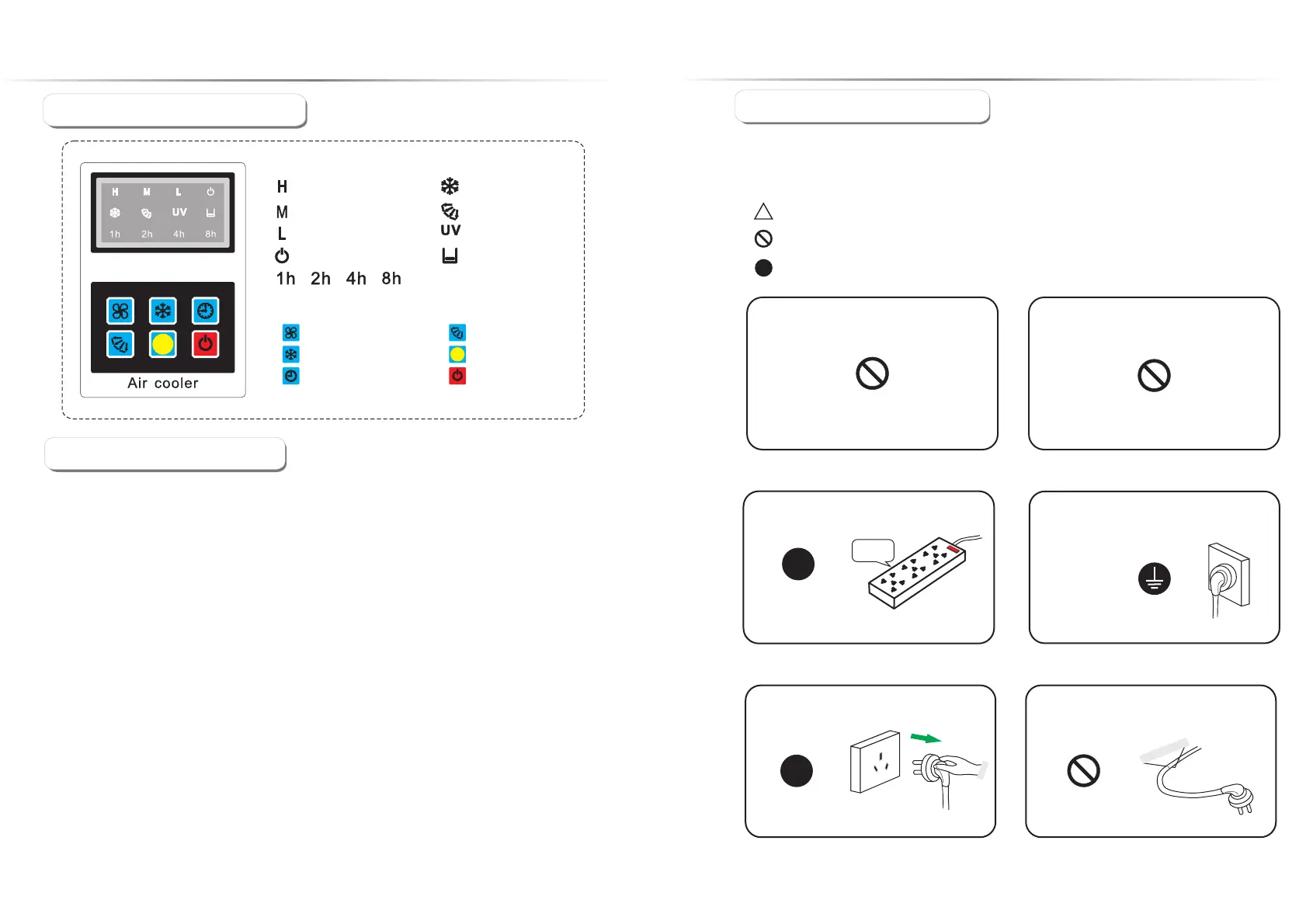

Ⅺ Control panel introduction、
Ⅻ Operation instruction、
7
1.Inset the plug into the socket, press the reset button of the electric leakage protection device.
Power supply on after the circuit board electrify, power supply normal work.(Electric
leakage protection device should press the test button and reset on time, to test the electric
leakage protection device if normal work. When it is damage, you should replace a new one.)
“ On/Off button:After connected the power supply and press this button ,the machine will
operate with medium wind speed and swing wind . After the machine operated, then setting the
wind speed and wind swing. Turn off the machine means shutdown all the power output.
3.“Cooling” button:
1).Water shortage: press the “wind speed” button, then the fan operation, press the “
swing” button to set the wind swing, water pump dose not work, the warning light flicker
and warning sounding 15 times, pause 30 seconds, then continue warning light flicker and
warning sounding 15 times, finally the warning light keep turn on.
2). water enough: Operating the water pump firstly, wind speed light and wind swing light flicker,
after 30 seconds, then operating dependent on the wind speed and wind swing setting.after water
pump worked 5 minutes,UV Lamp start to disinfect water, the water treatment light on the
panel,UV lamp will closed after work 20 minutes(UV lamp is the optional function)
4.“ Wind speed” button: adjusting the motor wind speed: high speed-medium speed-low
speed-high speed…
5. wind swing” button: control the wind swing turn on and turn off. When the fan closed,
the wind swing will be locked.
6.“Time setting” button: setting the working time: (h)
2. ”
“
0-1-2-4-8-0
LED Light definition LED
" "High wind speed
" "Medium wind speed
" "Low wind speed
" "Power
" "Time setting
" "Cooling
" "Wind swing
" "UV
" "Water shortage
Button definition
" "Wind speed " "Wind swing
" "Cooling " "Signal
" "Time setting " " ON/OFF
