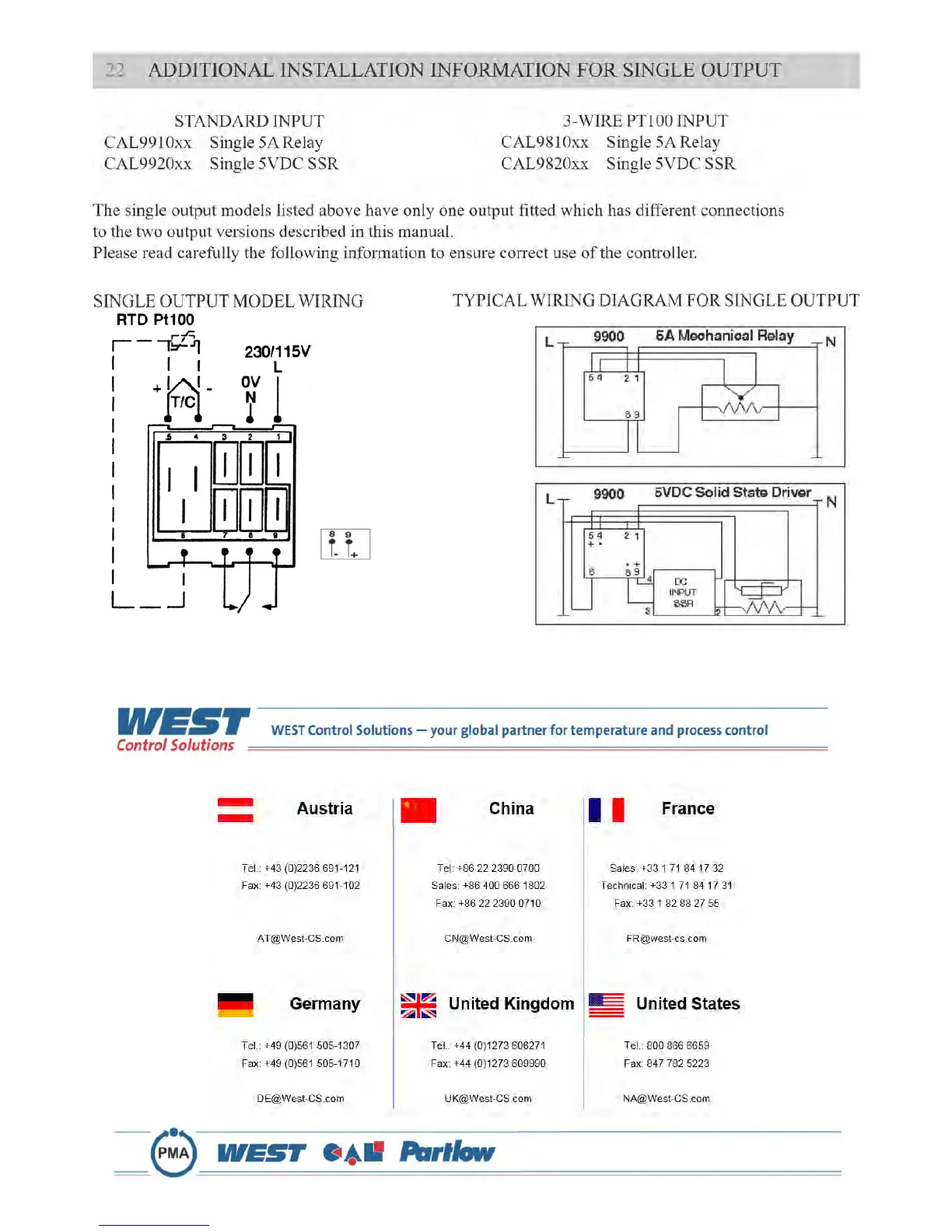

CAL Controls CAL 9900 - Standard Input; Single Output Model Wiring; 3-Wire PT100 Input; Typical Wiring Diagram for Single Output

Notes: These products are intended for indoor use only
Field wiring employed must be rated for a minimum of 70°C.
YDM00021B - Issue 05
5A 250V SPDT relay
5Vdc SSR drive
