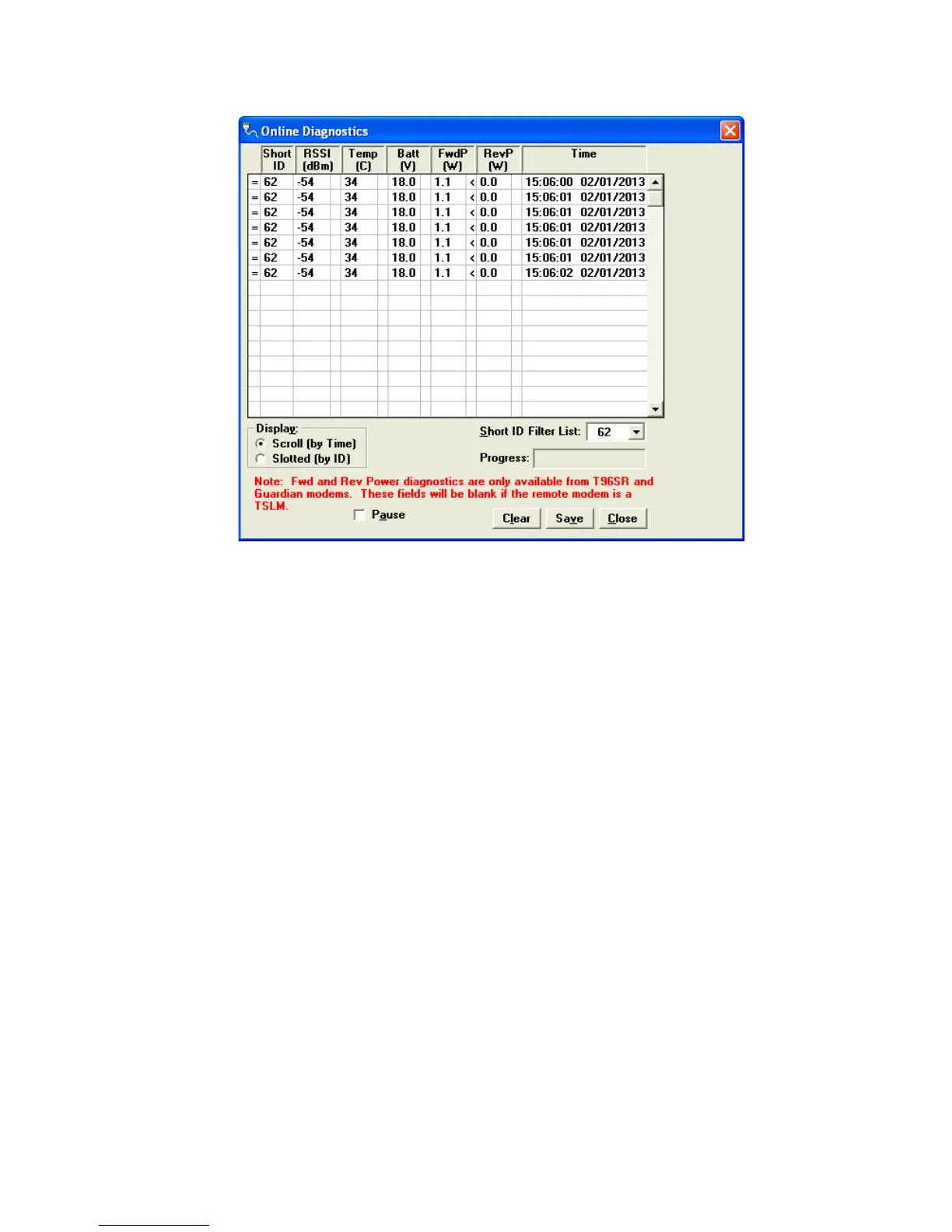

Figure 32 Online Diagnostics
The following online diagnostics are gathered and displayed in the Online Diagnostics window.
Short ID
Displays the Short ID of the unit transmitting the diagnostics.
RSSI
RSSI (Received Signal Strength Indicator) displays the RSSI (in dBm) of the unit transmitting the diagnostics. This is the
RSSI sampled during the last transmission received.
Temp
Displays the internal case temperature (in Celsius) of the unit transmitting the diagnostics.
Batt
Displays the supply voltage (in volts) of the unit transmitting the diagnostics.
FwdP
Displays the forward power (in watts) of the unit transmitting the diagnostics.
RevP
Displays the reverse (reflected) power (in watts) of the unit transmitting the diagnostics.
Time
Displays the time stamp when the diagnostics were received.
Filter
Allows the user to filter Short IDs. The following options are available:
• Off (All IDs): No IDs are filtered out.
• ID List: Only the IDs in the Filter ID List are shown.
Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3 | Page 48
