31” (79 cm)
34.25” (88 cm)
2.5” (6.3 cm)
89” (226 cm)
76” (193 cm)
NOTE: Watkins Wellness recommends that the MARTINIQUE be installed on a minimum 10 cm (4") thick reinforced concrete pad or structurally sound deck able to
support the “dead weight” found in the spa specification chart.
WARNING: The MARTINIQUE must not be shimmed in any manner.
MARTINIQUE
NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions.

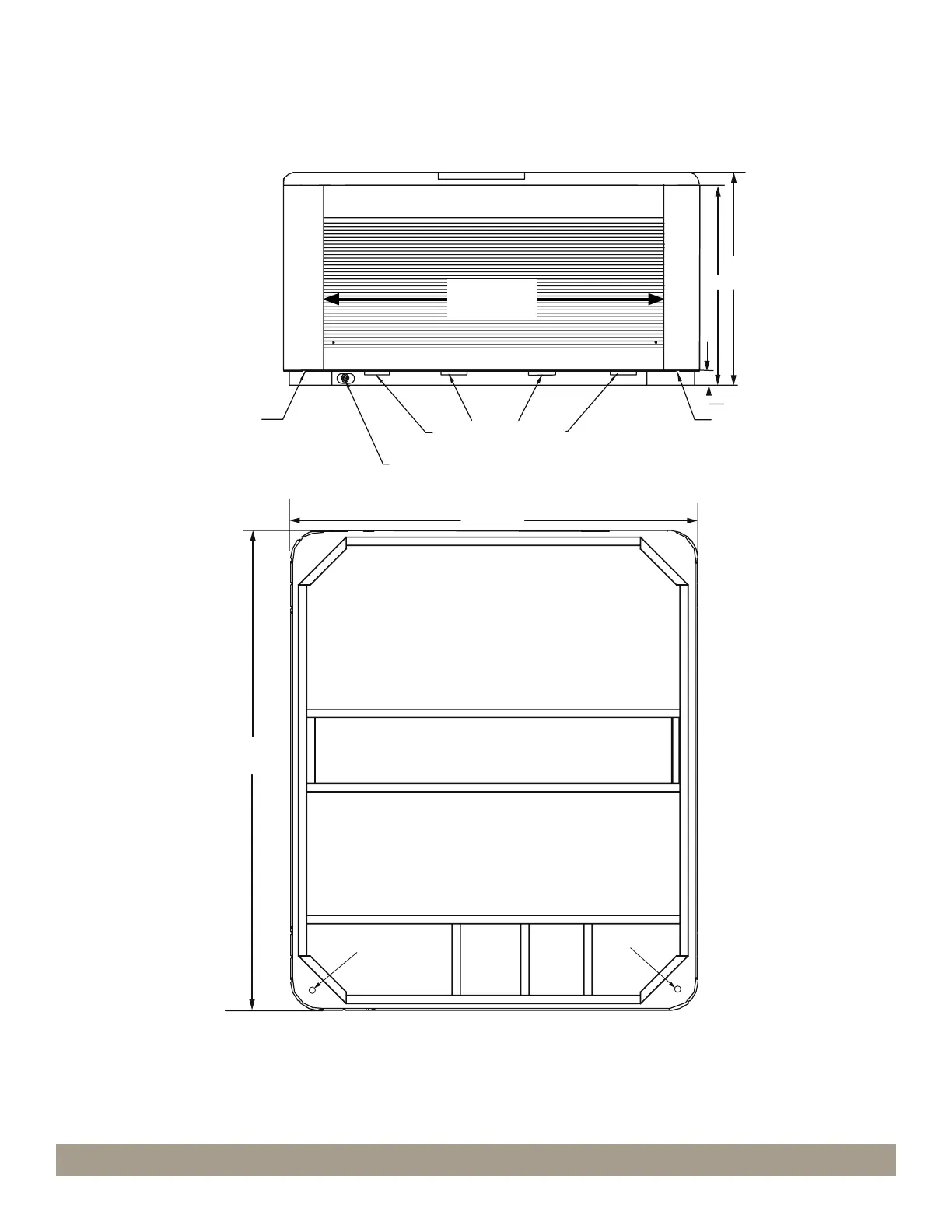

FRONT VIEW
ELECTRICAL CUTOUT
SPA DRAIN
AIR VENTS
DO NOT BLOCK
OVERALL
BOTTOM VIEW
ELECTRICAL
OUTLET
DOOR SIDE
ELECTRICAL
OUTLET
OVERALL
Installation
DOOR
55" (140 CM)
ELECTRICAL CUTOUT
