T073G, T076G, and T077G LEDs

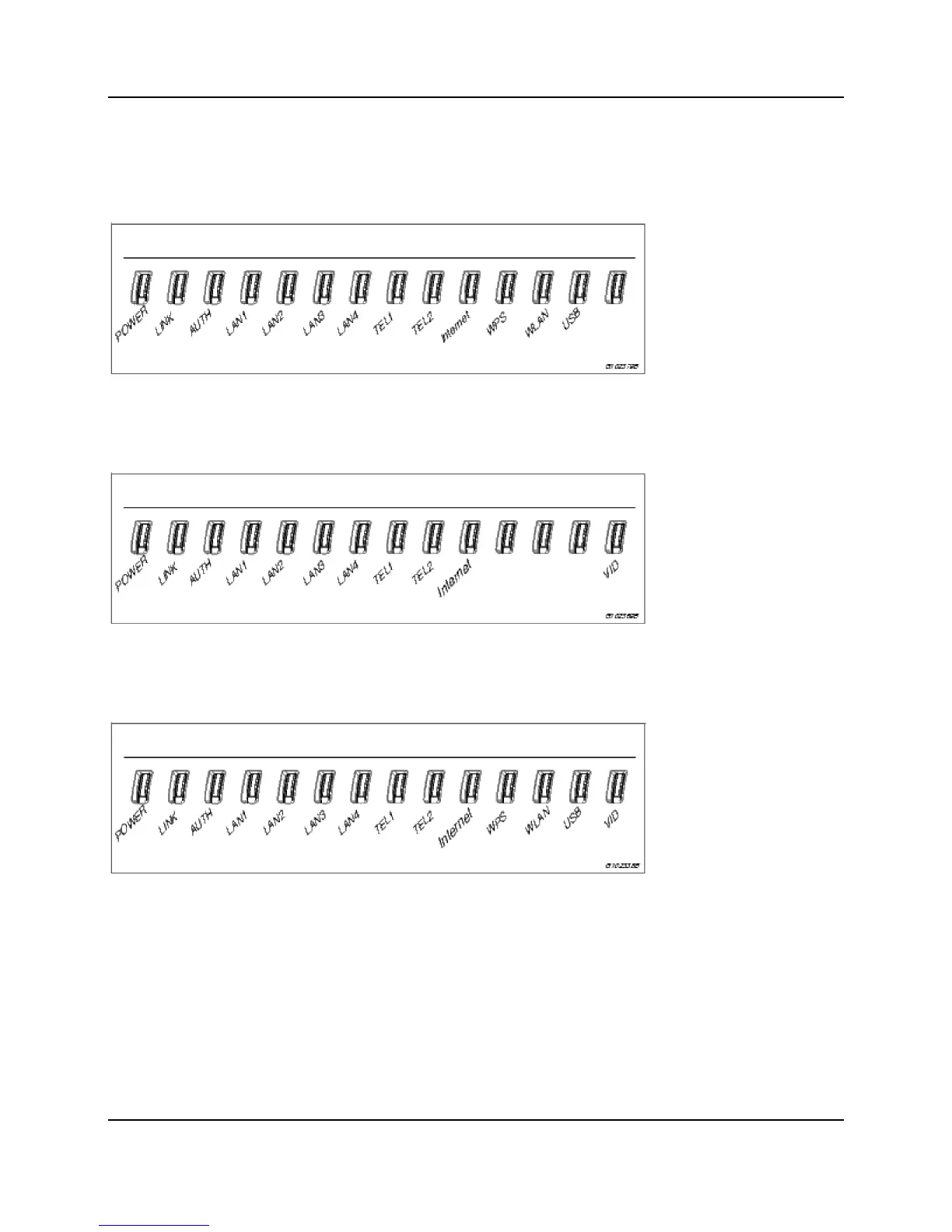

The figures below show the location of LEDs on the T073G, T076G, and T077G ONTs.
Table T073G, T076G, and T077G LED Description describes the LEDs and the signal
descriptions.
Figure 37: T073G LEDs
Figure 38: T076G LEDs
Figure 39: T077G LEDs
