Calorex PPT16 - 13.0 Contacting Calorex Support

Page 33
Calorex Heat Pumps Ltd. · The Causeway, Maldon, Essex CM9 4XD, UK · Tel: +44 (0)1621 857 171
Installation Manual
PPT8/12/16/22L/LY
R

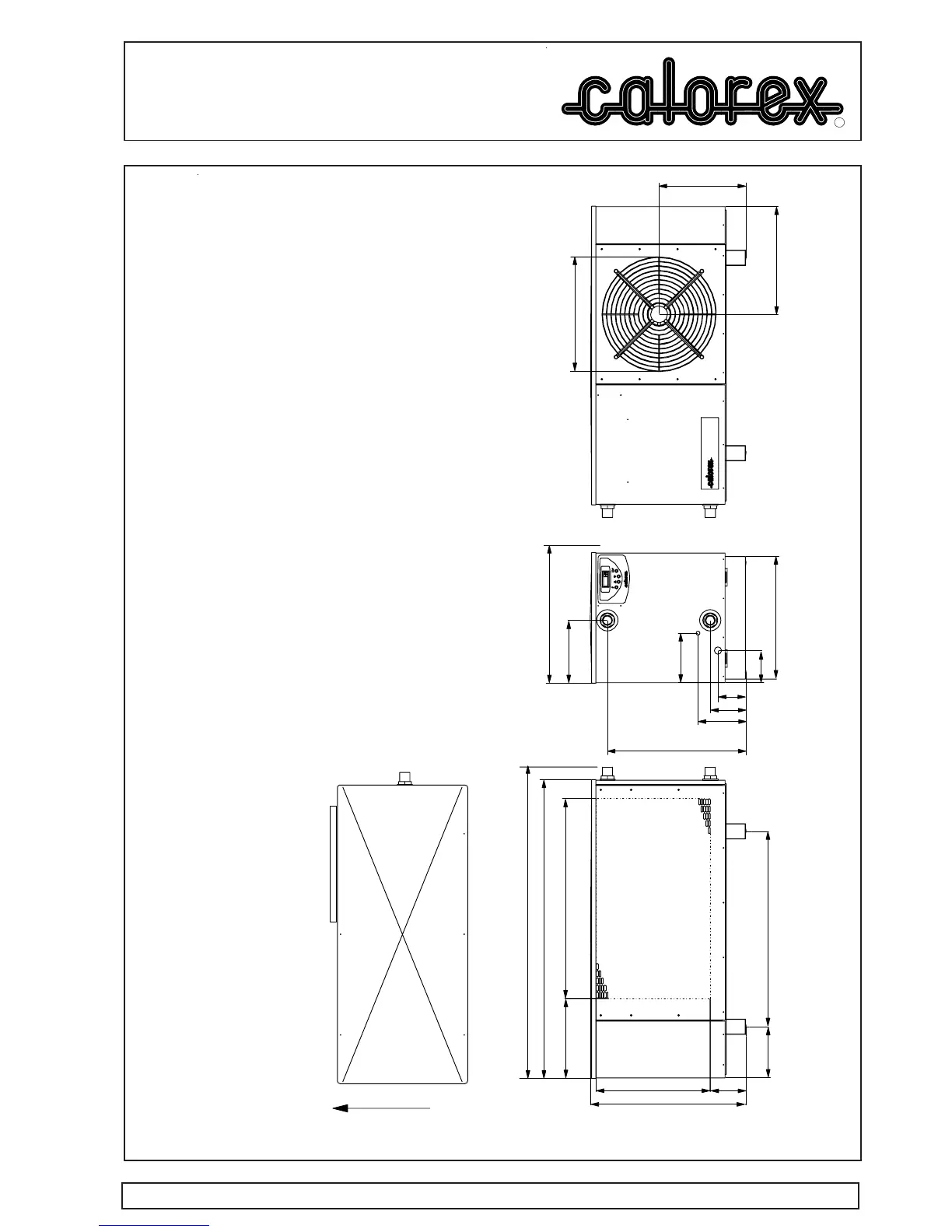

PPT16 WATER IN/OUT 1½" BSPM CONDENSATE ¾" DOMESTIC WASTE
WATER IN
WATER OUT
CONDENSATE
MAINS IN
129
222
165
602
289
227
147
565
R
D562 75 7 Iss 1
Pro-Pac 16
402
496
528
AIR ON
AIR OFF
640
236
900
368 921
166
526
720
1377
1435
