Calphalon TSCLTVFD2 - Product Identification and Display; Product Diagram and Components; LCD Display Functionality

5
TOAST
BAGEL
BAKE
AIRFRY
ROAST
PIZZA
BROIL
COOKIES
KEEP WARM
WINGS
DEHYDRATE
SET SHADE
PREHEATING
SET TEMP
SET TIME
HR:MIN:SEC

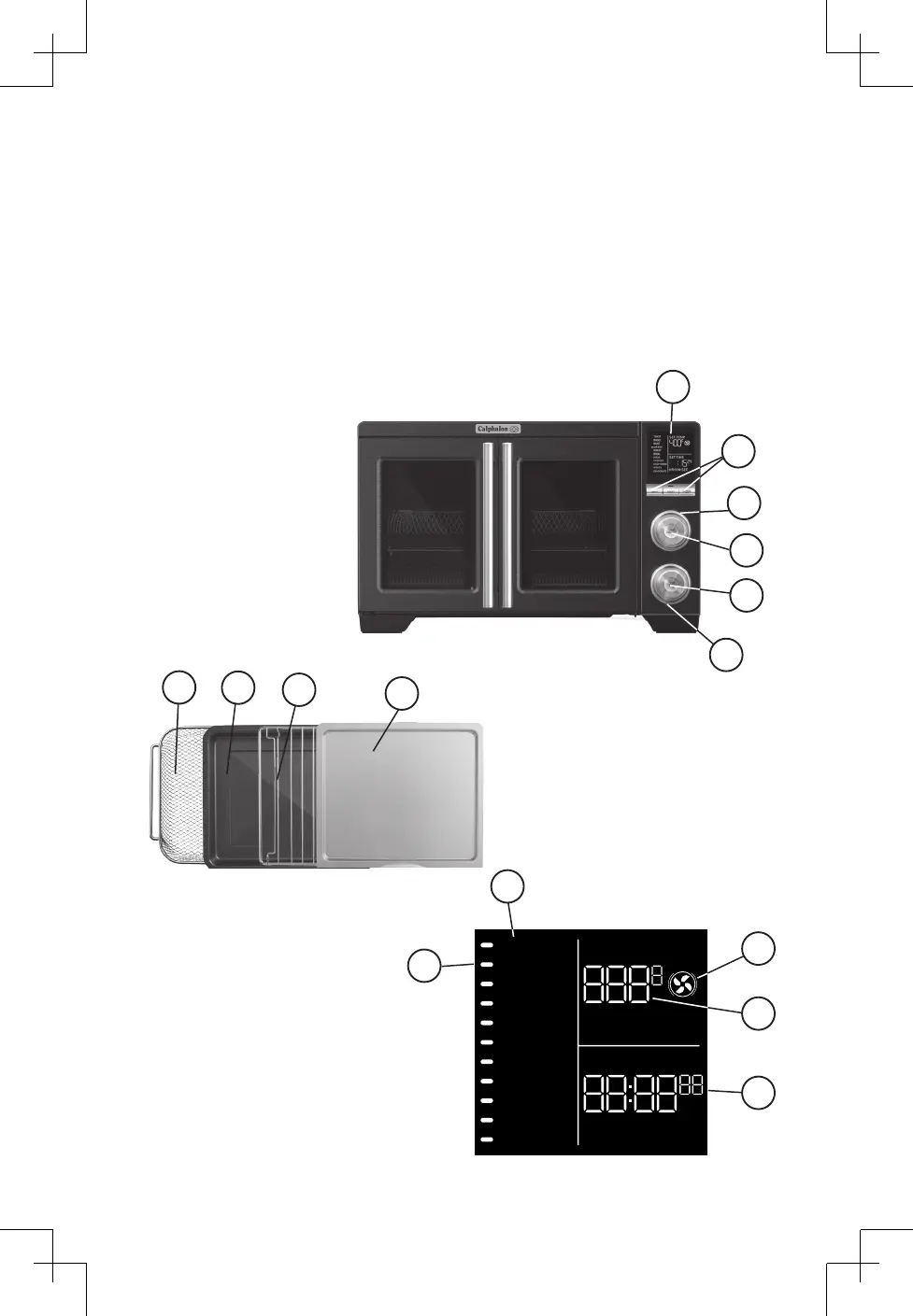

PRODUCT DIAGRAM
1. LCD Screen Display
2. Light, Start and Cancel/OFF Buttons
3. Function Selector Dial
4. Turbo Convection Selector Button
5. Time/ Temperature Selector Button
6. Time/ Temperature Control Dial
7. *Air Fry Basket / Dehydrate Rack
8. *Baking Pan
9. *Removable Wire Rack
10. *Removable Crumb Tray
11. *Interior Light (not shown in image)
*These parts can be replaced on Calphalon.com or
at 1-800-809-7267
LCD DISPLAY
a. Function Options
b. Function Indicator
c. Shade Setting or Temperature Setting
d. Timer
e. Air Fry and Turbo Convection Icon
1
2
3
4
5
7
8
a
d
e
c
b
9
10
6
