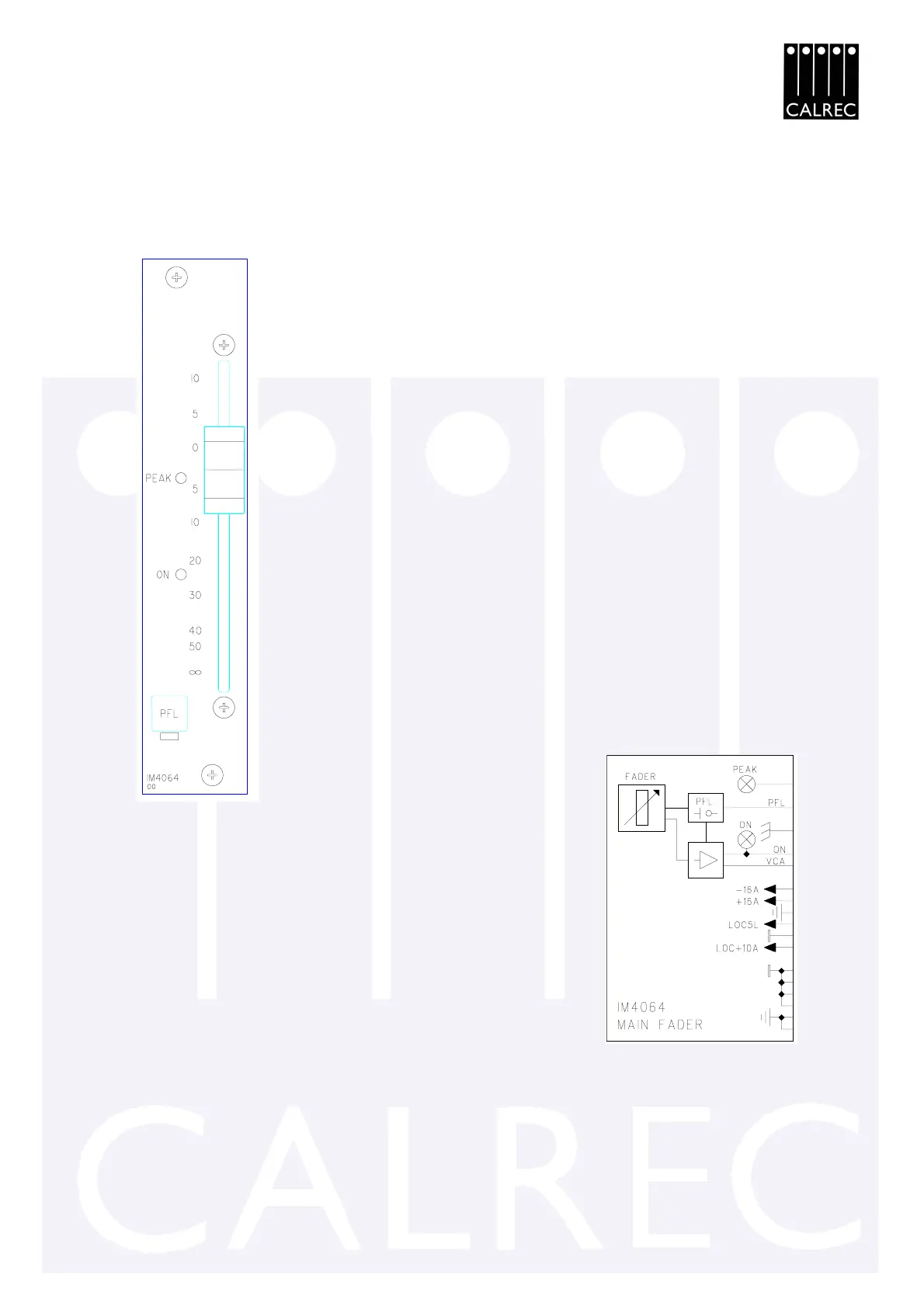

2.7 IM4064 MAIN OUTPUT FADER
Scribble strip.
FADER - with +10dB in hand - can be reverse scale to order.
PEAK - Red LED illuminates when pre or post fader signal approaches within 3dB of
clipping.
ON - Green LED illuminates when fader is open.
PFL button routes main signal to PFL loudspeaker{s} (in-place stereo).
Momentary button can be internally set for push-push electronic latching.
