GET TO KNOW YOUR RADIO
Components
NOTE:
Before using the radio, read all the instructions contained in the
manual and, with special care, those relative to safety.

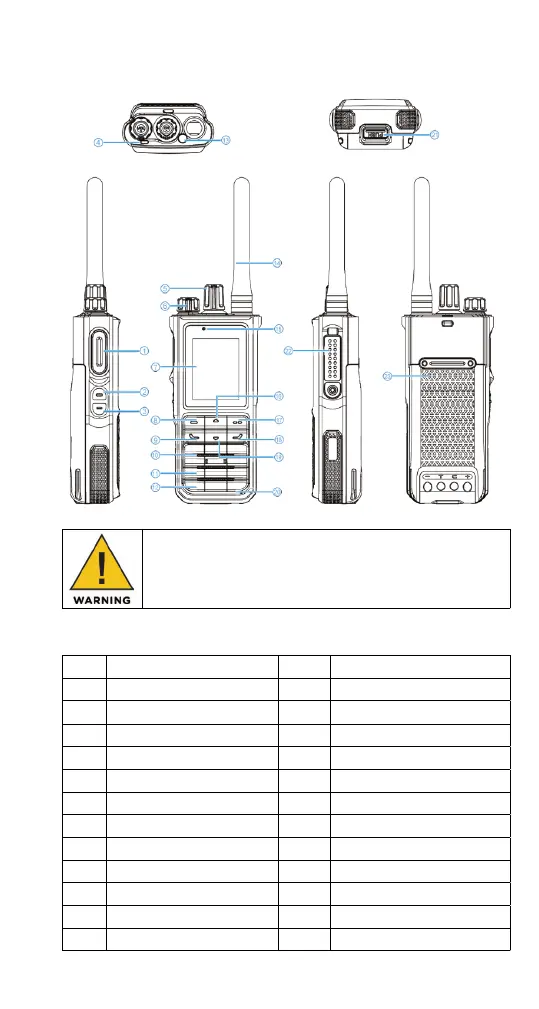

COMPONENT DESCRIPTIONS
No. Name No. Name
1 PTT key 13 Top key
2 Side key 1 14 Antenna
3 Side key 2 15 Microphone
4 LED indicator 16 Up key
5 Channel selection rotary knob 17 Back/Group call management key
6 Power /Volume rotary knob 18 Hook key
7 LCD 19 Down key
8 OK/Menu key 20 # Key
9 Call/Answer key 21 Battery button
10 Speaker 22 Accessory interface
11 Digit keypad 23 Battery
12 * Key
