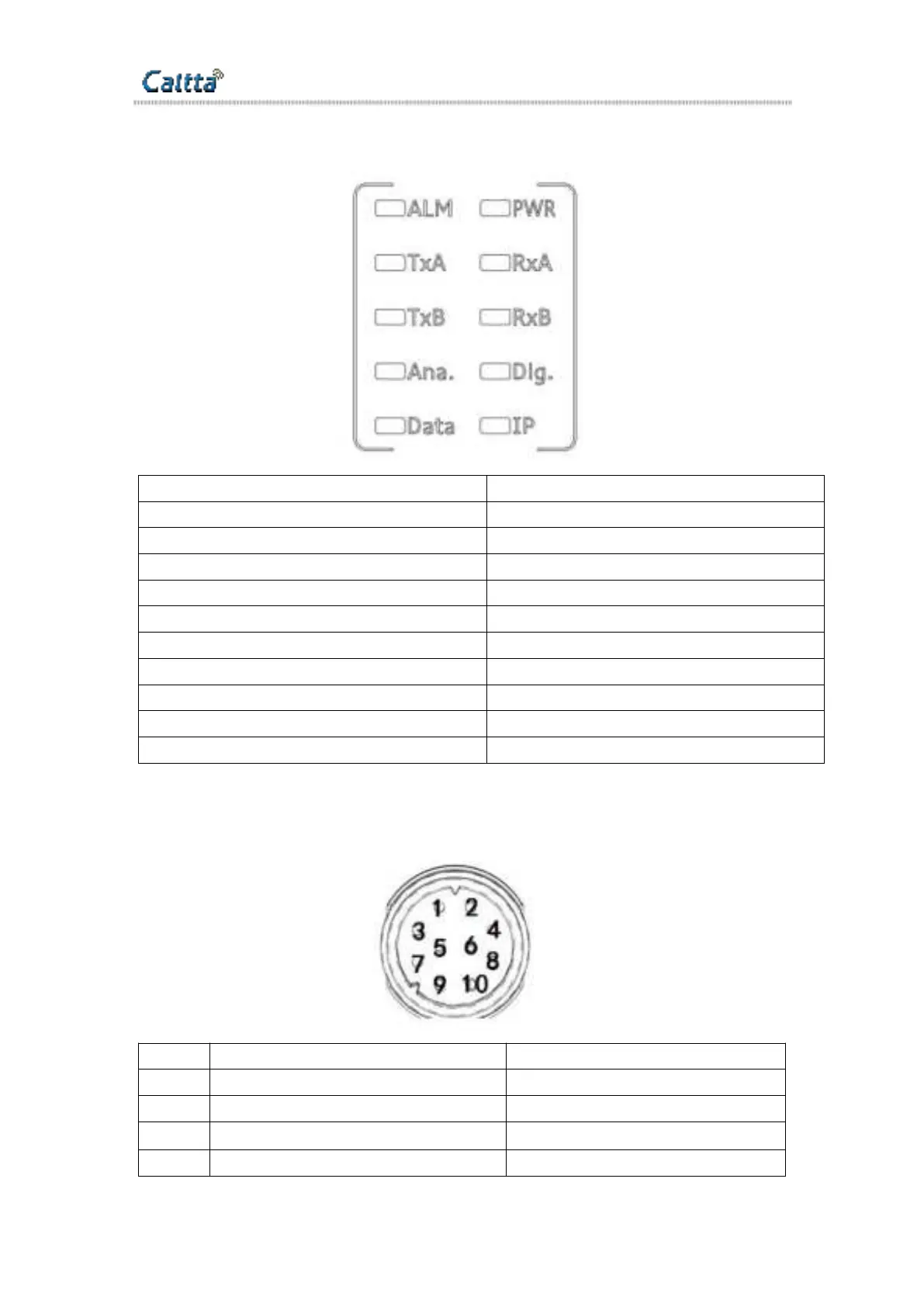

2.1LED Indicators
Indicators
Description
ALM
Alarm indicator
PWR
Power indicator
TXA
Slot 1 transmitting indicator
RXA
Slot 1 receiving indicator
TXB
Slot 2 transmitting indicator
RXB
Slot 2 receiving indicator
Ana
Analog mode indicator
Dig.
Digital mode indicator
Data
Repeater signal indicator
IP
IP interconnection status indication
2.2MMP Connector
PIN
Indicators
Description
1
MMP10_Mic
mic
2
MMP10_Spk
speaker
3
MMP10_PTT
External PTT，low level is effective
4
MMP10_Hook
Hang up signal
