Caltta PR900 - 2.4 AC Cable Connector; 2.5 DC Connector; 2.6 Power ON;OFF Button; 2.7 Operation Button

secret▲
All rights reserved.No spreading abroad without permission of Caltta.
9
20
TX_UART_RXD
TX UART RXD
21
TDMA
Transmit trigger signal
22
ACC_MAP_DET1
It is used for test
23
ACC_MAP_DET2
It is used for test
24
SWB+
Output the system supply voltage,max current 1000mA
25
Ext_Alarm
Programmable alarm output,Output the system supply
voltage,max current 300mA
26
Power_GND
Power GND

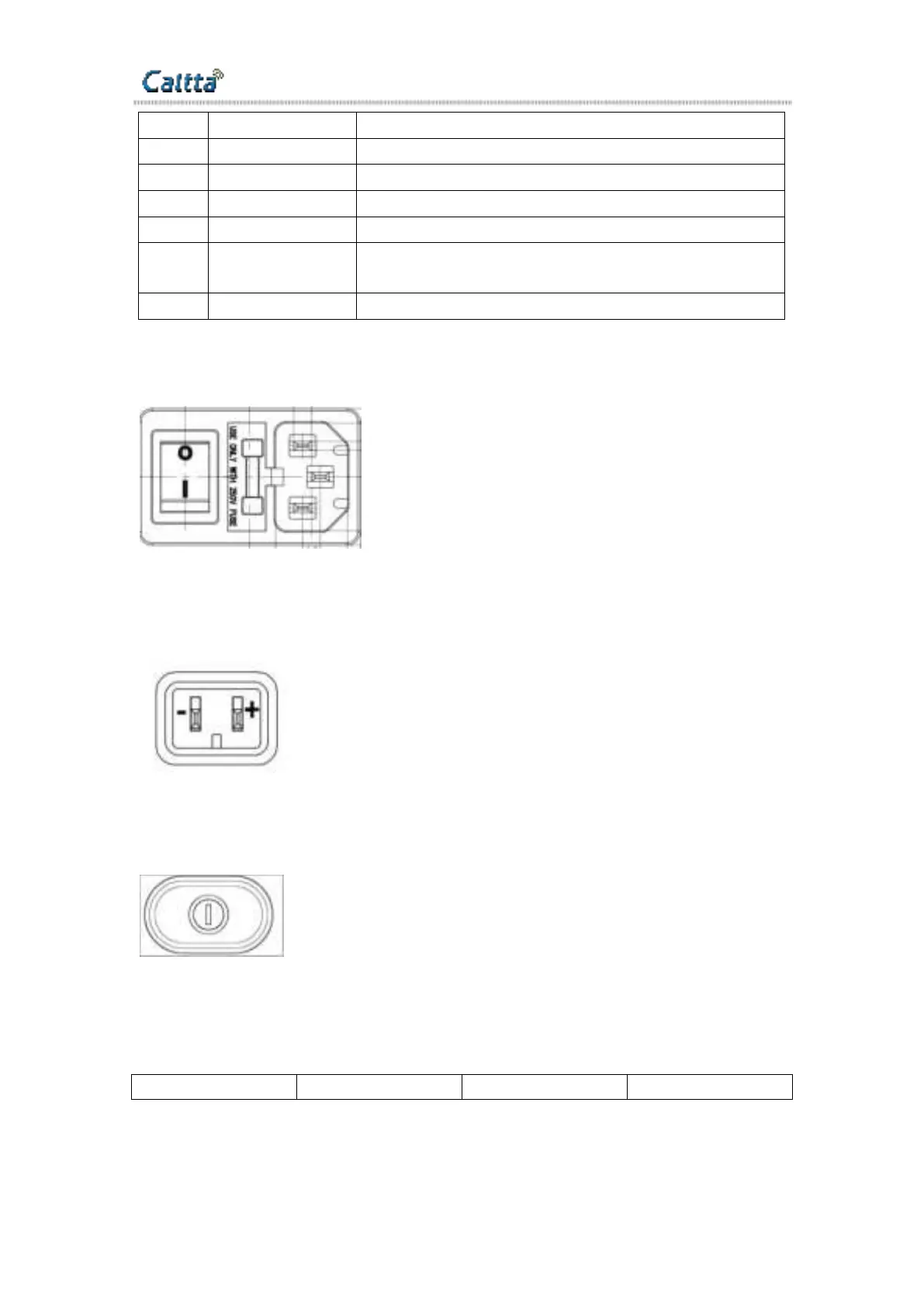

2.4AC Cable Connector
Press I to power on the AC power.Press O to power off the AC power.
2.5DC Connector
2.6Power ON/OFF Button
Power ON/OFF the repeater
2.7Operation Button
Indicators
Description
Indicators
Description
