11. Connect the hydraulics

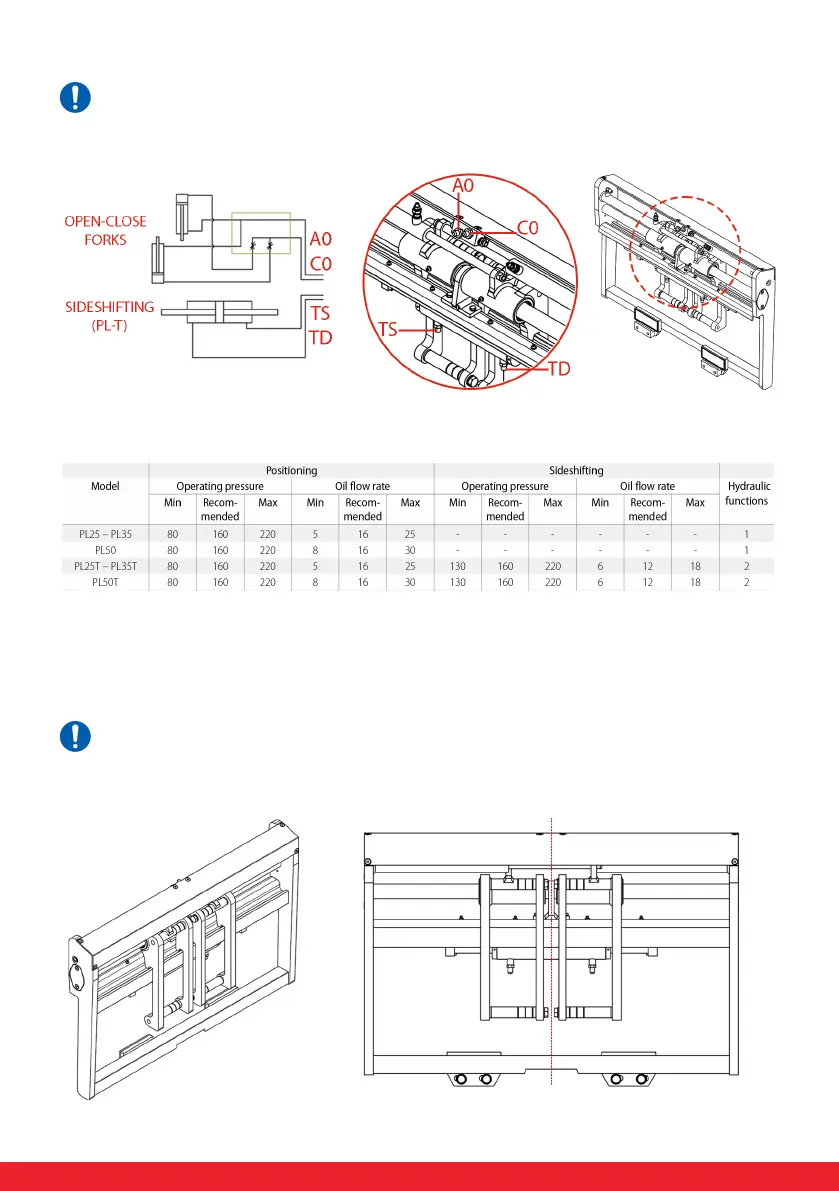

Please see below diagram for hydraulic circuit
• Before installing forks, connect the required hydraulics.
• To ensure correct use this equipment requires oil flow and oil pressure as indicated in the table
below and as stated on the type plate.
• A flow rate less than recommended will result in a lower operating speed.
• A flow rate greater than maximum can result in excesssive heating, reduced system performance
and short hydraulic system life.
12. Forks mounting
• Operate the cylinders so that the fork supports will be postitioned in proximity of the centre as
indicated in the diagram below.
