2.
DESCRIPTION
2
.1
.
T
e
chnical data
Always check the type plate for the correct information.
A complete overview with all technical data of each product can be found in chapter
‘10.
Annexes
’
.

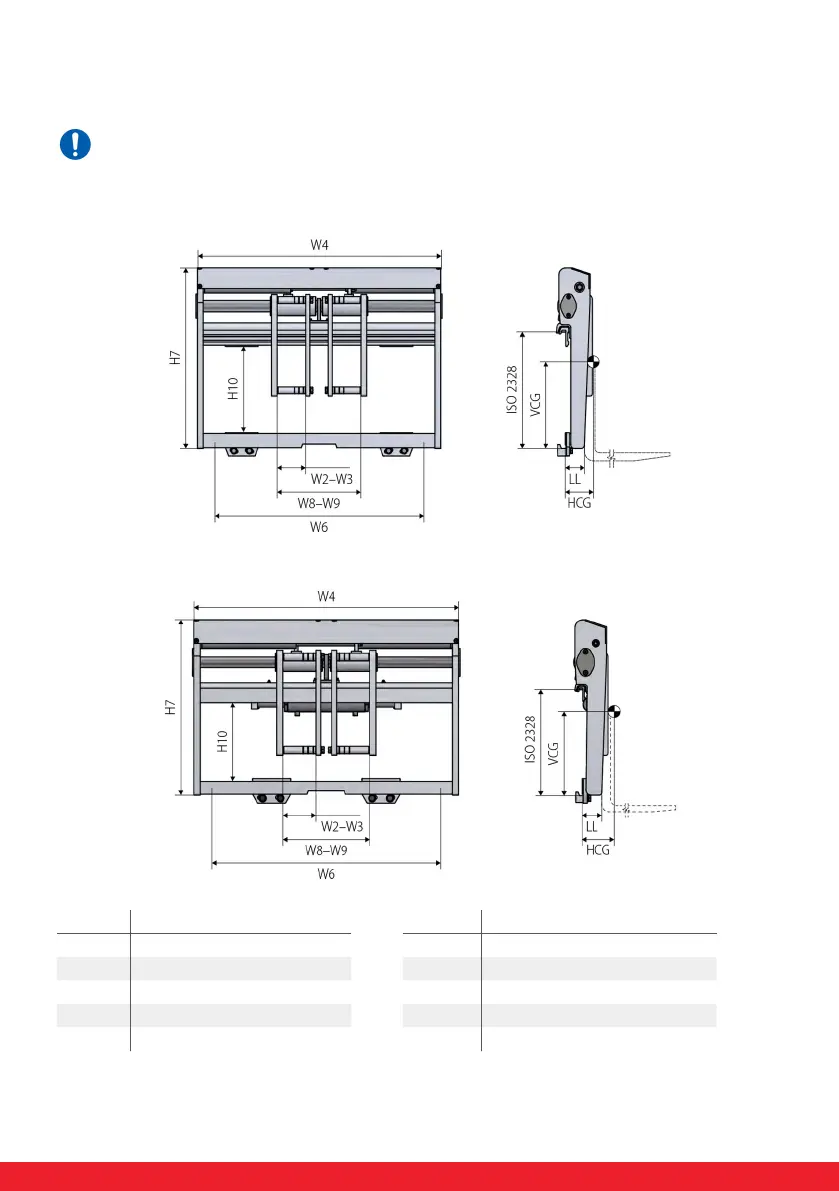

PL Series
PL
-
T Series
N°
Description
N°
Description
W2
- W3
Width of forks
H10
Internal view space
W4
F
rame width
ISO2328
FEM class
W6
Minimum width of fork carriage
VCG
Vertical centre of gravity
W8
- W9
Opening range
HCG
Horizontal centre of gravity
H7
Height of the equipment
LL
Lost load
6
8
Table of Contents
Table of Contents
5
Introduction
6
Description
7
Technical Data
7
Main Components of the Product
8
Placement of the Decals
9
Type Plate
10
Safety Instructions
11
Explanation of the Safety Decals
11
General Safety Instructions
11
Transport and Storage
13
Assembly and Installation
14
Packing List
14
Safety Instructions for Assembly and Installation of the Product
14
Assembly of the Product
14
Operation
22
Safety Instructions for Operating the Product
22
Operating Instructions
23
Maintenance
25
Safety Instructions for the Maintenance of the Product
25
Maintenance Schedule
25
Maintenance Instructions
25
Troubleshooting
29
Final Decommissioning and Disposal
30
Annexes
31
CE Certificate
31
Technical Data
32
Hydraulic Information
34
Spare Parts List
35
