Cambium Networks 450 Series User Manual

10
6. Hardware overview

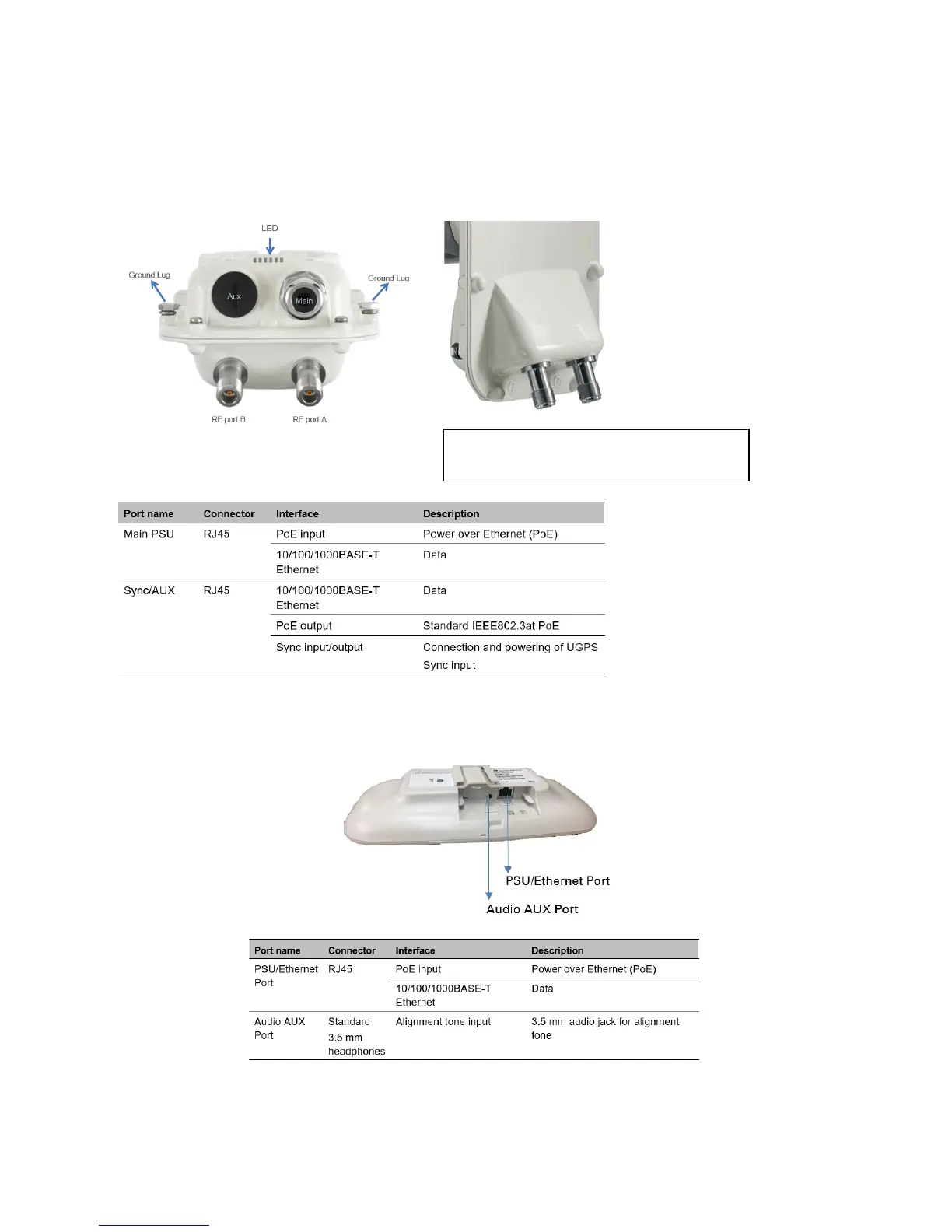

PMP/PTP 450i interfaces
The Ethernet and Sync/AUX ports are located on the rear of the integrated and connectorized ODUs.
The connectorized ODU is shown here.
View of interface connections
The front of the connectorized ODU
PMP/PTP 450b interfaces
The Mid-Gain is unit shown here. The interfaces are the same for the high-gain
unit.
PMP 450m AP interfaces
5 GHz PMP 450m
3 GHz PMP 450m
(N type female connectors for RF cable
interfaces to antenna with ports A and B)
