Chapter 2: Packaging and Installation of Access Point 21
Mounting XV3-8
The XV3-8 units are mounted either by ceiling mount, wall mounting or T-bar mounting method.
Ceiling Mount

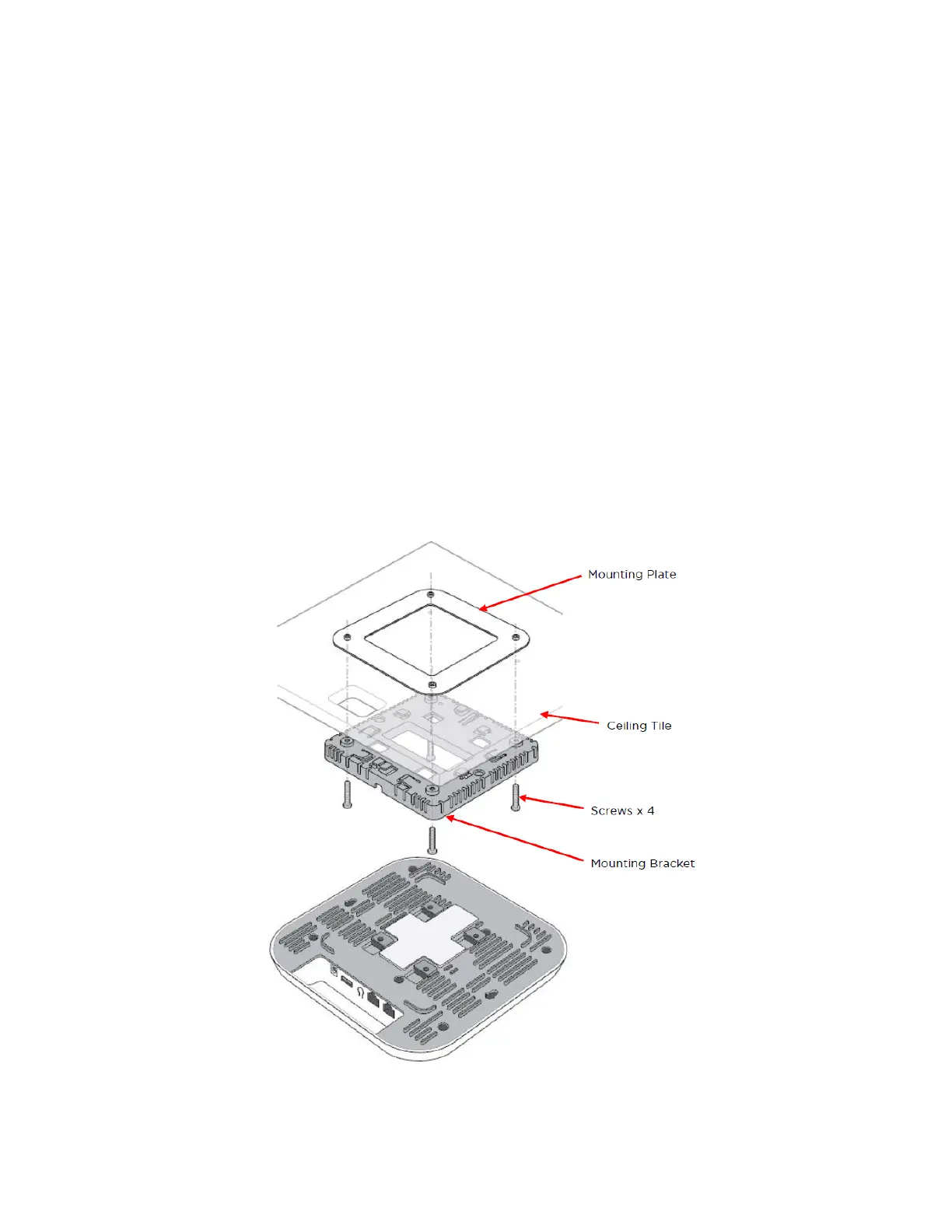

To mount the XV3-8 unit on the ceiling, perform the following steps:
1. Determine where XV3-8 needs to be mounted and remove the ceiling tile.
2. Using the hole template, mark the hole locations.
3. Drill the holes for the four mounting screws using a 5mm (3/6”) diameter drill bit.
4. Drill a hole for the RJ45 cable using a 15 mm (5/8”) diameter bit.
5. Hold the mounting plate on the top side of the ceiling tile and screw it on the mounting bracket.
6. Run the RJ45 cable (s) through the 15mm hole and remount the ceiling tile.
7. Attach the RJ45 cable (s) to the XV3-8 unit.
8. Slide the XV3-8 unit into the mounting bracket.
