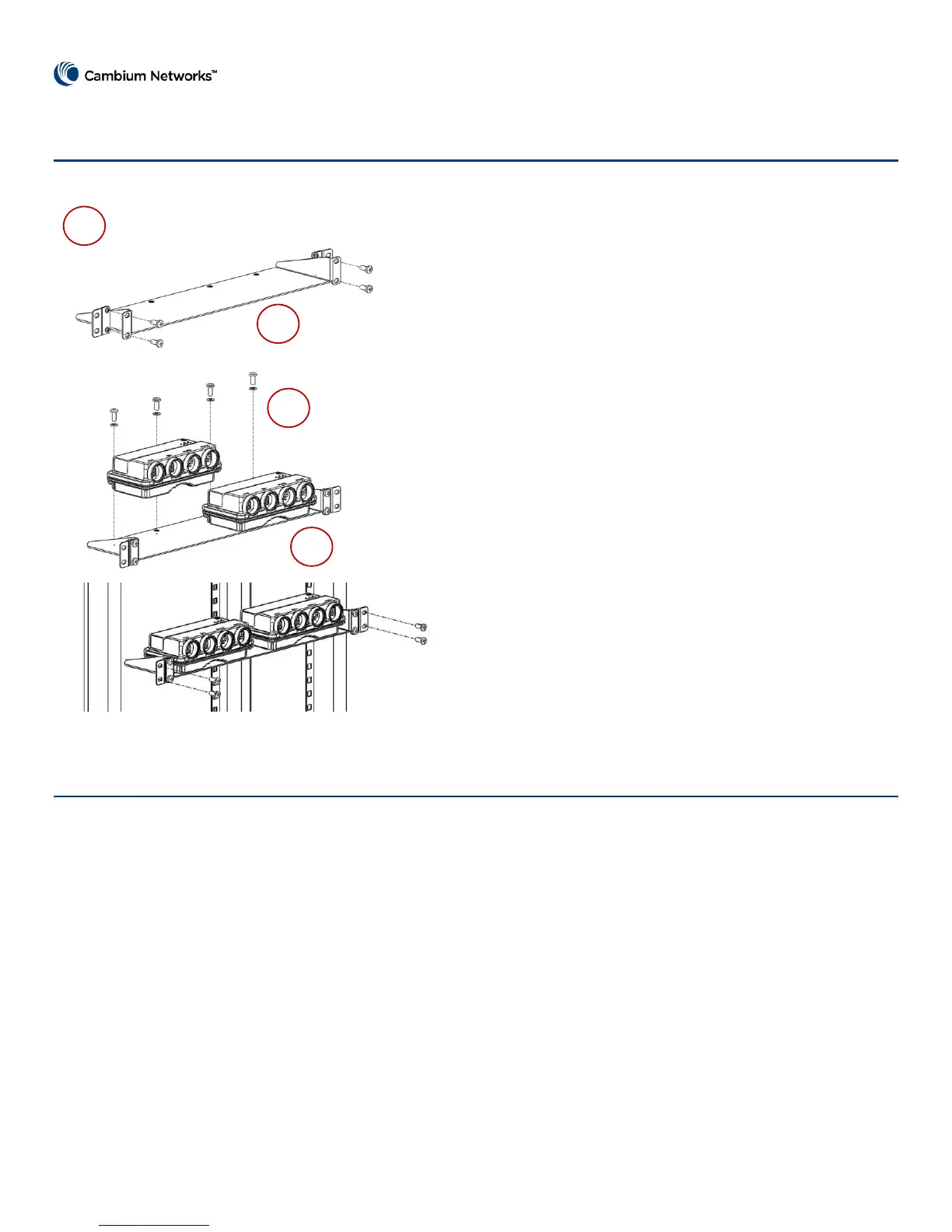

To mount a PoE Injector on an ETSI rack
Mount the PoE Injector to an ETSI
rack using a 19" rack adaptor and
ETSI adapting ears.
1
3
Mount the PoE Injector
on the adaptor through
the wall mounting holes,
using M6 screws and
washers.
4
2
Connect ETSI adapting
ears to a 19" rack adaptor
using four M6 screws.
Mount the 19" rack
adaptor with the ETSI
ears on the ETSI rack
using four M6 screws
and cage nuts.
To ground a PoE Injector
1. On the right side of the PoE Injector, loosen the screw, plain washer, and serrated washer.
2. Place the cable lug supplied with the PoE Injector kit between the plain and serrated washer.
3. Tighten the screw.
