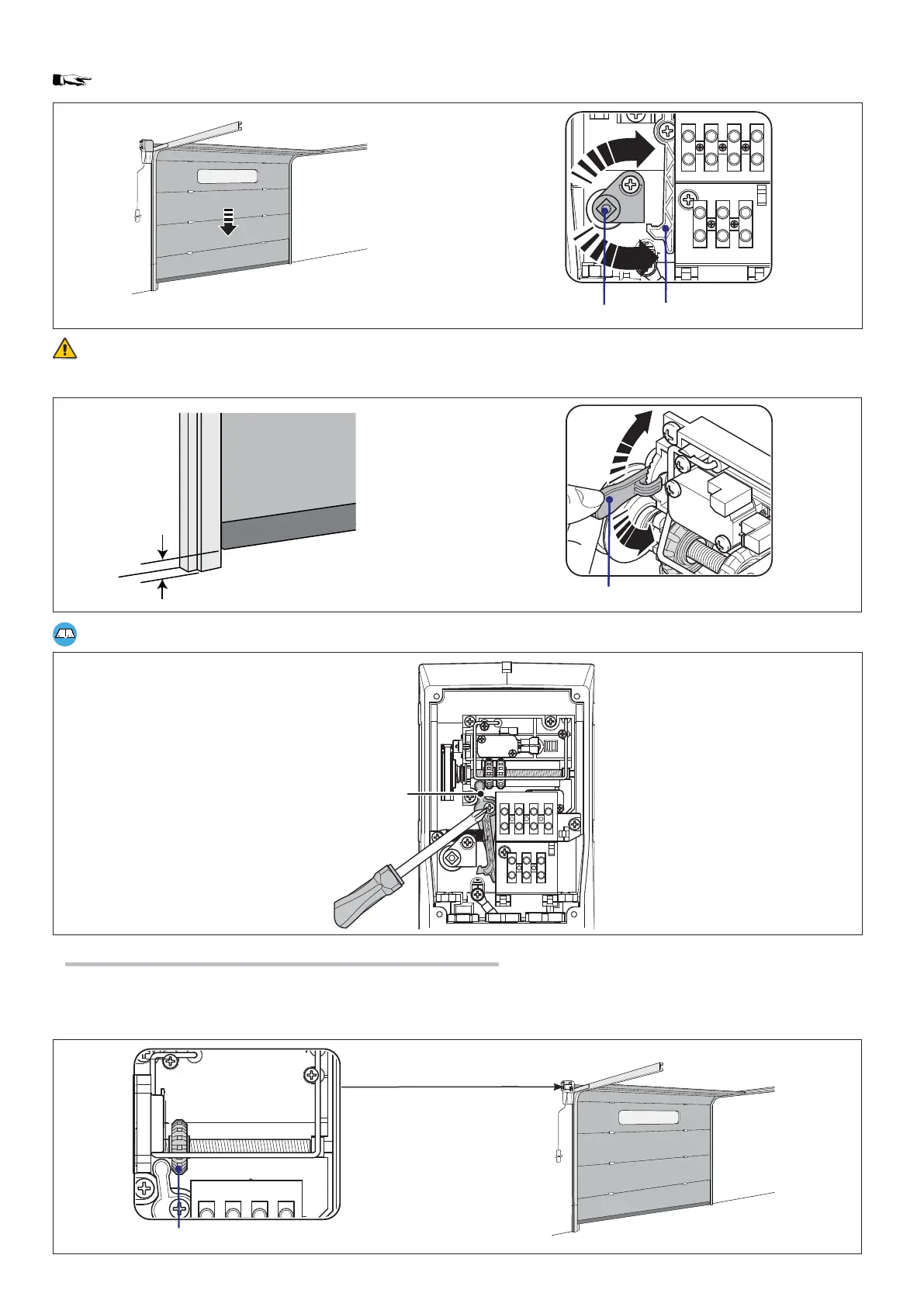

Safety leverRelease rod
Micrometric lever
Safety lever
Corona dentata
Fully close the door and make sure that the release rod is free of the safety lever.
the safety lever lets you activate the (CMS or C002) emergency release only when the door is closed.
For large, sectional doors, after making the adjustments, there may be an empty space between the lower part of the door and the ground.
To correct this, shift the micrometric lever up or down one notch to lower or raise the door by about one centimetre.
For gearmotors that are installed on large sliding and folding doors, remove the safety lever and relative spring.
Setting the endpoint lever (only for encoder-based models)
Before making any adjustments, perform the door-run calibration procedure, as described in the control panel’s technical literature. Once this
is complete, make sure the door is fully- closed and that the gearmotor’s cog wheel is positioned on the left.
Sollevare la molla di fi necorsa sganciandola dalla sta a di sostegno e abbassarla sopra la corona dentata.
