2
C009
C006
Page 9 - Manual FA01734-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
VERTICALLY APPLIED
HORIZONTALLY APPLIED
Rod
The following applications are only examples, in that the space needed for fixing the gearmotor and accessories varies depending on the
overall dimensions and so it is up to the installer to choose the most suitable solution.

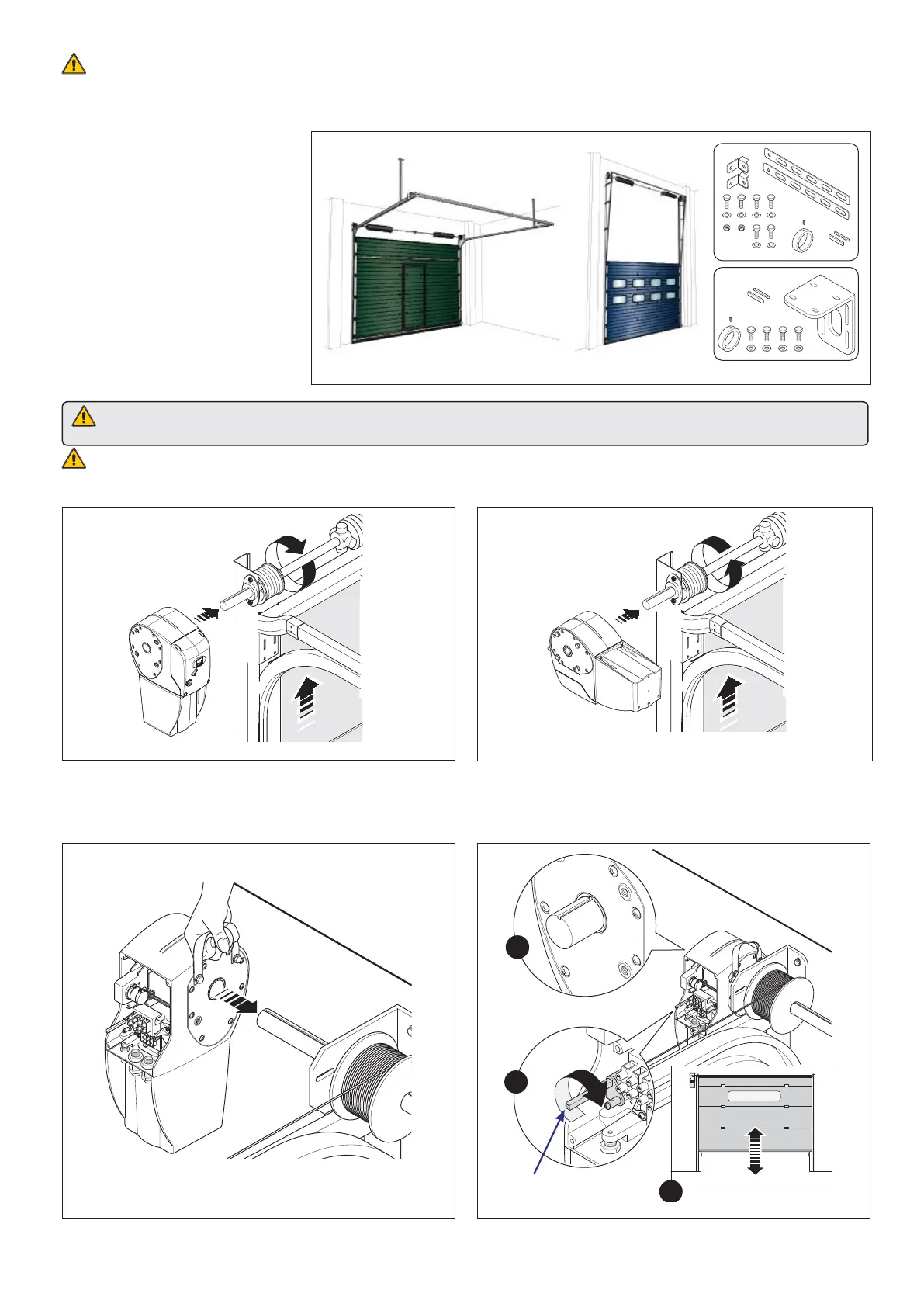

DIRECT COUPLING
The CBX gearmotor is made to be vertically inserted and directly coupled onto the 1 inch (25.4 mm) spring shaft. It can also be installed
horizontally. To do this, it requires the
proper complementary accessory (Art.
C006 or C009).di completamento (Art.
C006 o C009).
For the following gearmotors only: CBXE, CBXEK, C-BXET and C-BXE24, before inserting the motor into the post, move the door
halfway along its run.
Before inserting the gearmotor onto the shaft, open the door and check the direction of rotation of the cable winch-barrel. Insert the
gearmotor vertically or horizontally depending on the direction of rotation. (see diagram).
1) insert the gearmotor onto the spring shaft using the handle.
2) Manually release the gearmotor using the rod in a clockwise
direction and move the door so that the spring-shaft cavity coincides
with that of the gearmotor’s cable.
