Cameo CLPHANTOM5 - Introduction; Connections, Control and Display Elements

5
DMX
DEUTSCHFRANCAIS
ESPAÑOL
ENGLISH
ITALIANO POLSKI
BLACK
PANTONE 429 C
SERIAL NR.
Cameo® is a registered brand of the Adam Hall Group
Adam-Hall-Str. 1 · 61267 Neu-Anspach · Germany
DESIGNED AND ENGINEERED IN GERMANY. Assembled in PRC
POWER IN : AC 230 V 50 Hz
POWER CONSUMPTION: 1450 W
WEIGHT: 7.9 Kg
POWER
REMOTE DMX OUT DMX IN
FUSE F8A / 250 V
MODE ENTER UP DOWN
PHANTOM F5 PHANTOM F5
3
7
8
4 6 5
1 2
9

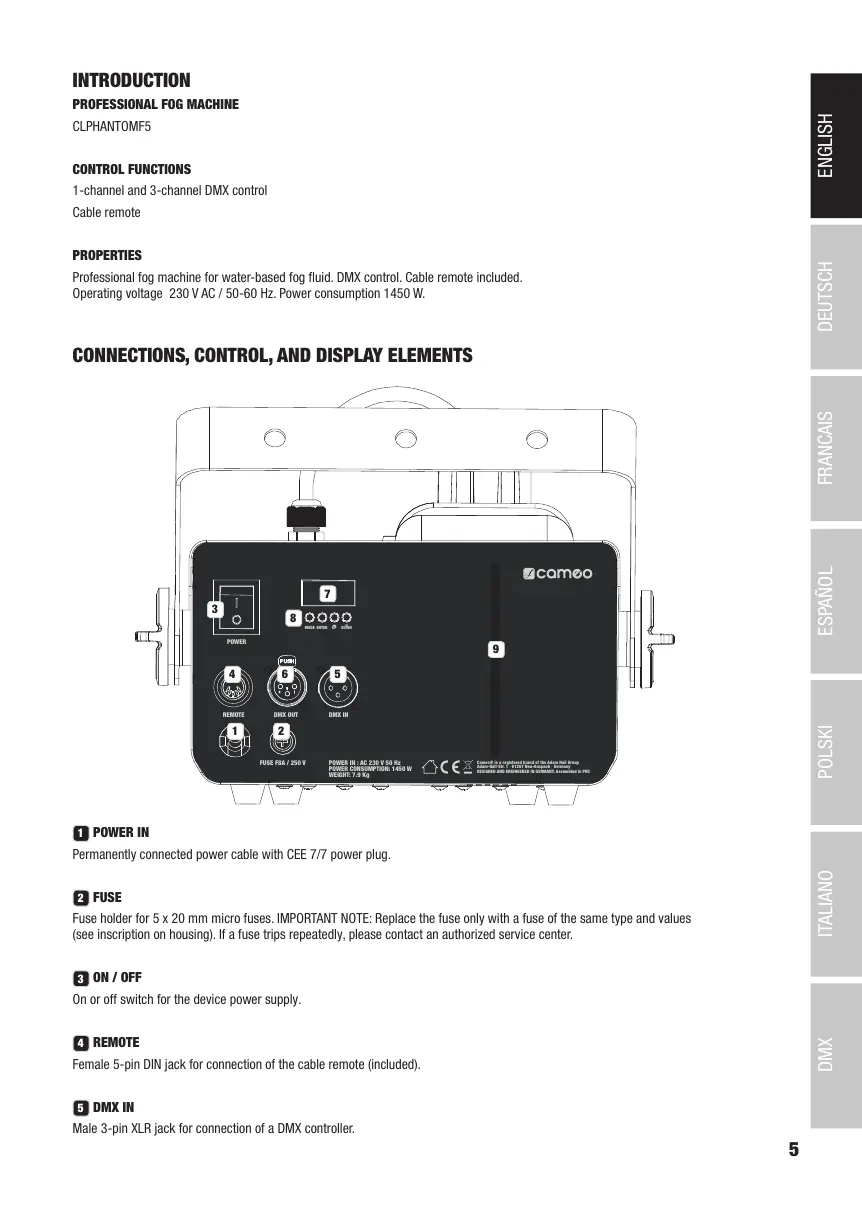

INTRODUCTION
PROFESSIONAL FOG MACHINE
CLPHANTOMF5
CONTROL FUNCTIONS
1-channel and 3-channel DMX control
Cable remote
PROPERTIES
Professional fog machine for water-based fog fluid. DMX control. Cable remote included.
Operating voltage 230 V AC / 50-60 Hz. Power consumption 1450 W.
CONNECTIONS, CONTROL, AND DISPLAY ELEMENTS
1
POWER IN
Permanently connected power cable with CEE 7/7 power plug.
2
FUSE
Fuse holder for 5 x 20 mm micro fuses. IMPORTANT NOTE: Replace the fuse only with a fuse of the same type and values
(see inscription on housing). If a fuse trips repeatedly, please contact an authorized service center.
3
ON / OFF
On or off switch for the device power supply.
4
REMOTE
Female 5-pin DIN jack for connection of the cable remote (included).
5
DMX IN
Male 3-pin XLR jack for connection of a DMX controller.
