Article number: CLPHANTOMF5
Product type: Fog machine
Type: Fog generator per vaporization principle
Heat-up time: Approx. 4 minutes
Heating element power: 1400 W
Output volume: Approx. 240 m³/min
Fog output range: Approx. 5-6 m
Output duration: Approx. 8-12 s
Reheating time: Approx. 15 s
Fluid consumption: Approx. 90 ml/min
Canister volume: 1.8 l
Controller: DMX512, cable remote with 10 m cable
DMX input: 3-pin XLR, male
DMX output: 3-pin XLR, female
DMX mode: 1-channel, 3-channel
DMX functions: Fog output, timer interval, timer duration
System settings: Dark mode on / off (display and canister illumination on / off)
Connection for cable remote: 5-pin DIN, female
Cable remote functions: Timer (interval, duration, volume), continuous fog output, manual fog output
Cable remote display elements: Fog machine ready for use (green LED), continuous fog output (red LED),
timer function (yellow LED)
Display elements: 4-digit LED display
Power supply connection: Permanently connected power cable with CEE 7/7 power plug
Operating voltage: 230 V AC / 50 – 60 Hz
Fuse: F8AL 250 V (5x20 mm)
Power consumption: 1450 W
Ambient temperature (running): 5 °C – 40 °C
Relative humidity: < 85 %, non-condensing
Housing material: Metal
Housing color: Bi-color black / gray
Dimensions (W x H x D): 250 x 150 x 420 mm
Weight (without canister): 7.9 kg
Accessories (included): 4 rubber feet. Canister and cable remote included.

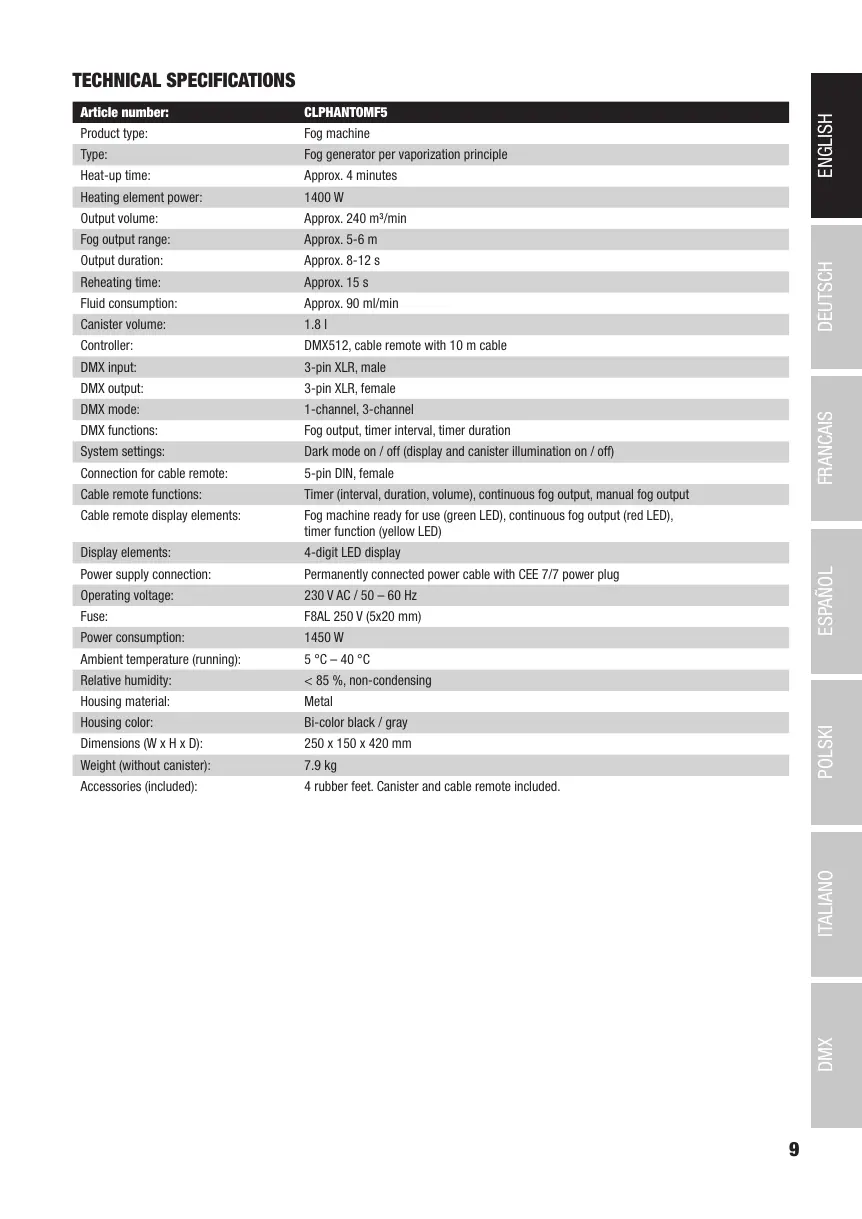

TECHNICAL SPECIFICATIONS
