3.0 Unpacking and Assembly

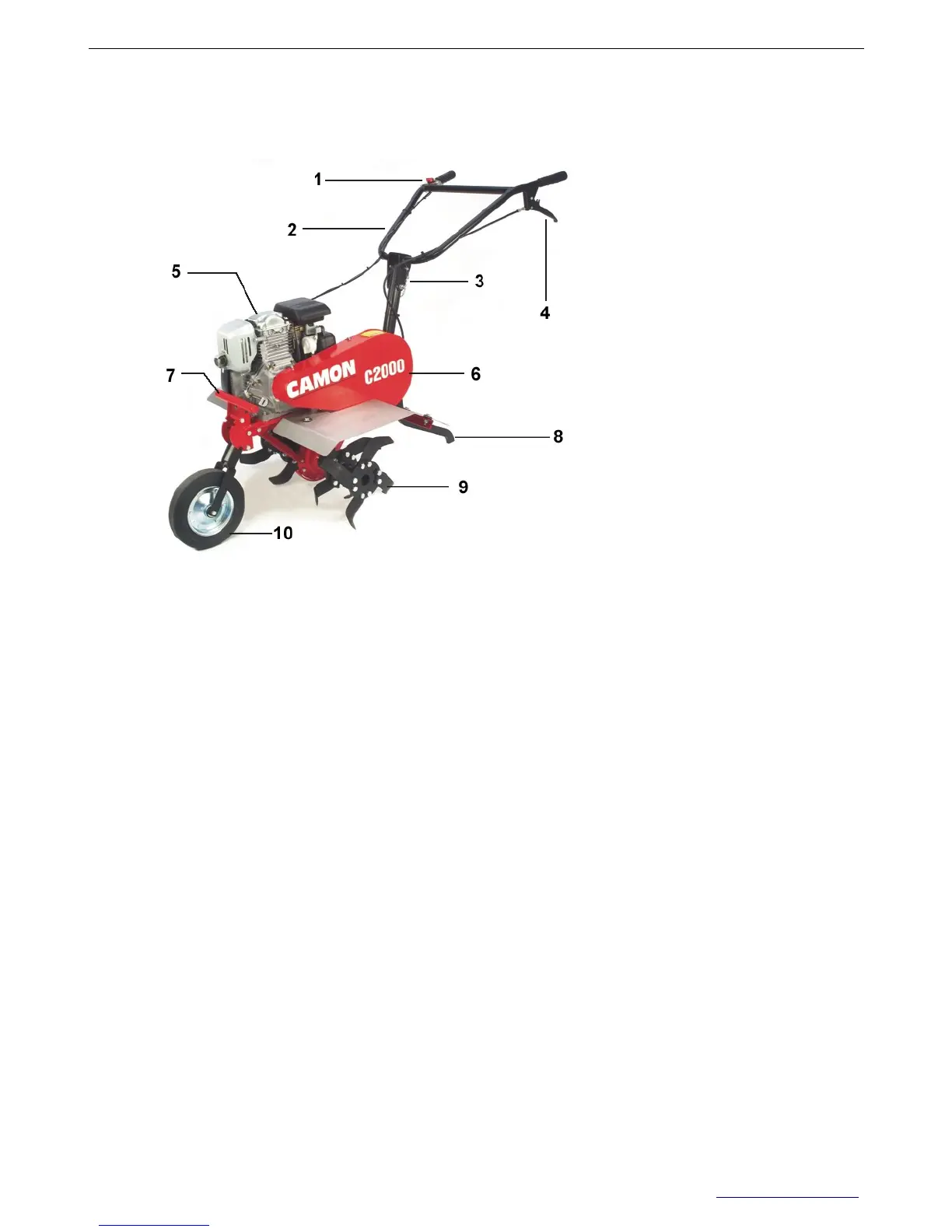

3.1 Major Components Diagram
1 Engine On/Off Switch
2 Top Handlebar
3 Handlebar Pin & R-Clip
4 Operating Lever
5 Engine
6 Belt Guard
7 Lifting Handle
8 Drag Bar
9 Digging Tines
10 Transport Wheel
3.2 Unpacking Instructions
Open the top of cardboard box.
Cut the box open by using a sharp knife to cut down through the four corners of the box.
Swivel the folded top handle bar until the holes at the bottom of the top handlebar are over
the locating hole on the bottom handlebar.
Insert the pin located on a chain to fix handlebars into position. Secure the pin with R-Clip.
Push the machine forward safely and gently out of the box.
Dispose of the cardboard box and other padding material.
