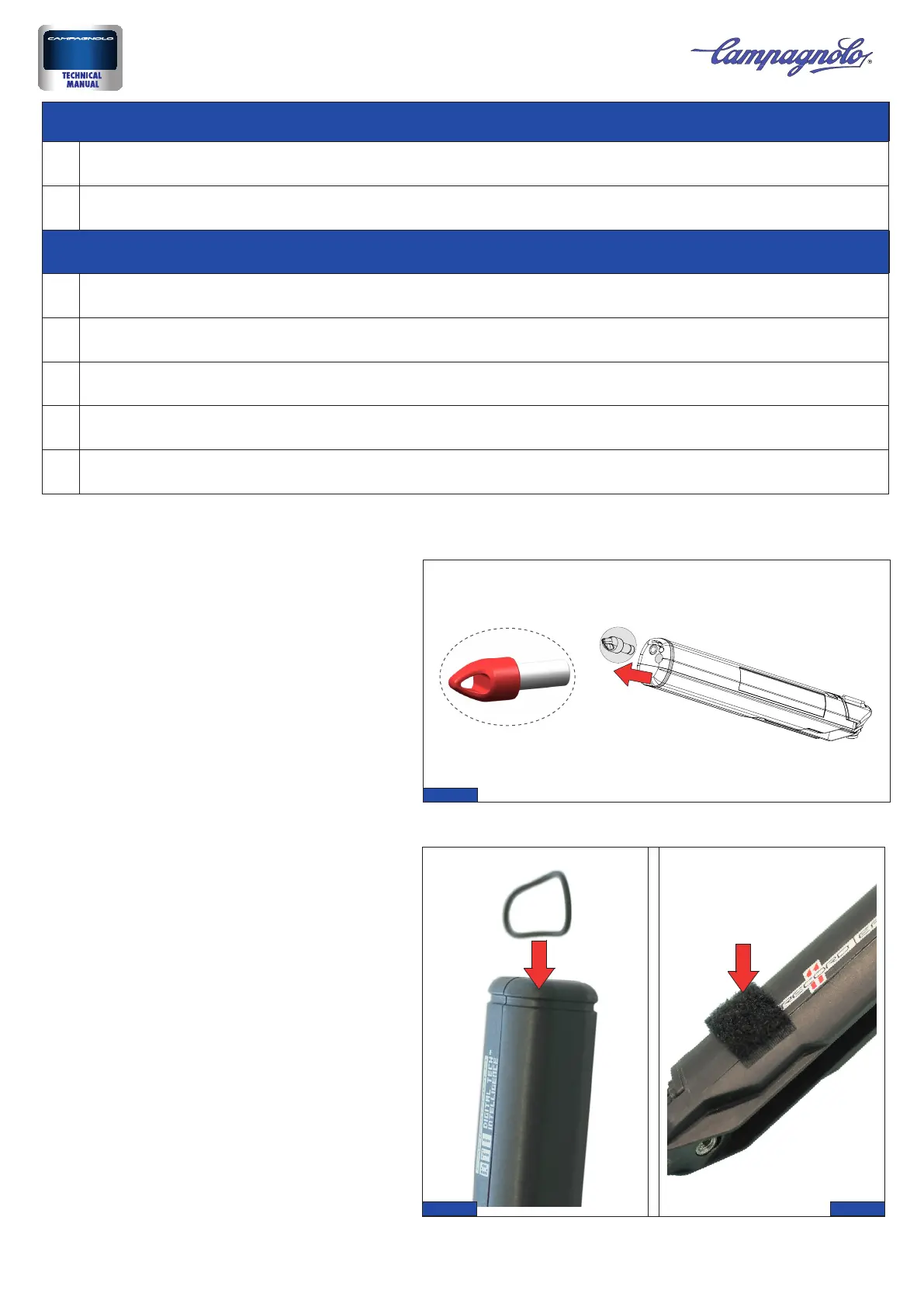

1) Ease the power-off magnet out of the power unit
(Fig. 2).
TOOLS AND ACCESSORIES:
• Cable guide magnet kit SR-RE EPS
• Cable guide magnet kit ATH EPS
OPTIONS AVAILABLE:
• Charging cable extension for EPS V2 Power Unit
• Cable extension for EPS PU installation under the seat (Super Record/Record version)
• Cable extension for EPS PU installation under the seat (Chorus/Athena version)
• Cable extension for EPS PU installation under the seat (Super Record/Record version)
• Cable extension for EPS PU installation under BB (Chorus/Athena version)
2) Fit the noise reducing O-ring provided with the po-
wer unit in the upper cavity (Fig. 3) on the power unit
itself and make the noise reducing spacer adhere on
the lower area of the power unit (Fig. 4).
EPS
43
2
