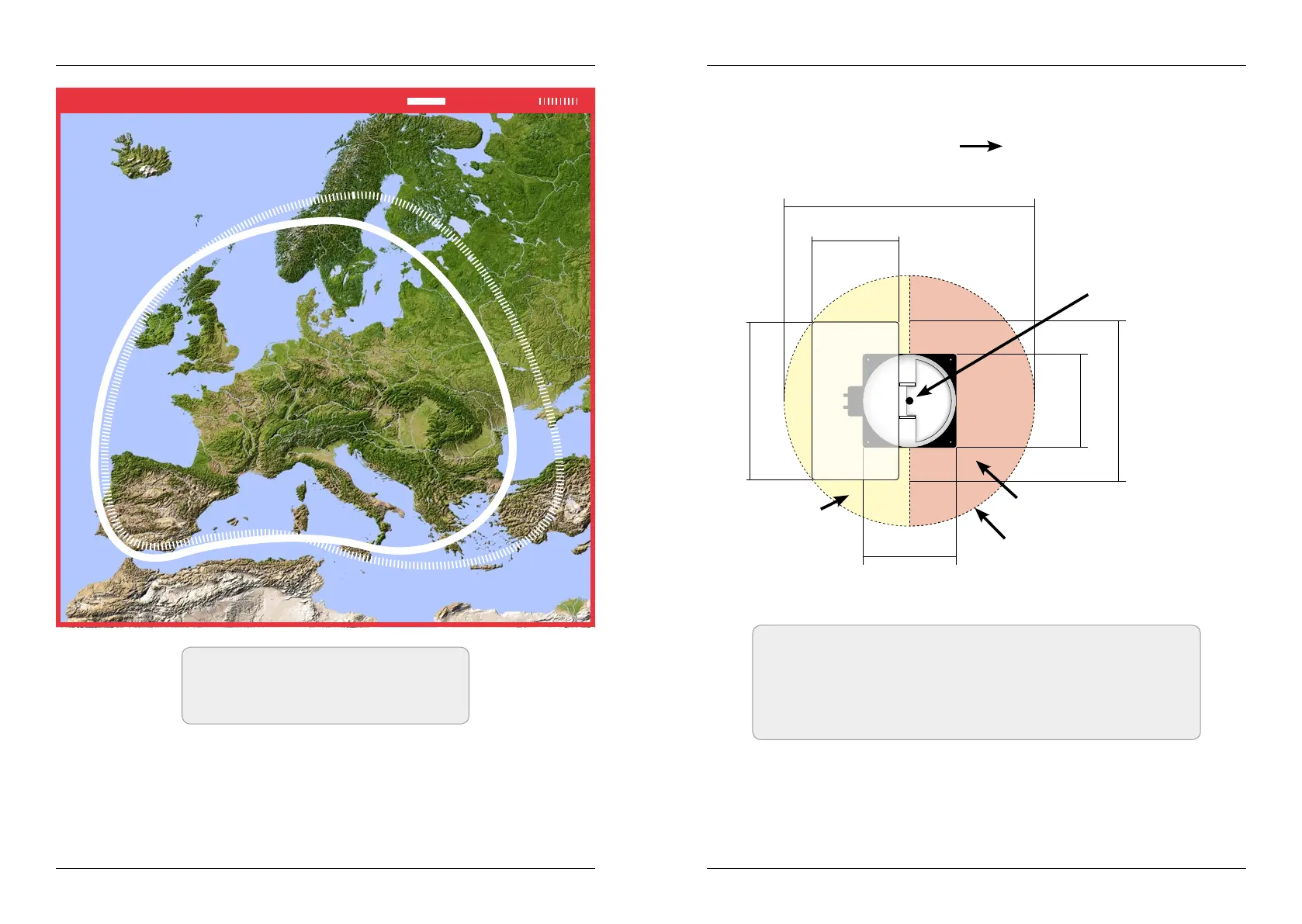

7. Foot print
8. Mounting dimensions
Note:
In the outlying areas of the footprint there
may be interference.
Note:
At the front of the antenna, superstructures with a height of max. 14
cm without disturbing the rotation of the receiving unit (see red area
of the graphic). In the yellow area no superstructures may be present.
Direction of travel
29 cm
31 cm
Max. pivoting range
Superstructures up to
max. 14 cm
No
Superstruc-
tures
83 cm
31 cm
52,5 cm
53 cm
Pivot point
