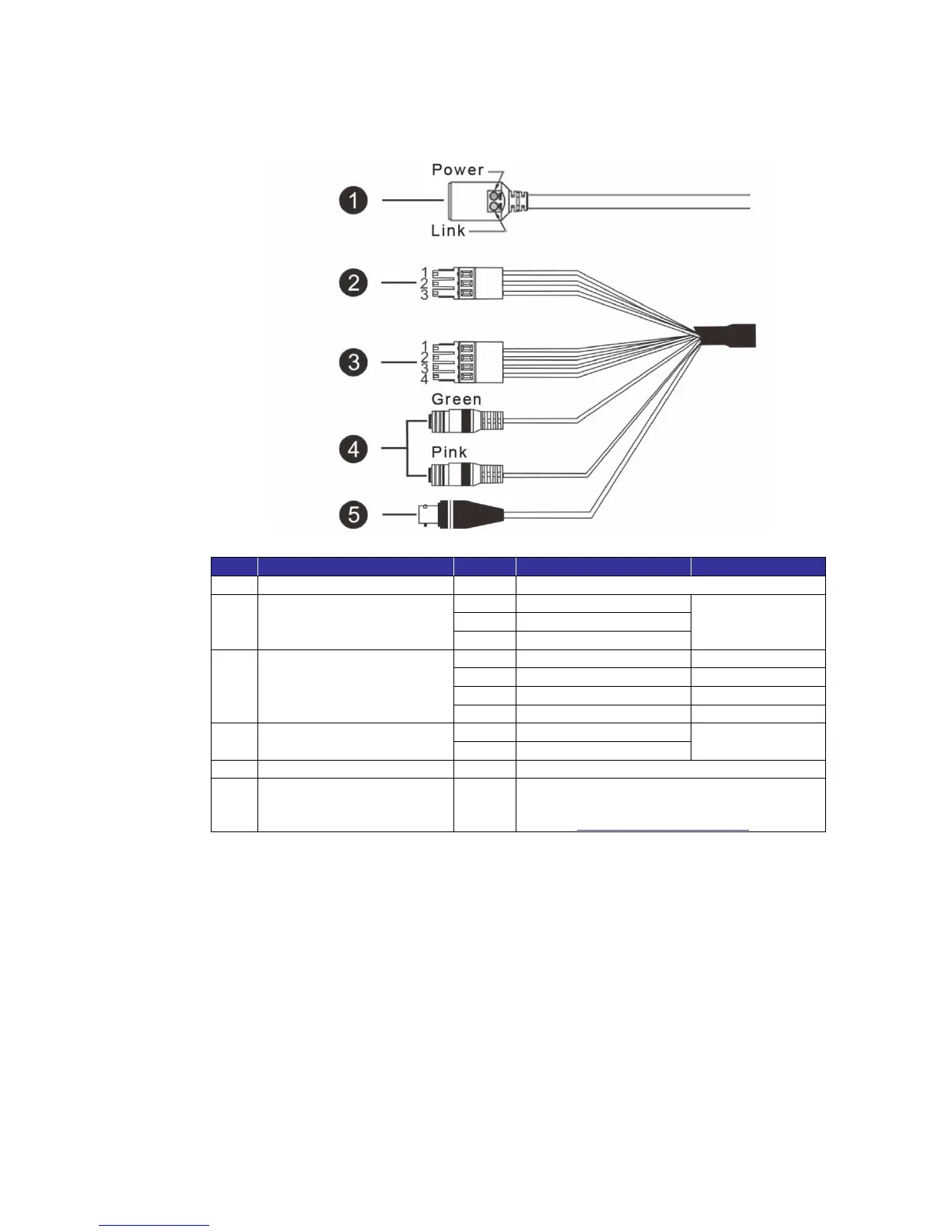

1.5 Function Cables Definition (Outdoor Only)
No.
Connector
Pin
Definition
Remarks
1
RJ-45
-
10/100 Mbps Ethernet / PoE
2
Power (AC 24V / DC 12V)
1
AC 24V 1 / DC 12V –
Power
connection
2
GND
3
AC 24V 2 / DC 12V +
3
Alarm I/O
(4-Pin Terminal Block)
1
Alarm In –
Blue
2
Alarm In +
Green
3
Alarm Out –
Yellow
4
Alarm Out +
Orange
4
Audio I/O
Green
Line Out
Two-way audio
transmission
Pink
Line In
5
BNC
-
For analog videos output
-
Default Button
-
For the position of the default button,
please refer to the diagram shown in
section Connectors (Indoor Only).
