Ultra High Resolution Color Camera
11
Ultra High Resolution Color Camera

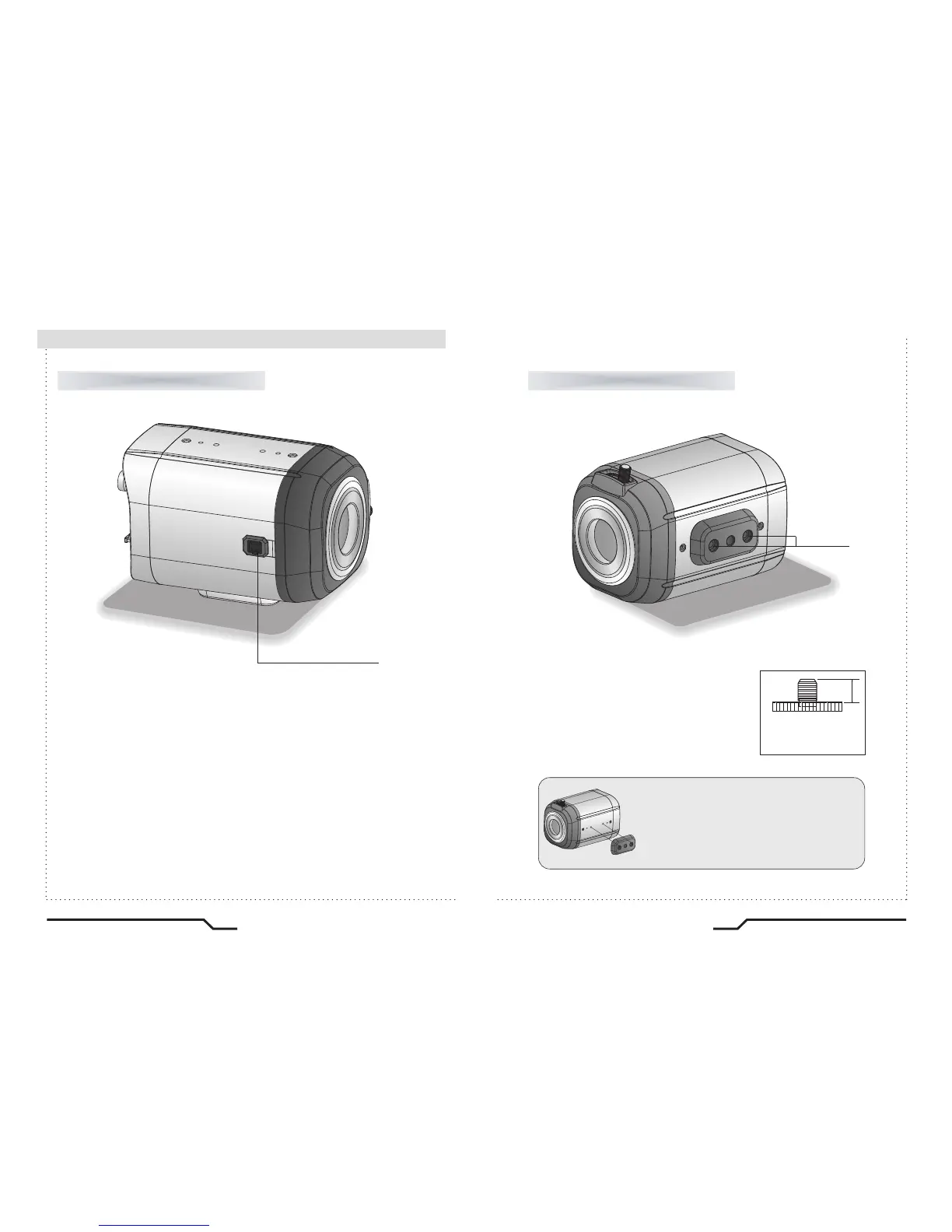

⑤ Tripod Mounting Bracket Screw Hole
Used to fix the camera onto a bracket or tripod.
The screw sizes for this hole are as follows:
④ Auto Iris Lens Connector
Used to connect Auto Iris Lens plug.
The Tripod Mounting Bracket can be unscrewed and
installed on the top or bottom of the camera.
Make sure to use the Tripod Mounting Bracket when
fixing the camera to a bracket or tripod, otherwise the
camera may be unstable and the internal circuitry of
the camera may get damaged.
Side View Bottom View
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
L
④
⑤
■
